Model # BXHF1201

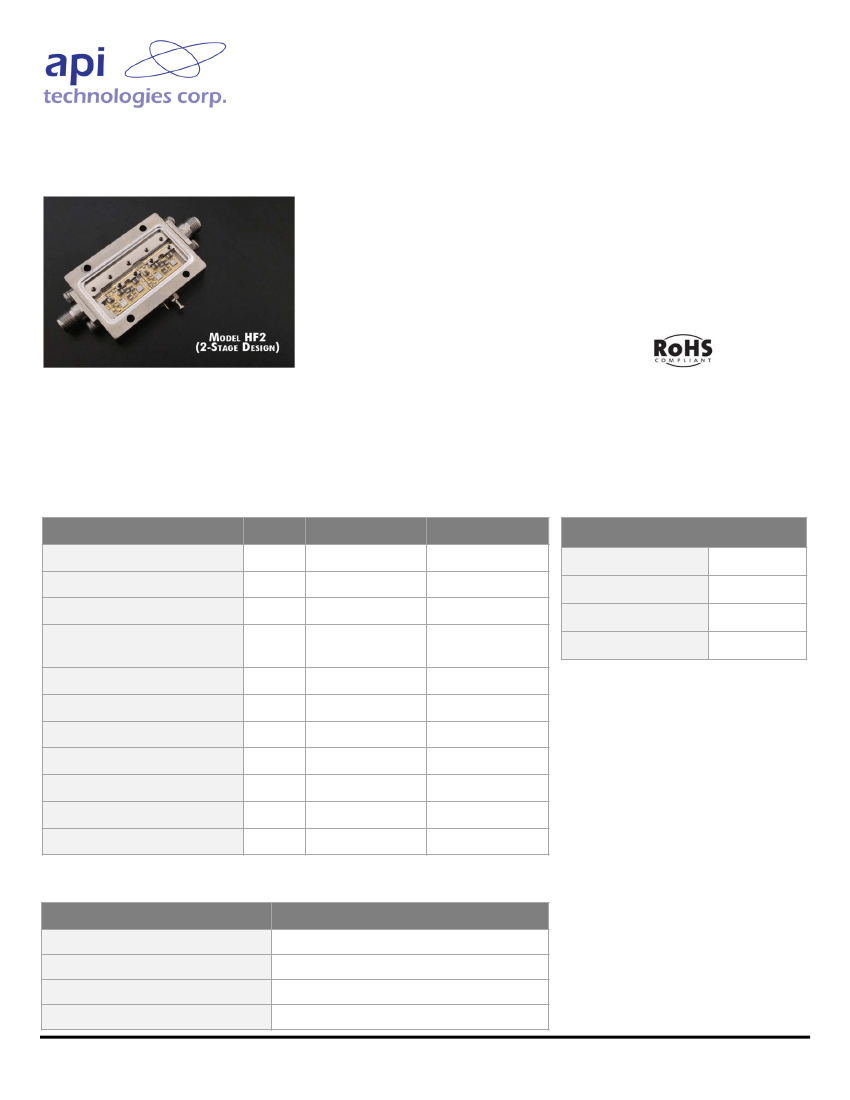

High Frequency Microwave Amplifier
Frequency Range: 10-18 GHz
Features
•
High Frequency and Broad Bandwidth: 10-18 GHz
•
High Output Power: +26 dBm Typical
•
Laser Welded Housing for Ultimate Environmental Protection
•
Internal Voltage Regulator
•
RoHS Compliant Option: Model BXHF1201LF
Model BXHF1201 is a high frequency amplifier covering 10-18 GHz. This design utilizes a laser sealed housing
for superior environmental protection. This standard design may also be ordered in a screened MIL-STD-883
version (Model #SXHF1201.) All specification ratings are based on measurements in a 50 Ω (ohm) system with
a DC supply voltage tolerance of +/- 2%.
Technical Specifications
Parameter
Frequency Range
Gain
Noise Figure
Output Power @ 1 dB
Compression
Output 3
rd
Order Intercept
Output 2
nd
Order Intercept
Reverse Isolation
Input VSWR
Output VSWR
Supply Voltage
Supply Current
Unit
GHz
dB
dB
dBm
dBm
dBm
dB
---
---
volts
mA
Typical
10-18
11
4.0
+26
35
55
35
1.5:1
1.5:1
+12 to +15
370
Min/Max
10-18
10
6.0
-
-
-
-
2.0:1
2.0:1
+12 to +15
400
Maximum Ratings
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature
DC Voltage @ 25°C
Input Drive @ 25°C (CW)
•
-55°C to +85°C
-40°C to +85°C
+18 volts
+13 dBm
Typical values are measured at 25°C,
but not guaranteed.
Intercept values are measured at
midband frequencies.
•
Mechanical & Electrical
Parameter
Specification Temperatures (Min/Max)
Housing Size
Housing Drawing
RF Connectors
Rev Date: 1/7/2015
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Specification
-20°C to +70°C
1.500” L x 1.060” W x 0.300” H
HF2 Package
SMA Female Replaceable Connectors
Page # 1
MicrowaveSales@apitech.com
Model # BXHF1201

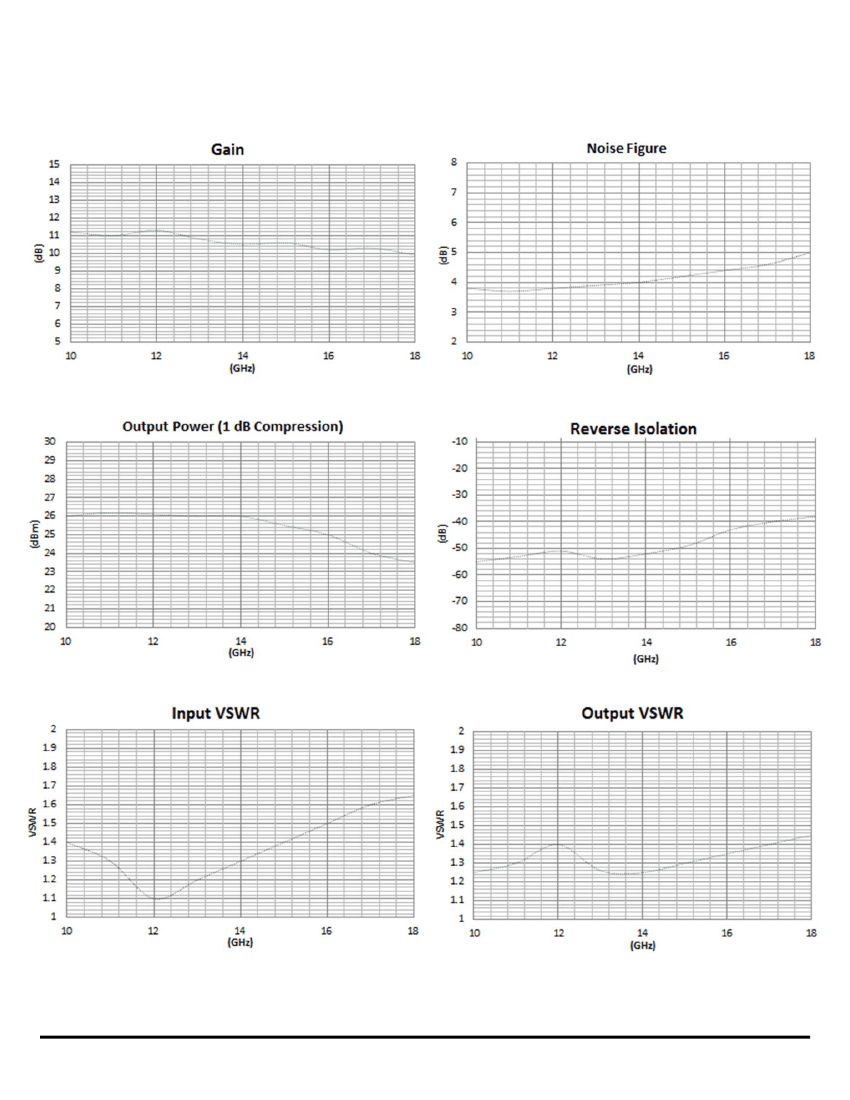

Typical Performance Graphs
Rev Date: 1/7/2015
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Page # 2
MicrowaveSales@apitech.com
Model # BXHF1201
Instructions
Grounding Instructions
Revisions
Min./Max. Values
Care should be taken to effectively ground each unit.
API reserves the right to make revisions to both product and/or the information contained within their
datasheets without advanced notice.
Specifications are guaranteed when tested in a 50 Ω (ohm) system.
Typical performance graphs and values are measured at 25°C, but not guaranteed.

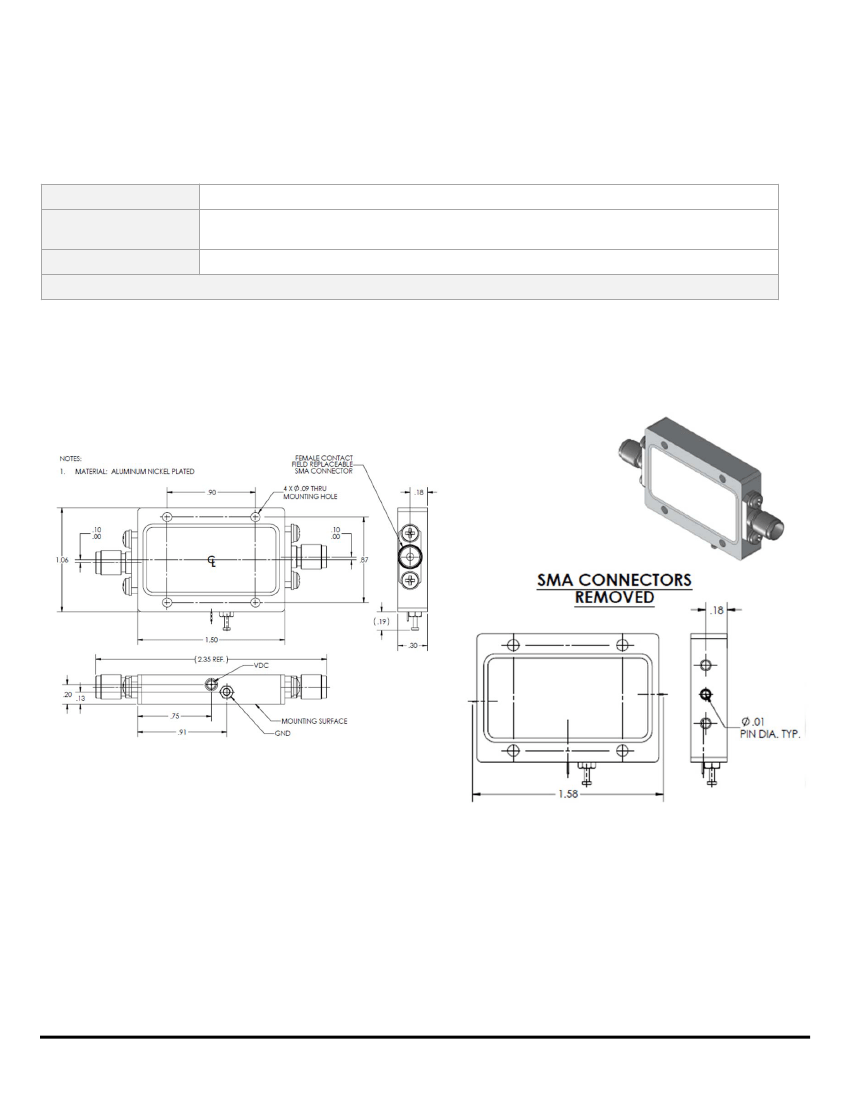

Outline Drawing
Rev Date: 1/7/2015
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Page # 3
MicrowaveSales@apitech.com
