CLE-132-01-G-DV-A-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> CLE-132-01-G-DV-A-TR

CLE-132-01-G-DV-A-TR: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size174KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CLE-132-01-G-DV-A-TR Overview

Board Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

CLE-132-01-G-DV-A-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	64 Position, 0.80 mm Tiger Beam™ Cost-effective Single Beam Socket Strip
Other features	TAPE & REEL PACKAGING
Board mount options	POSITIONING PIN
body width	0.125 inch
subject depth	0.123 inch
body length	1.008 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	375VAC V
Durability	100 Cycles
maximum insertion force	.556 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	CLE
Plug contact pitch	0.031 inch
Match contact row spacing	0.047 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9624 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Evacuation force-minimum value	.3336 N

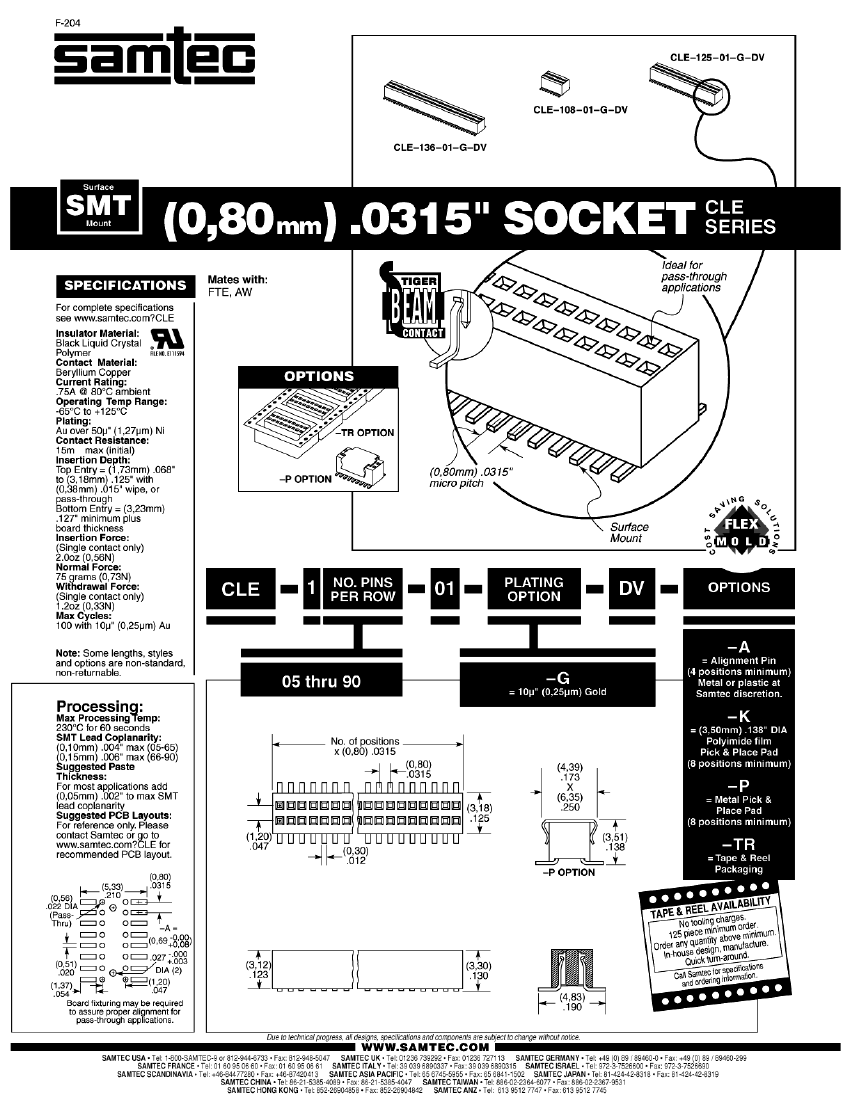

Preview

Download Datasheet

View All

CLE-132-01-G-DV-A-TR Related Products

	CLE-132-01-G-DV-A-TR	CLE-131-01-G-DV-K-TR	CLE-170-01-G-DV-P-TR	CLE-131-01-G-DV-P-TR	CLE-131-01-G-DV-A-TR	CLE-171-01-G-DV-A-K	CLE-171-01-G-DV-A-K-TR
Description	Board Connector, 64 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 142 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug	Board Connector, 142 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Black Insulator, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TAPE & REEL PACKAGING	PICK&PLACE PAD, TAPE&REEL PKG	M.PICK&PLACE PAD,TAPE&REEL PKG	M.PICK&PLACE PAD,TAPE&REEL PKG	TAPE & REEL PACKAGING	PICK & PLACE PAD	PICK&PLACE PAD, TAPE&REEL PKG
body width	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
subject depth	0.123 inch	0.123 inch	0.123 inch	0.123 inch	0.123 inch	0.123 inch	0.123 inch
body length	1.008 inch	0.976 inch	2.205 inch	0.976 inch	0.976 inch	2.236 inch	2.236 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	375VAC V	375VAC V	375VAC V	375VAC V	375VAC V	375VAC V	375VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles
maximum insertion force	.556 N	.556 N	.556 N	.556 N	.556 N	.556 N	.556 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	CLE	CLE	CLE	CLE	CLE	CLE	CLE
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Match contact row spacing	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch	0.047 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A	0.75 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	64	62	140	62	62	142	142
Evacuation force-minimum value	.3336 N	.3336 N	.3336 N	.3336 N	.3336 N	.3336 N	.3336 N
Maker	SAMTEC	-	-	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Samacsys Description	64 Position, 0.80 mm Tiger Beam™ Cost-effective Single Beam Socket Strip	-	-	62 Position, 0.80 mm Tiger Beam™ Cost-effective Single Beam Socket Strip	62 Position, 0.80 mm Tiger Beam™ Cost-effective Single Beam Socket Strip	142 Position, 0.80 mm Tiger Beam™ Cost-effective Single Beam Socket Strip	-
Board mount options	POSITIONING PIN	-	-	-	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN
