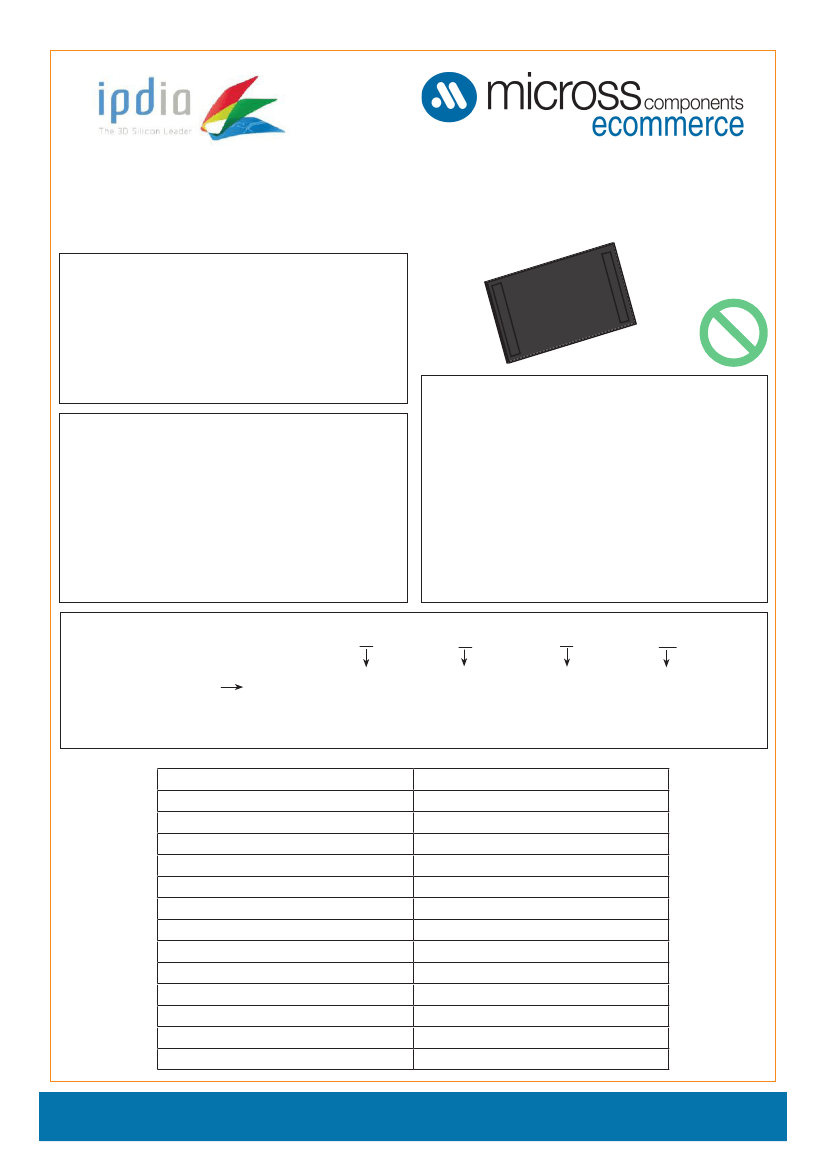

High Stability & Reliability
Capacitor
The IPDiA Technology offers industry leading performances
relative to failure rate with a FIT<0.017. This technology also
offers high reliability, up to 10 times better than alternative
capacitor technologies & eliminates cracking phenomena.
This silicon based technology is RoHS compliant and
compatible with lead free reflow soldering process.
HSSC0402 100nF
935.131.424.610
Pb
Key Features
• High Stability up to 200°C;
• Temperature <±0.5% (-55 to +150°C)
• Voltage < 0.1 % / V
• Negligible Ageing < 0.001% / 1000hours
• Unique High Capacitance in EIA/1005 Package Size, up to
1.5nF
• High Reliability (FIT < 0.017 parts / billion hours)
• Low Leakage Current down to 100pA
• Low ESL and Low ESR
• Suitable with Lead Free Reflow-Soldering
Key Applications
• All Demanding Applications such as Military, Aerospace,
Automotive Industry
• High Stability Applications
• Decoupling / Filtering / Charge Pump (ie. Pacemakers /
Defibrillators)
• Devices with Battery Operations
• Replacement of X7R and NP0
• Downsizing
Part Number
935.132.
935.131.422.415
B. 2
Breakdown
Voltage:
4 = 11V
7 = 30V
S.
Size:
2 = 1005
3 = 0201
4 = 0402
U.
Unit:
0 = 10f
1 = 0.1p
2 = 1p
3 = 10p
4 = 0.1n
5 = 1n
6 = 10n
7 = 0.1u
8 = 1u
9 = 10u
xx
Value
ie. 1.5nF/0201 case (HSSC type)
Parameters
Capacitance Range 1.5nF
Capacitance Tolerances ±15%
Operating Temperature Range -55°C to 150°C
Storage Temperatures -70°C to 165°C
Value
Temperature Coefficient <±0.5%, from -55°C to +150°C
Breakdown Voltage (BV) 11VDC
Capacitance Variation Vs. RVDC 0.1%
IV
(from 0 V to RVDC)
Equivalent Serial Inductor (ESL) Max 100pH
Equivalent Serial Resistor (ESR) Max 200mΩ
Insulation Resistance 100GΩ min @ 3V, from -55°C to +150°C
Ageing Negligible, < 0.001% / 1000h
Reliability FIT < 0.017 parts / billion hours
Capacitor Height Max 400µm
2 & 4 Hellesdon Park Road, Norwich, Norfolk, NR6 5DR
+44 (0)1603 788967
chipcomponents@micross.com
www.micross.com
