CD74HC4066M96 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> CD74HC4066M96

CD74HC4066M96: DescriptionSPST, 4 Func, CMOS, PDSO14,; CategoryAnalog mixed-signal IC The signal circuit; File Size159KB，3 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD74HC4066M96 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HC4066M96	-	-	View	Buy Now

CD74HC4066M96 Overview

SPST, 4 Func, CMOS, PDSO14,

CD74HC4066M96 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
normal position	NO
Number of functions	4
Number of terminals	14
Maximum on-state resistance (Ron)	118 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/10 V
Certification status	Not Qualified
surface mount	YES
Maximum connection time	20 ns
switch	MAKE-BEFORE-BREAK
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

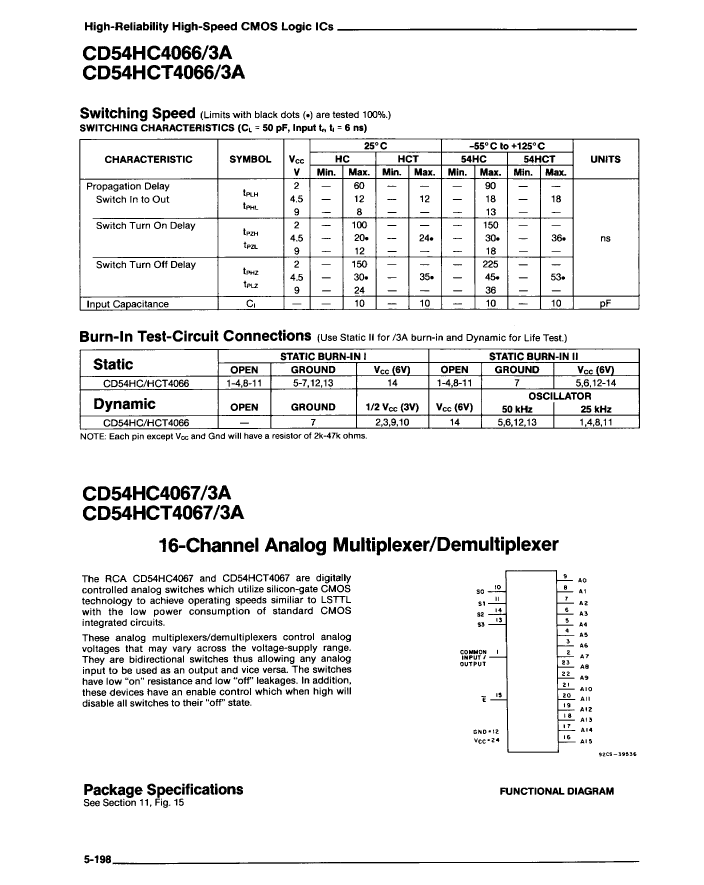

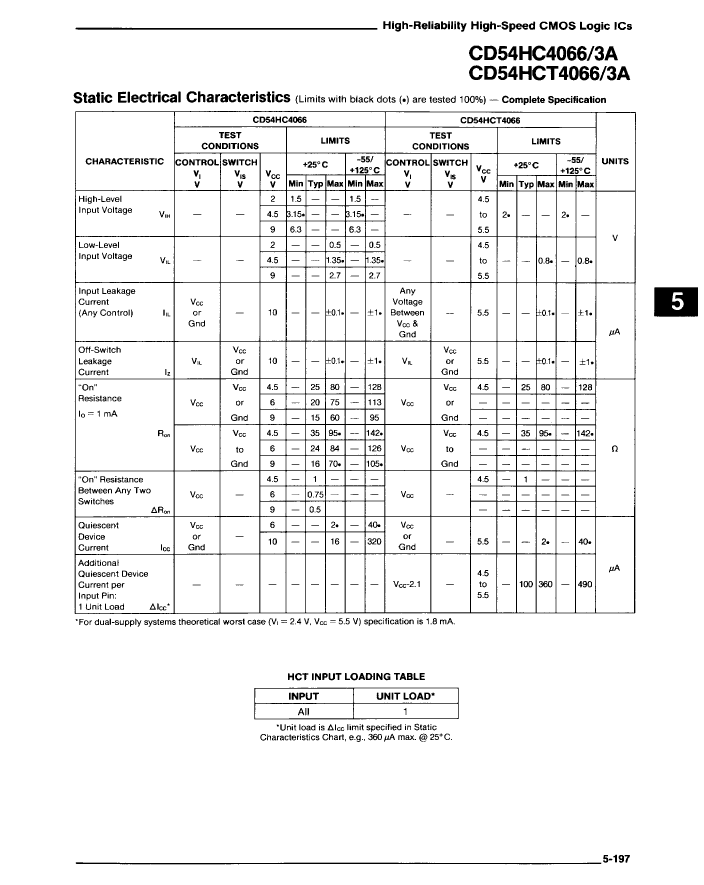

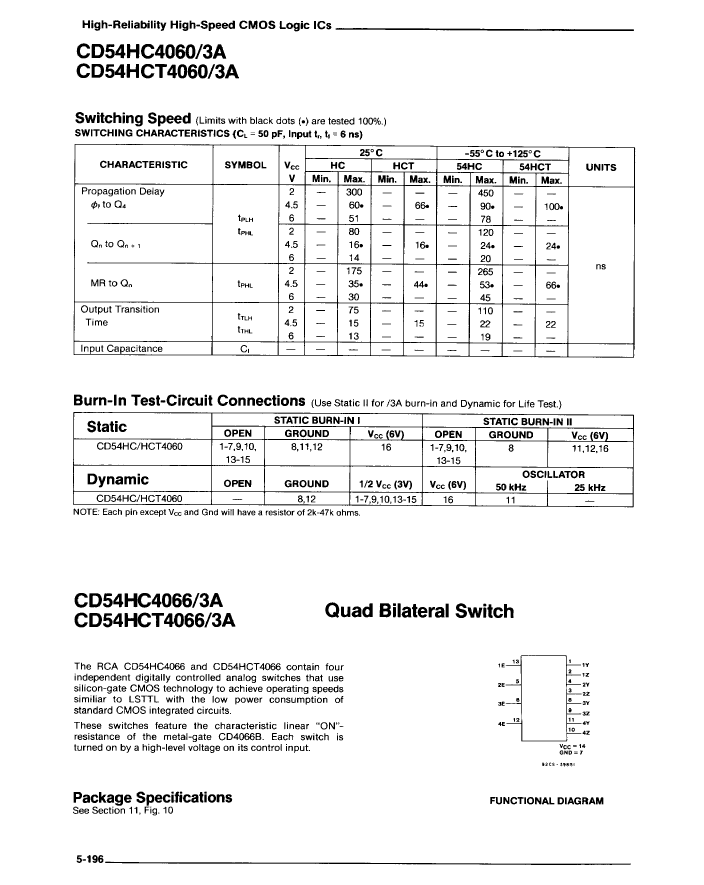

Preview

Download Datasheet

View All

CD74HC4066M96 Related Products

	CD74HC4066M96	CD74HCT4066H	CD54HC4066H	CD54HC4066F	CD54HC4066F/3A	CD74HC4066H	CD54HCT4066F
Description	SPST, 4 Func, CMOS, PDSO14,	SPST, 4 Func, CMOS,	SPST, 4 Func, CMOS,	SPST, 4 Func, CMOS, CDIP14,	SPST, 4 Func, CMOS, CDIP14,	SPST, 4 Func, CMOS,	SPST, 4 Func, CMOS, CDIP14,
package instruction	SOP, SOP14,.25	, DIE OR CHIP	, DIE OR CHIP	DIP, DIP14,.3	DIP, DIP14,.3	, DIE OR CHIP	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST	SPST
normal position	NO	NO	NO	NO	NO	NO	NO
Number of functions	4	4	4	4	4	4	4
Maximum on-state resistance (Ron)	118 Ω	118 Ω	142 Ω	142 Ω	142 Ω	118 Ω	142 Ω
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-10 °C	-55 °C	-55 °C	-40 °C	-55 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Encapsulate equivalent code	SOP14,.25	DIE OR CHIP	DIE OR CHIP	DIP14,.3	DIP14,.3	DIE OR CHIP	DIP14,.3
power supply	2/10 V	5 V	2/12 V	2/10 V	2/10 V	2/10 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum connection time	20 ns	24 ns	20 ns	20 ns	20 ns	20 ns	24 ns
switch	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	OTHER	MILITARY	MILITARY	INDUSTRIAL	MILITARY
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	-	incompatible
Maker	RCA	-	-	RCA	RCA	RCA	RCA
JESD-30 code	R-PDSO-G14	-	-	R-XDIP-T14	R-XDIP-T14	-	R-XDIP-T14
JESD-609 code	e0	-	-	e0	e0	-	e0
Number of terminals	14	-	-	14	14	-	14
Package body material	PLASTIC/EPOXY	-	-	CERAMIC	CERAMIC	-	CERAMIC
encapsulated code	SOP	-	-	DIP	DIP	-	DIP
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	-	IN-LINE	IN-LINE	-	IN-LINE
surface mount	YES	-	-	NO	NO	-	NO
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	-	-	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	1.27 mm	-	-	2.54 mm	2.54 mm	-	2.54 mm
Terminal location	DUAL	-	-	DUAL	DUAL	-	DUAL
