100100750002: DescriptionF06 MSpeed BlindMate 50 SMD; File Size128KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

100100750002 Overview

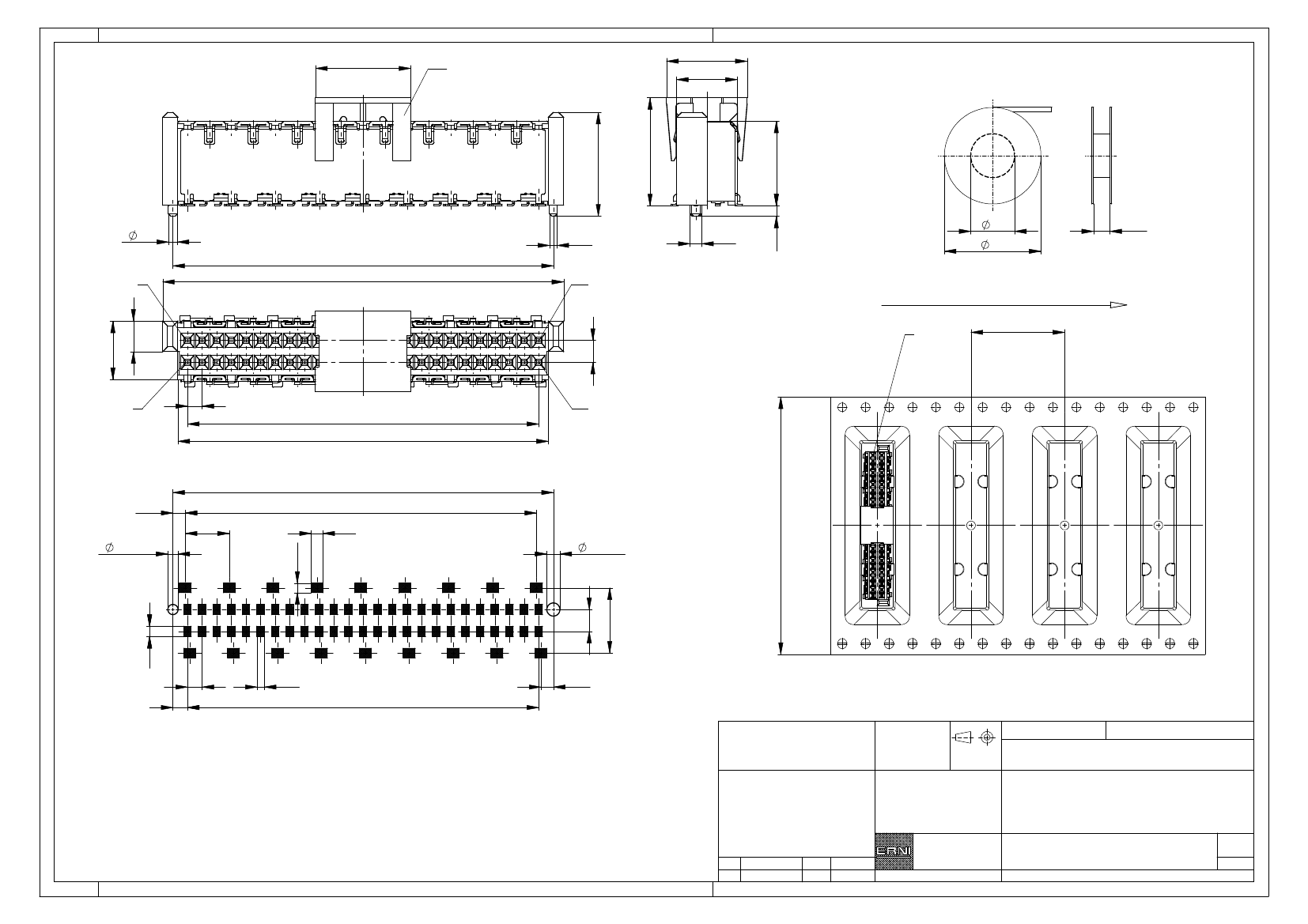

F06 MSpeed BlindMate 50 SMD

Preview

Download Datasheet

View All

6,5

Ansaughaube

5,5

4,15

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 400 Stück -

Packaging unit: 400 pcs

hood

7,4

5,8

7,1

150

0,5

27,4

0,8

0,7

0,6

330

56,5

b25

Abspulrichtung -

Reel off Direction

2,1

1,5

24 x 1 = 24

25,3

a25

Leiterplatten-Layout Vorschlag /

PCB-Layout Proposal

0,85

1.)

0,7

±0,03

0,65

8 x 3 = 24

0,8

1.)

0,9

±0,03

0,85

24 x 1 = 24

Proprietary notice pursuant to ISO 16016 to be observed.

0,7

0,5

Anforderungsstufe 1

4,45

1,5

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

Performance Level 1

1.) Durchmesser des Bohrers /

Drill tool

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6µm

Terminal Area 4-6µm tin plating

Koplanarität der Anschlüsse

≤

0,1mm

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

08.02.2012

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

F06 MSpeed BlindMate 50 SMD

Coplanarity Area of Termination

≤

0,1mm

www.ERNI.com

Class

100100750002

MSPEED
