100101530001: DescriptionMesserleiste10mm SMD, 50 polig; File Size108KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

100101530001 Overview

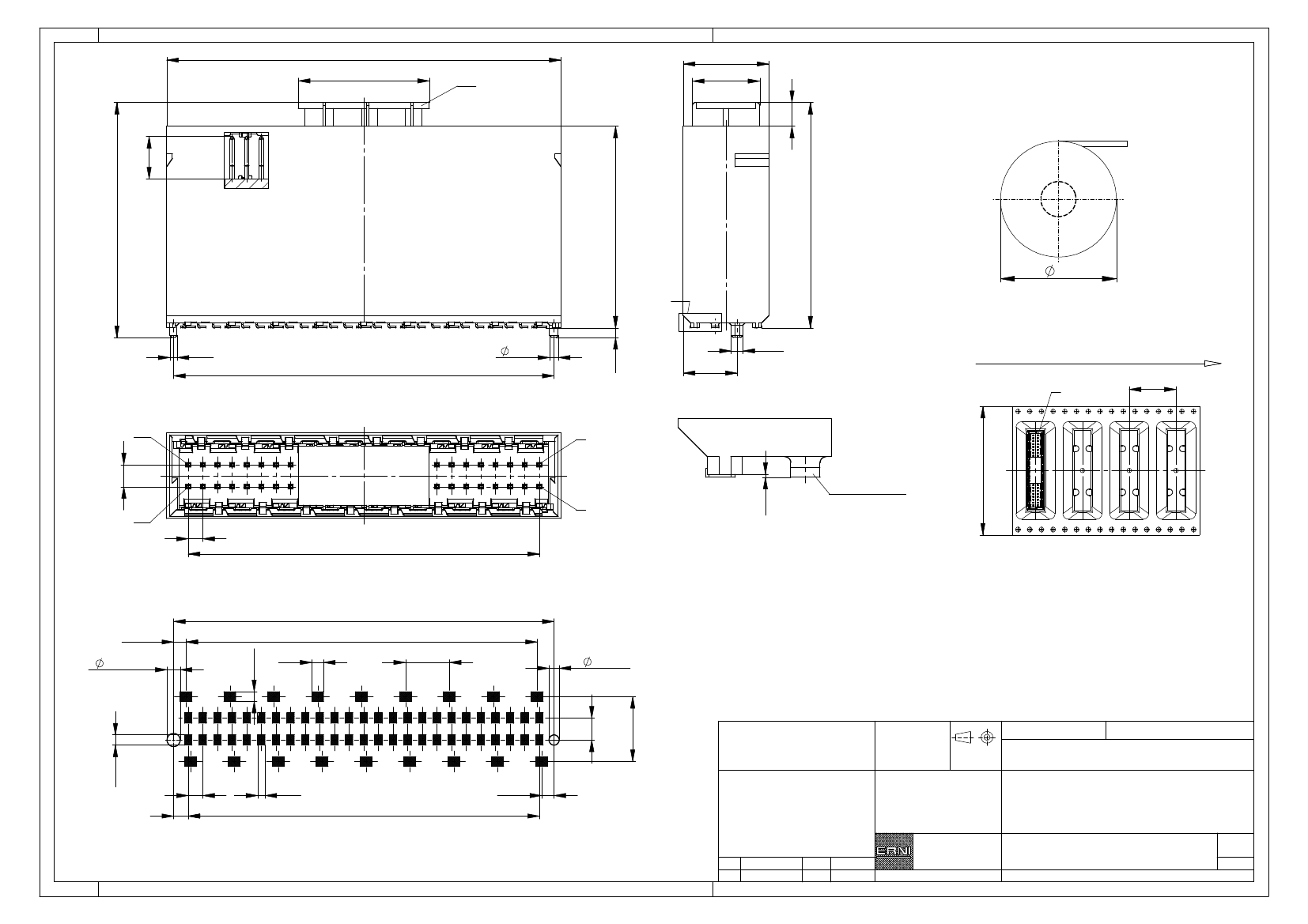

Messerleiste10mm SMD, 50 polig

Preview

Download Datasheet

View All

26,95

8,95

Ansaughaube

5,85

4,6

1,62

Verpackt in Gurtverpackung

hood

Tape on Reel Packaging

Verpackungseinheit: 220 Stück

Packaging unit: 220 pcs

2,9

16,07

13,8

15,42

330

0,65

0,5

0,6

0,8

3,675

Abspulrichtung -

Reel off Direction

b25

Einzelheit X

M 20:1

1,5

signaling contact

a25

24 x 1 = 24

Anforderungsstufe 1

0,05

Leiterplatten-Layout Vorschlag /

PCB-layout proposal

±0,03

0,85

0,65

1.)

0,9

±0,03

0,8

8 x 3 = 24

1.)

0,7

±0,03

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

4,45

1,5

Information:

Tolerances

All Dimensions

in mm

Proprietary notice pursuant to ISO 16016 to be observed.

Scale

5:1

0,7

0,5

24 x 1 = 24

0,85

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

22.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste10mm SMD, 50 polig

Male 10mm SMD, 50 contacts

1.) Durchmesser des Bohrers /

Drill tool

www.ERNI.com

Class

100101530001

MSPEED
