PUMA68S16000X-25 datasheet, PDF

Datasheet> All Categories > storage> storage> PUMA68S16000X-25

PUMA68S16000X-25: DescriptionSRAM Module, 512KX32, 25ns, CMOS, PQCC68; Categorystorage storage; File Size367KB，7 Pages; ManufacturerSyntaq Technology Inc

Download Datasheet Parametric Compare View All

PUMA68S16000X-25 Overview

SRAM Module, 512KX32, 25ns, CMOS, PQCC68

PUMA68S16000X-25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Syntaq Technology Inc
package instruction	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown
Maximum access time	25 ns
I/O type	COMMON
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
memory density	16777216 bit
Memory IC Type	SRAM MODULE
memory width	32
Number of terminals	68
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX32
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.04 A
Minimum standby current	4.5 V
Maximum slew rate	0.76 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

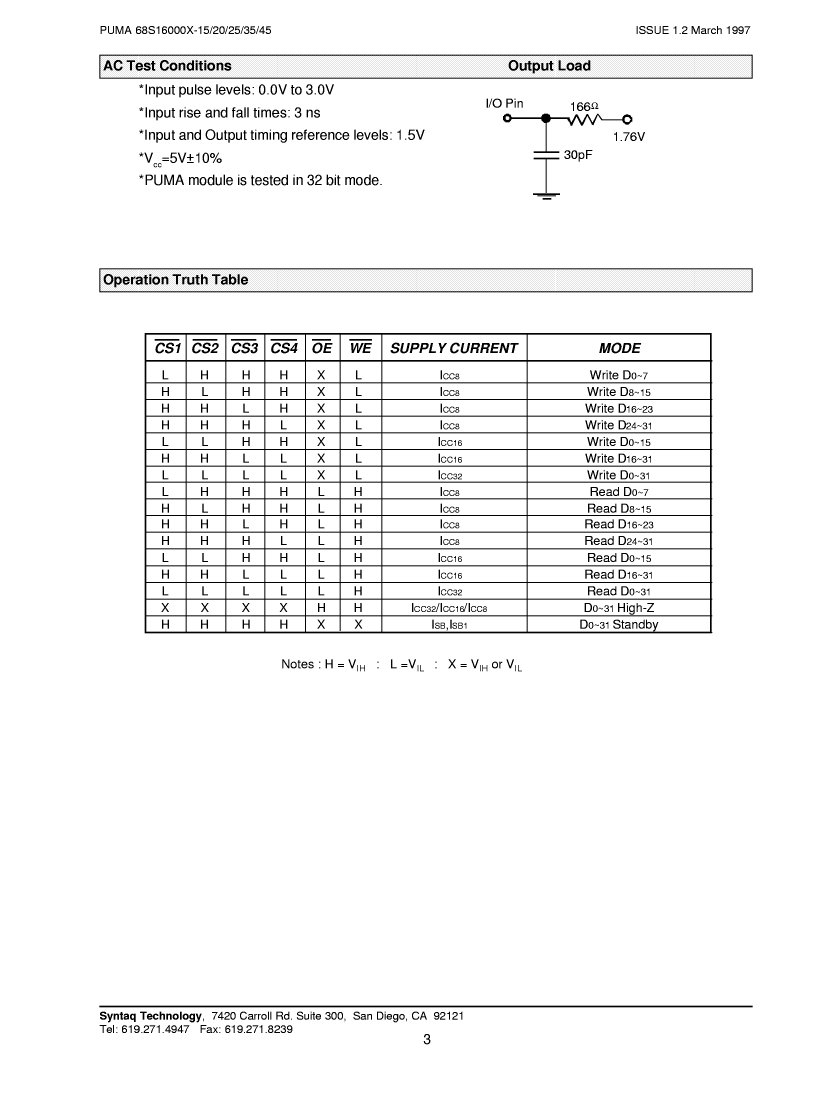

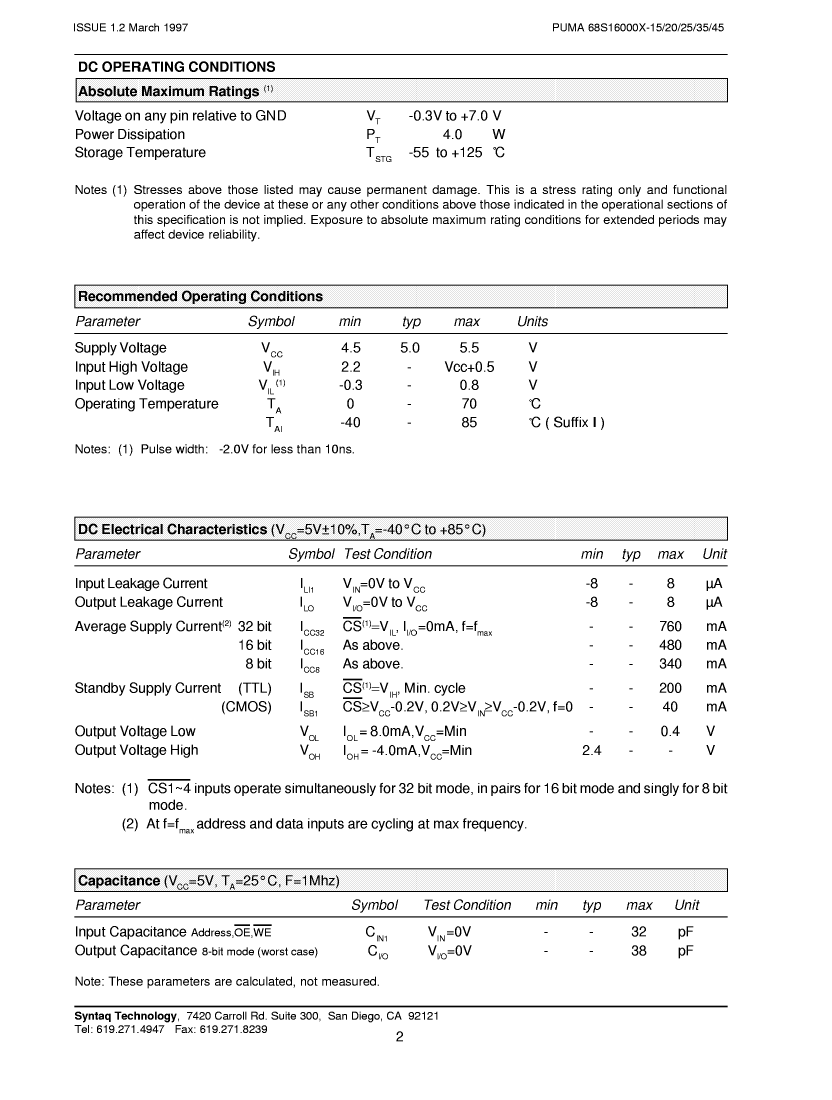

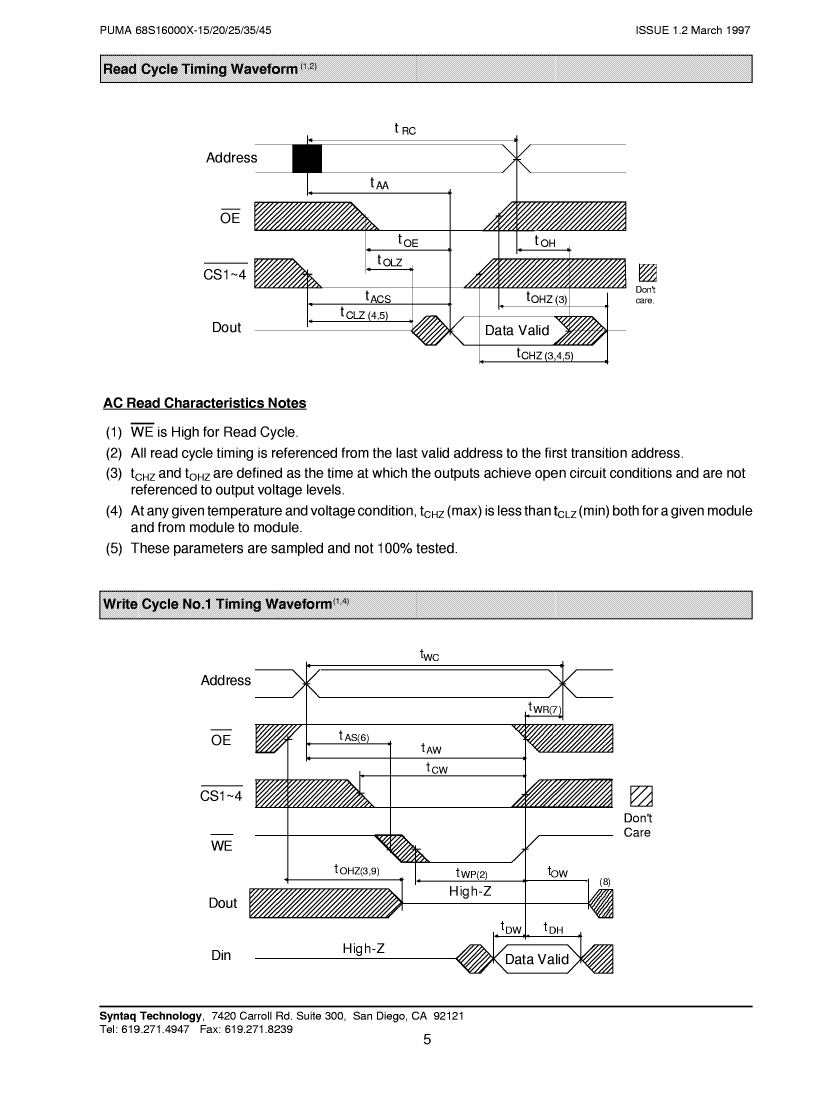

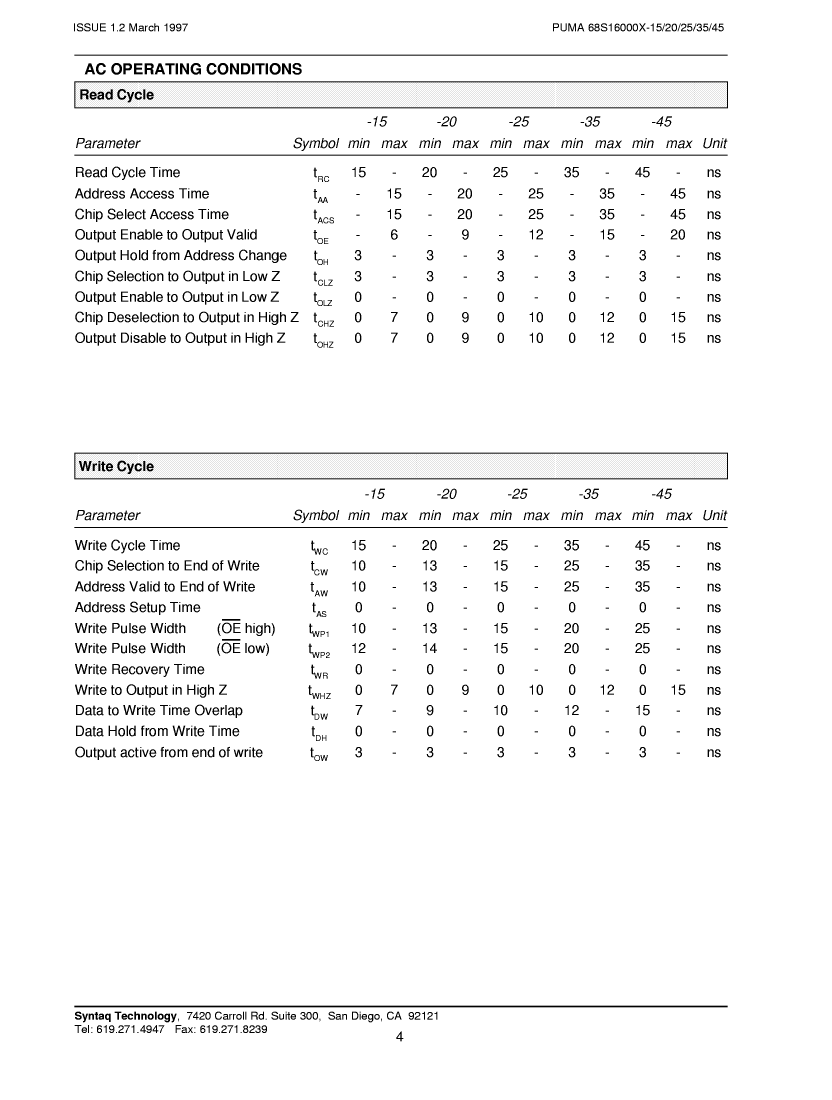

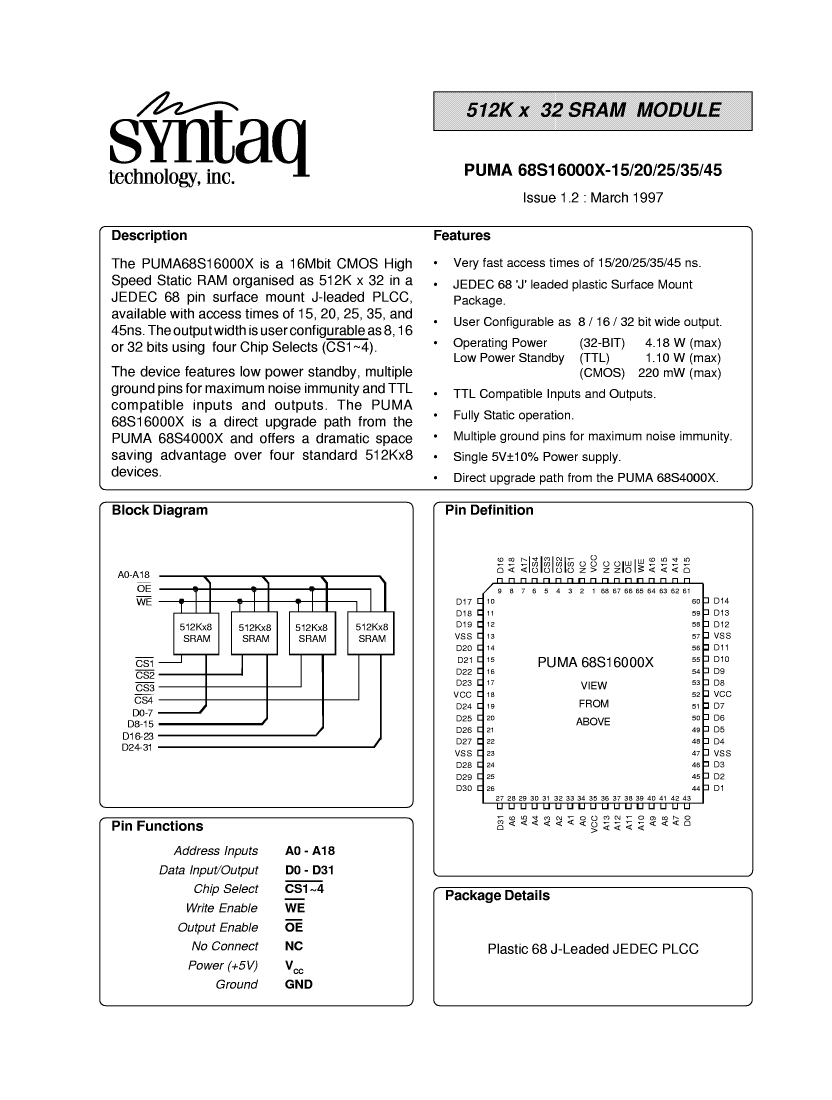

PUMA68S16000X-25 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PUMA68S16000X-25 Related Products

	PUMA68S16000X-25	PUMA68S16000X-15	PUMA68S16000X-20	PUMA68S16000XI-45
Description	SRAM Module, 512KX32, 25ns, CMOS, PQCC68	SRAM Module, 512KX32, 15ns, CMOS, PQCC68	SRAM Module, 512KX32, 20ns, CMOS, PQCC68	SRAM Module, 512KX32, 45ns, CMOS, PQCC68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	25 ns	15 ns	20 ns	45 ns
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68
JESD-609 code	e0	e0	e0	e0
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	32	32	32	32
Number of terminals	68	68	68	68
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C
organize	512KX32	512KX32	512KX32	512KX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.04 A	0.04 A	0.04 A	0.04 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.76 mA	0.76 mA	0.76 mA	0.76 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Objectid	-	101278426	101278432	101278457
ECCN code	-	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
