52-PV4F23011314: DescriptionHARDWARE SUPPLIED: O-RING AND HEXNUT; File Size222KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV4F23011314 Overview

HARDWARE SUPPLIED: O-RING AND HEXNUT

Preview

Download Datasheet

View All

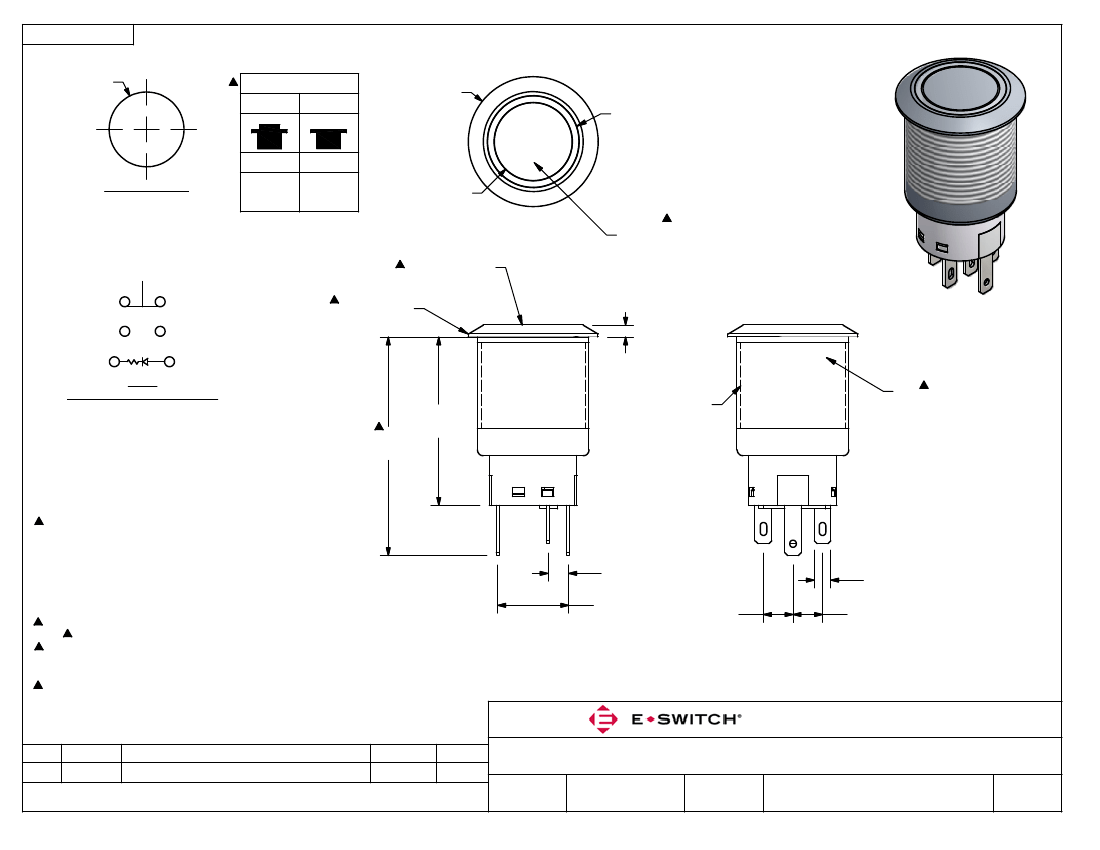

SHEET 1 OF 1

19.00

[.748 in]

SWITCH FUNCTION

POS. 1

POS. 2

22.00

[.866 in]

RING ILLUMINATION

PANEL CUTOUT

MAX. PANEL THICKNESS

11.0mm [.433]

1-3

1-2

13.20

[.520 in]

(ON) = MOMENTARY

ACTUATOR FINISH

BLACK

FLAT ACTUATOR

(-)

BODY FINISH

BLACK

2.00

[.079 in]

(+)

SPDT

CONTACT CONFIGURATION

28.50

[1.122 in]

M19x1.0

NOTE 15

HARDWARE SUPPLIED

37.00

[1.457 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A 48VDC

6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MΩ MIN.

8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC

10. OPERATING TEMP.: -20°C to 55°C

11. TRAVEL: 2.8mm

12. DENOTES CRITICAL PARAMETER.

13. LAMP VOLTAGE: 12V

14. INGRESS PROTECTION: IP67

15. HARDWARE SUPPLIED: O-RING AND HEXNUT

16. ILLUMINATION COLOR: RED

17. 2002/95/EC (ROHS) COMPLIANT

(-)

(+)

3.50

[.138 in]

12.00

[.472 in]

5.00

[.197 in]

(+)

2.80

[.110 in]

5.00

[.197 in]

REV

20388

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

01/06/12

DATE

BMA

TITLE

SCALE

PV4F23011-314

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

1.5:1

1/6/2012

BMA

DWG

52-PV4F23011314

REV
