SHEET 1 OF 1
n
19.00
[.748 in]

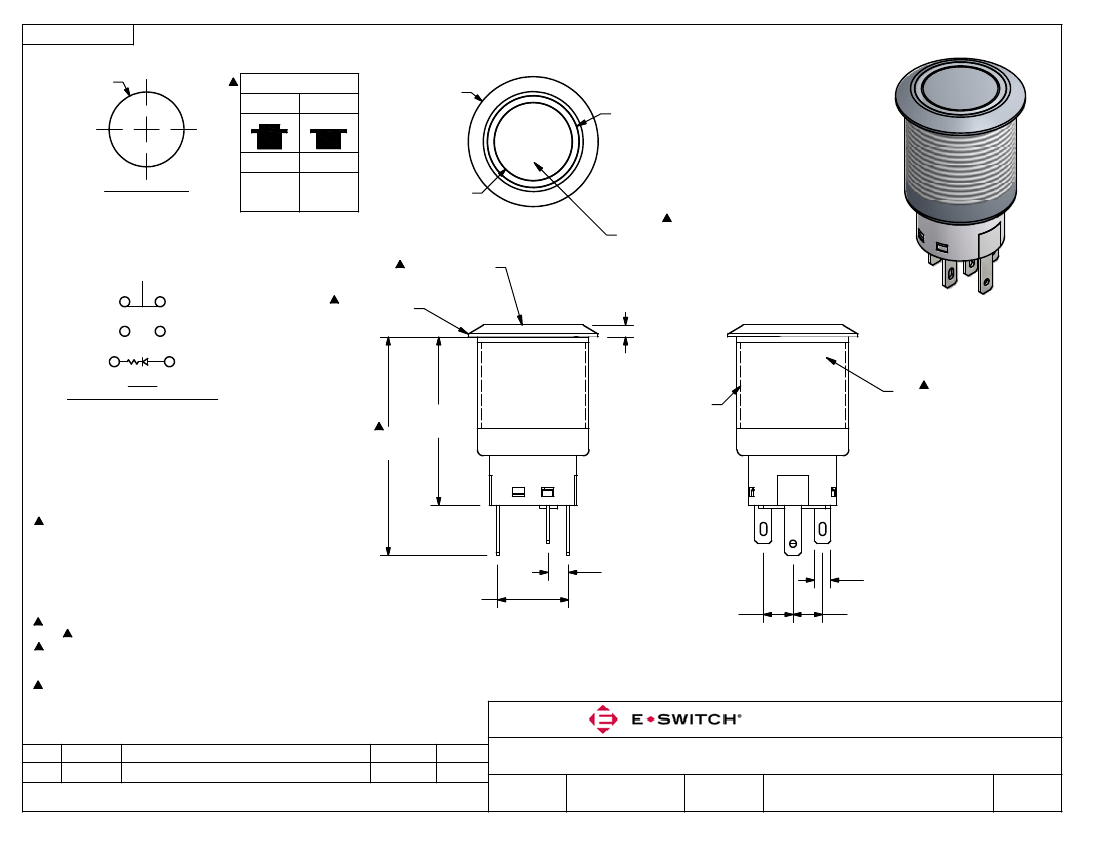

SWITCH FUNCTION
POS. 1
POS. 2
n
22.00
[.866 in]
RING ILLUMINATION
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-3
ON
1-2
n
13.20
[.520 in]
(ON) = MOMENTARY
ACTUATOR FINISH
BLACK
FLAT ACTUATOR
1
1
(-)
3
2
BODY FINISH
BLACK
2.00
[.079 in]
(+)
SPDT
CONTACT CONFIGURATION
28.50
[1.122 in]
M19x1.0
NOTE 15
HARDWARE SUPPLIED
37.00
[1.457 in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MΩ MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 12V
14. INGRESS PROTECTION: IP67
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: ORANGE
17. 2002/95/EC (ROHS) COMPLIANT
(-)
1
(+)
3.50
[.138 in]
1
(+)
3
2.80
[.110 in]
5.00
[.197 in]
12.00
[.472 in]
5.00
[.197 in]
A
REV
20388
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
01/06/12
DATE
BMA
BY
TITLE
SCALE
PV4F23011-324
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
1.5:1
1/6/2012
DR
BMA
DWG
52-PV4F23011324
REV
A
