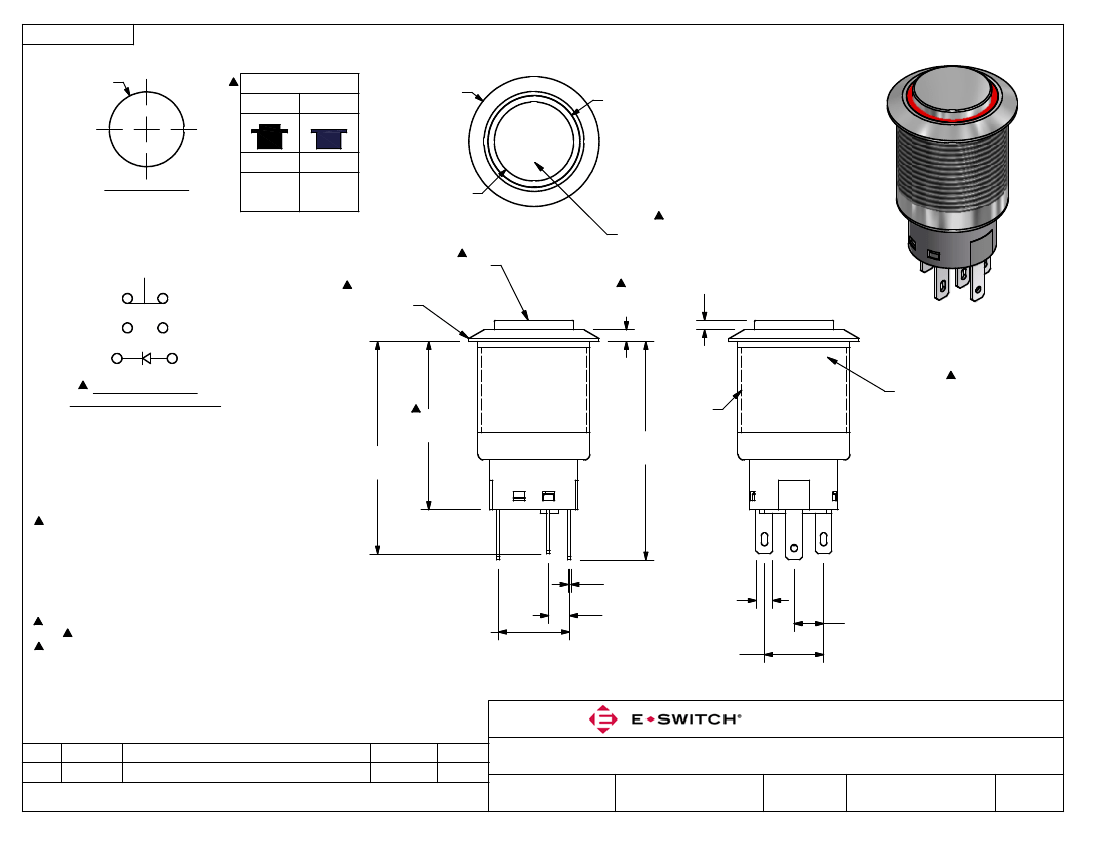

SHEET 1 OF 1
n
19.00
n
22.00
[.866 in]
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
n
15.50
[.610 in]
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
10mm [.39 in]
1-3
ON
1-2
n
13.40
[.528 in]
ACTUATOR FINISH
MACHINED STAINLESS
HIGH ACTUATOR
BODY FINISH
MACHINED STAINLESS
2.00
[.079 in]
1.60
[.063 in]
1
1
(-)
3
2
(+)
SPDT MAINTAINED
CONTACT CONFIGURATION
28.50
`
.50
[1.122
`
.020
in]
NOTE 15
HARDWARE SUPPLIED
M19x1.0
37.00
`
.50
[1.457
`
.020
in]
NOTE:
36.00
`
.50
1. ALL DIMENSIONS IN MM [INCH]
[1.417
`
.020
in]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 24VDC
0.7A 125VAC (cURus)
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20° to 55°
C
C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 1.8V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: RED
17. 2002/95/EC (ROHS) COMPLIANT
(-)
1
(+)
.50
[.020 in]
1
(+)
2.80
[.110 in]
3
12.00
[.472 in]
3.50
[.138 in]
5.00
[.197 in]
10.00
[.394 in]
A
REV
21390
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
3/3/14
DATE
EBP
BY
TITLE
SCALE
PV4H230SS-311
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
3/3/2014
DR
EBP
DWG
52-PV4H230SS311
REV
A
