52-PV5H240SS: DescriptionHARDWARE INCLUDED, 1 O-RING & 1 HEX NUT.(NOT SHOWN); File Size155KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV5H240SS Overview

HARDWARE INCLUDED, 1 O-RING & 1 HEX NUT.(NOT SHOWN)

Preview

Download Datasheet

View All

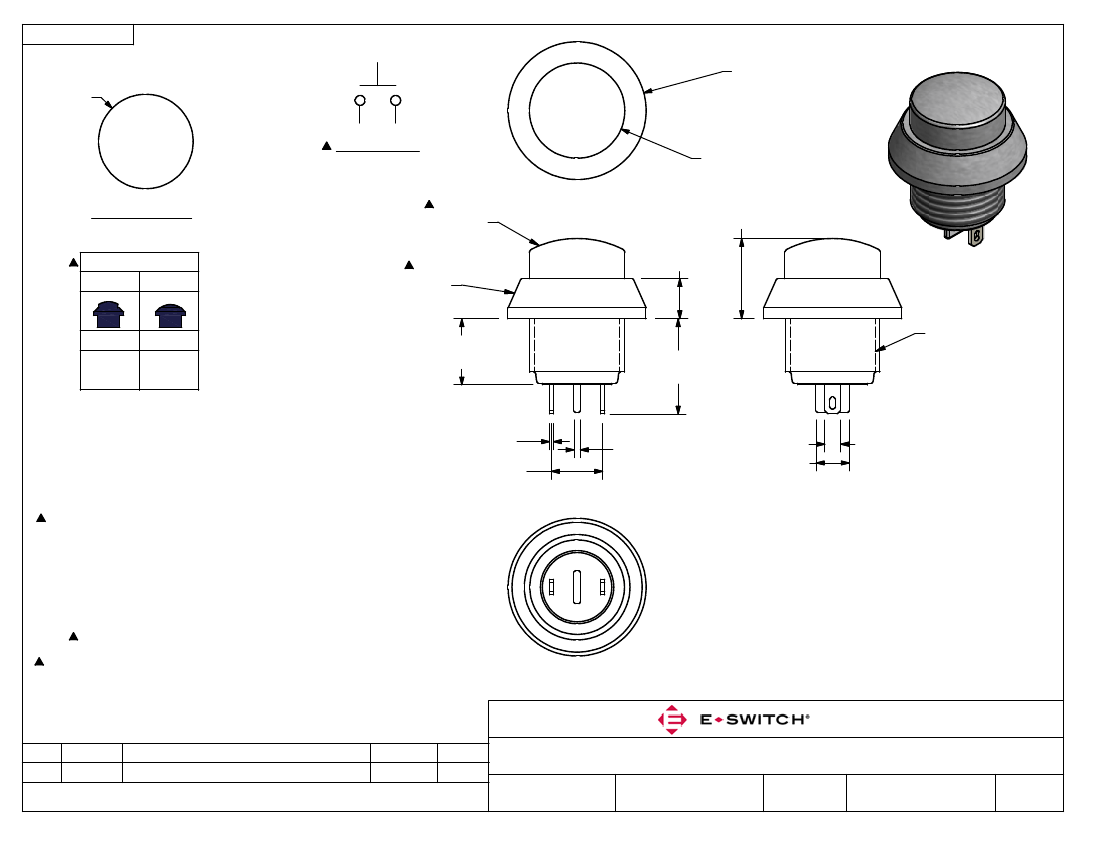

SHEET 1 OF 1

17.50

[.689 in]

12.00

[.472 in]

CIRCUIT: SPST

12.10

[.476 in]

PANEL MOUNTING

MAX. PANEL THICKNESS 4mm

SWITCH FUNCTION

POS. 1

POS. 2

STAINLESS STEEL

RAISED ACTUATOR

5.10

[.201 in]

STAINLESS STEEL

BODY

10.20

.50

[.402

.020

in]

OFF

OPEN

(ON)

1-2

8.40

.50

[.331

.020

in]

M12x1.0

THREAD

12.10

.50

[.476

.020

in]

2.00

[.079 in]

(ON) = MOMENTARY

.50

[.020 in]

6.50

[.256 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CIRCUIT: SPST, OFF- (ON)

5. CONTACT MATERIAL: SILVER

6. RATING: 2A @ 48 VDC

7. ELECTRICAL LIFE: 200,000 CYCLES

8. CONTACT RESISTANCE: 50 mΩ MAX. @ 1A 12VDC (INITIAL)

9. INSULATION RESISTANCE: 1,000 MΩ MIN. @ 500VDC.

10. DIELECTRIC STRENGTH: 2,000 VAC rms.

11. OPERATING TEMPERATURE: -20°C TO +70°C.

12. PANEL THICKNESS MAX: 4.0 mm.

13. INGRESS PROTECTION: IP65

14.

DENOTES CRITICAL PARAMETER.

15. 2002/95/EC (ROHS) COMPLIANT

16. HARDWARE INCLUDED, 1 O-RING & 1 HEX NUT.(NOT SHOWN)

.80

[.031 in]

4.20

[.165 in]

REV

21254

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

10/11/13

DATE

EBP

TITLE

PV5H240SS

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

10/11/2013

EBP

52-PV5H240SS
