SHEET 1 OF 1
n
17.50
[.689 in]
n
12.00
[.472 in]
10.80
[.425 in]
1
2
CIRCUIT: SPST
n
12.10
[.476 in]
7.20
`
.50
[.283
`
.020
in]

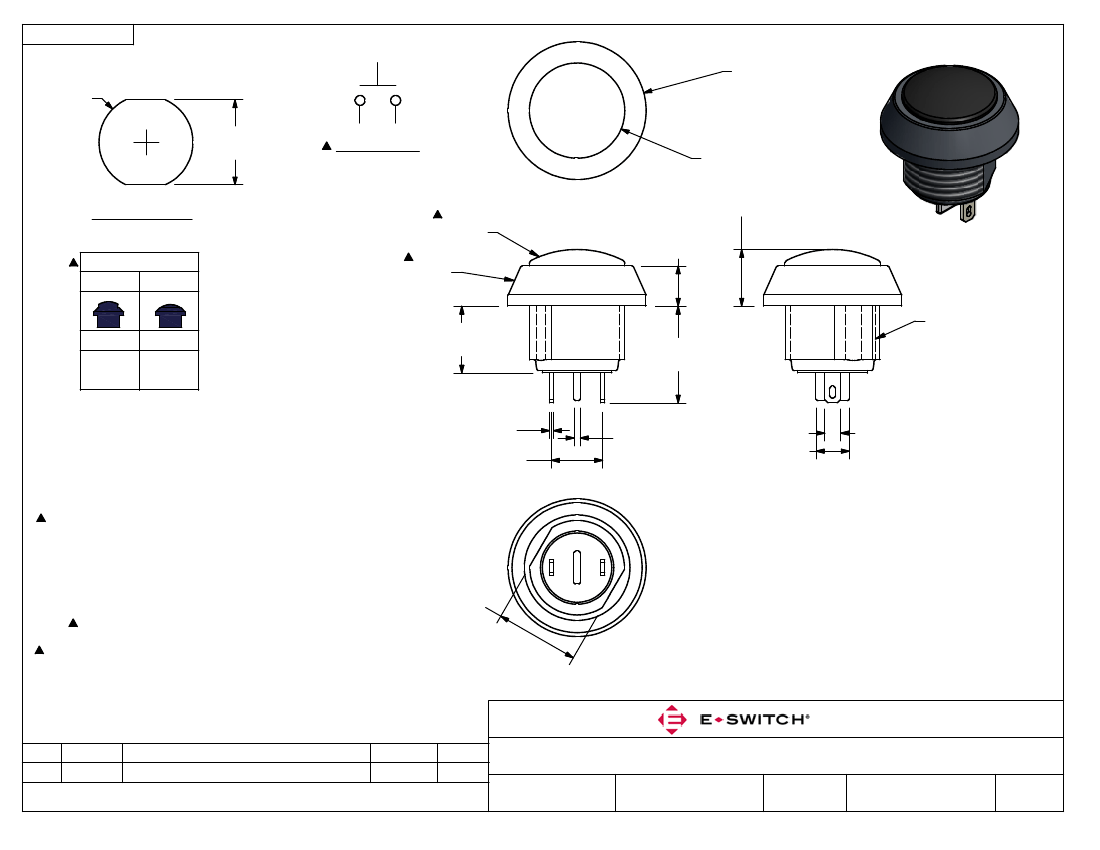

SPHERICAL ACTUATOR
COLOR: BLACK
BODY COLOR:
BLACK
M12x1.0
THREAD
12.30
`
.50
[.484
`
.020
in]
1
.50
[.020 in]
2
2
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
6.50
[.256 in]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CIRCUIT: SPST, OFF- (ON)
5. CONTACT MATERIAL: SILVER
6. RATING: 2A @ 48 VDC
7. ELECTRICAL LIFE: 200,000 CYCLES
8. CONTACT RESISTANCE: 50 mΩ MAX. @ 1A 12VDC (INITIAL)
9. INSULATION RESISTANCE: 1,000 MΩ MIN. @ 500VDC.
10. DIELECTRIC STRENGTH: 2,000 VAC rms.
10.60 FLAT
[.417 in]
11. OPERATING TEMPERATURE: -20°C TO +70°C.
12. INGRESS PROTECTION: IP65
13.
DENOTES CRITICAL PARAMETER.
14. 2002/95/EC (ROHS) COMPLIANT
15. HARDWARE INCLUDED, 1 O-RING & 1 HEX NUT.(NOT SHOWN)
.80
[.031 in]
4.20
[.165 in]
2.00
[.079 in]
5.10
[.201 in]
PANEL MOUNTING
MAX. PANEL THICKNESS 4mm
SWITCH FUNCTION
POS. 1
POS. 2
OFF
OPEN
(ON)
1-2
8.50
`
.50
[.335
`
.020
in]
(ON) = MOMENTARY
A
REV
20901
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
12/3/12
DATE
EBP
BY
TITLE
PV5S24011
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
12/3/2012
EBP
52-PV5S24011
A
