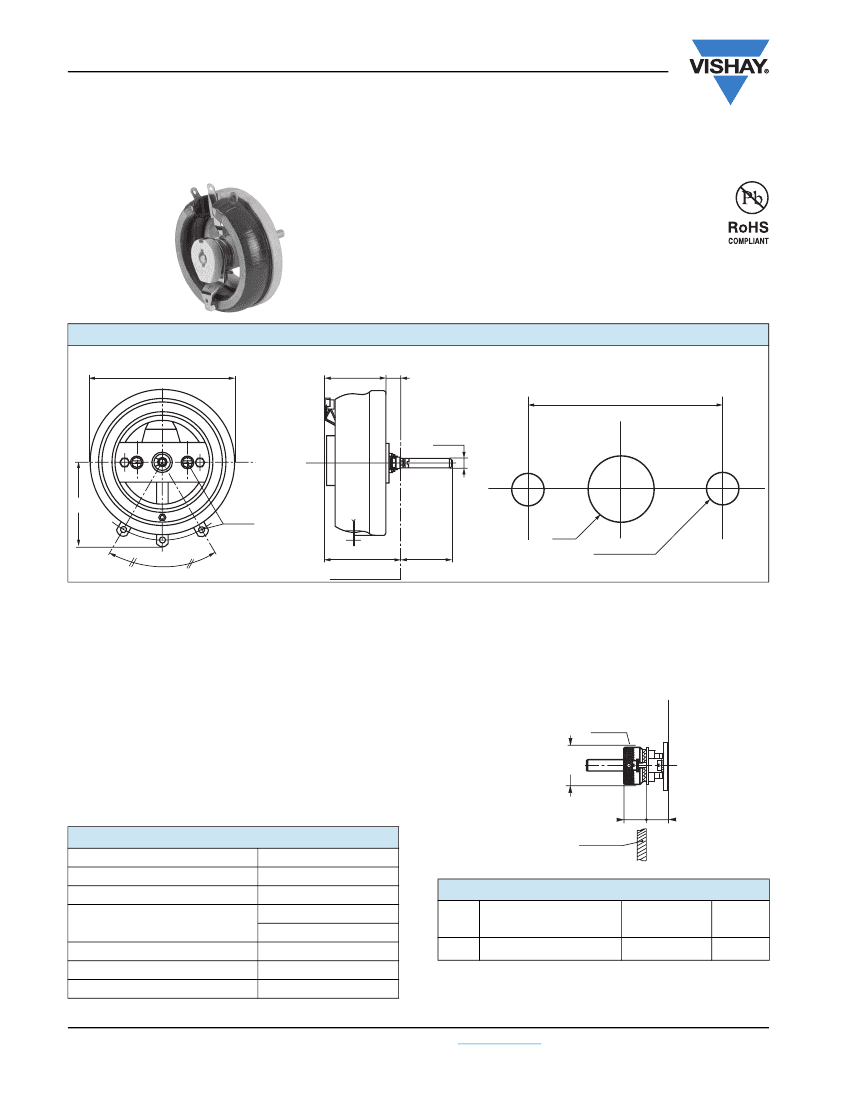

RT230
Vishay Sfernice
Wirewound Rheostat/Potentiometer
FEATURES
•
250 W at 25 °C
•
CCTU 05-03B (PA7)
•
Vitreous style
•
Compliant to RoHS directive 2002/95/EC
DIMENSIONS
in millimeters
RT230-PA7
143 ± 3.5
60
15
50
PANEL CUT OUT DETAILS
10
- 0.05
-0
83
Screw M5
Ø 12
60°
75
Mounting side
50 ± 2
AS
2 holes Ø 5.5
MECHANICAL SPECIFICATIONS
Mechanical Protection
Mechanical Travel
Operating Torque
End Stop Torque
Unit Weight
Vitreous
300° ± 5°
1 Ncm to 50 Ncm
200 Ncm
1300 g
LOCKING DEVICE
This is supplied as an option.
The available spindle length is according to the panel
thickness.
Order reference: DBA10
thumb
wheel nut
min. panel cut-out
Ø
32
ENVIRONMENTAL SPECIFICATIONS
Temperature Range
Climatic Category
- 55 °C + 320 °C
CCTU 454
CEI 55/200/56
18
17
ELECTRICAL SPECIFICATIONS
Ohmic Range
Tolerance Standard
Power Rating
Variation Law
Standard
On request
1
Ω
to 22 kΩ
± 10 %
250 W at 25 °C
Linear
Sectorial winding
1500 V
2000 V
RMS
10
3
MΩ (500 V
CC
)
panel
SPINDLES
Ø
mm
10
DISTANCE TO MOUNTING
PLATE mm
50
SCREW DRIVER
SLOT
Without
CODE
AS
Limiting Element Voltage
Dielectric Strength
Insulation Resistance
Note
• For any special requirement on request: spindle flats, etc. Please
supply detailed drawing.
www.vishay.com
142
For technical questions, contact:
sfer@vishay.com
Document Number: 50029
Revision: 23-Mar-09
RT230
Wirewound Rheostat/Potentiometer
Vishay Sfernice
PARTICULAR CHARACTERISTICS
NOMINAL
RESISTANCE
Ω
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1K
1.5K
2.2K
3.3K
4.7K
6.8K
10K
15K
22K
MAX. SERVICE
VOLTAGE
V
15.2
18.6
22.5
27.6
32.9
31.5
48
58.7
71.1
87.1
104
125
152
186
225
276
329
395
480
587
711
871
1040
1250
1500
1940
2000
MAX. CURRENT
THROUGH WIPER
A
15.2
12.4
10.2
8.36
7
5.82
4.80
3.92
3.23
2.64
2.21
1.84
1.52
1.24
1.02
0.836
0.700
0.582
0.480
0.392
0.323
0.264
0.221
0.184
0.150
0.13
0.091
COMMAND KNOB 60JF (OPTION)
21
Ø
76
Ø
10
16
DIAL CG115 (OPTION)
4 holes
Ø
3.5
5
6
7
8
1
0
10
50
98
115
9
98 115
2 holes
Ø
6
Ø
12
3
2
4
MARKING
Vishay Sfernice trademark, series, style, ohmic value (in
Ω
or kΩ), tolerance (in %), maximum current in A, manufacturing date
ORDERING INFORMATION
RT
MODEL
230
STYLE
AS
SPINDLE
1002
OHMIC VALUE
K
TOLERANCE
B
PACKAGING
XXX
SPECIAL DESIGN
GLOBAL PART NUMBER INFORMATION
R
T
2
3
0
A
S
2
2
R
0
K
B
GLOBAL
LOCKING
SIZE
MODEL
DEVICE (OPT.)
RT
230
D
WINDING
(OPT.)
BXXX
or
BXXXX
As applicable
xxx(x) =
Internal
number
COMMAND
SHAFT
AS
= Standard
(Diam: 10 mm)
OHMIC VALUE
The first three digits are
significant figures and the
last digit specifies the
number of zeros to follow.
R designates decimal point.
2002
= 20 kΩ
4700
= 470
Ω
22R0
= 22
Ω
0R01
= 0.01
Ω
TOLERANCE PACKAGING
J
=5%
K
= 10 %
B
= Box
BO1
SPECIAL
As applicable
Ex
= DXxx
Document Number: 50029
Revision: 23-Mar-09
For technical questions, contact:
sfer@vishay.com
www.vishay.com
143
