N-208: DescriptionPOWER/SIGNAL RELAY, SPDT, LATCHED, 28VDC (COIL), 50A (CONTACT), 28VDC (CONTACT), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size40KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

N-208 Overview

POWER/SIGNAL RELAY, SPDT, LATCHED, 28VDC (COIL), 50A (CONTACT), 28VDC (CONTACT), PANEL MOUNT

N-208 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
body width	26.16 mm
body height	35.31 mm
Body length or diameter	47.75 mm
Coil operating voltage (DC)	20 V
Maximum coil voltage (DC)	28 V
Maximum contact current (DC)	50 A
Contact (DC) maximum rated R load	50A@28VDC
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Electrical life	50000 Cycle(s)
Manufacturer's serial number	N-208
Installation features	PANEL MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
physical size	47.75mm X 26.16mm X 35.31mm
Guideline	MIL-R-6106
Relay action	LATCHED
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SCREW

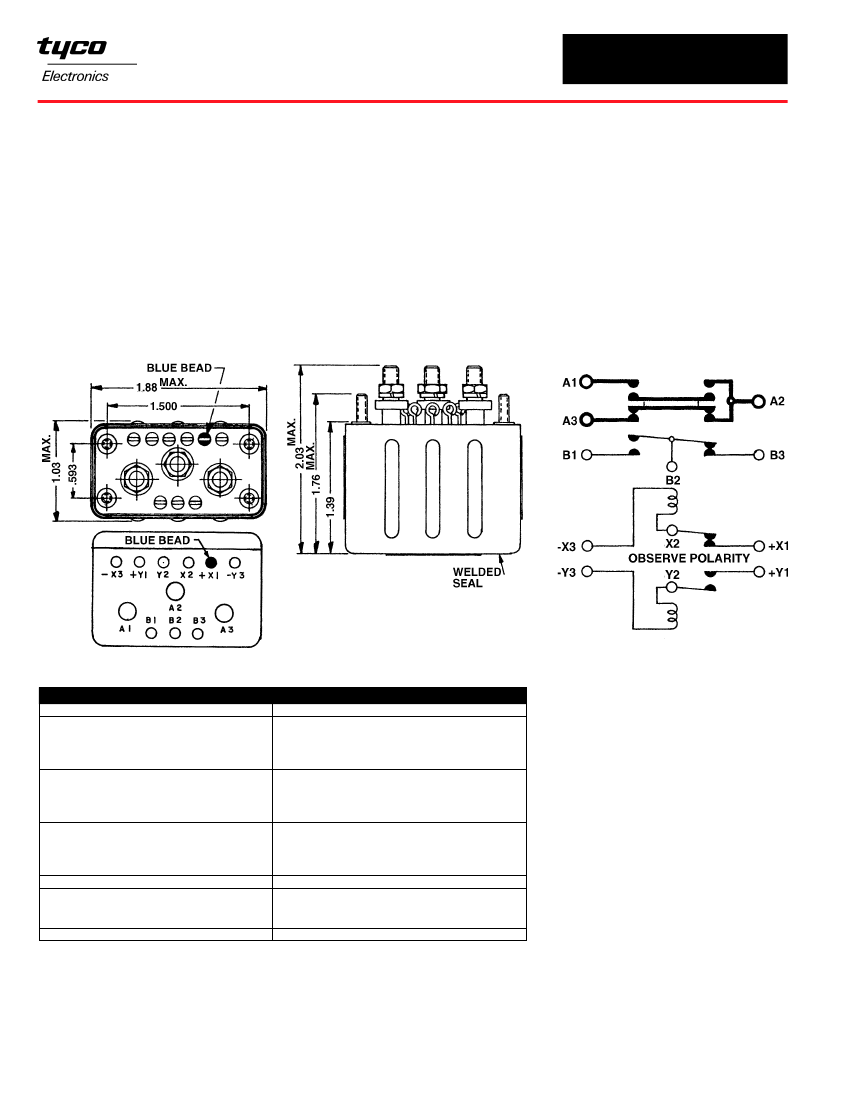

N-208 Preview

HARTMAN Aerospace Power Products

DC Relays

Features:

• SPDT Double Break Main Contacts

• Magnetic Latch

• Hermetically Sealed

• Self De-Energizing Coil

• 28 VDC

• 50 Amps

• High Reliability

• Meets many requirements of MIL-R-6106

• Light Weight Construction

N-208 SPDT, Double Break, Magnetic Latch,

50 Amps, 28 VDC

CONTACTOR CONFIGURATION

Dimensions for this product are expressed in inches.

Multiply values by 25.4 for millimeters.

Notes:

PRODUCT SPECIFICATIONS

Construction

Main Contacts:

Configuration

Voltage (Nominal)

Current (Rexixtive)

Auxiliary Contacts:

Configuration

Voltage (Nominal)

Current (Resistive)

Coil Data:

Duty Cycle

Voltage (Nominal)

Pick-Up Voltage

Operating Temperature

Life:

Electrical

Mechanical

Weight

Welded Hermetic Seal

SPDT Double Break

28 VDC

50 Amps

SPDT

28 VDC

2 Amps

Continuous, Self De-Energizing

28 VDC

20 VDC at 125°C

-65°C to +125°C

50,000 Cycles

.3 Lb.

For factory-direct application assistance, contact the HARTMAN

product team at (419) 521-9500, Fax (419) 526-2749.

HARTMAN and TYCO are trademarks.

Catalog (web doc only)

Revised 5-04

www.tycoelectronics.com

Dimensions are in inches and

millimeters unless otherwise

specified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
