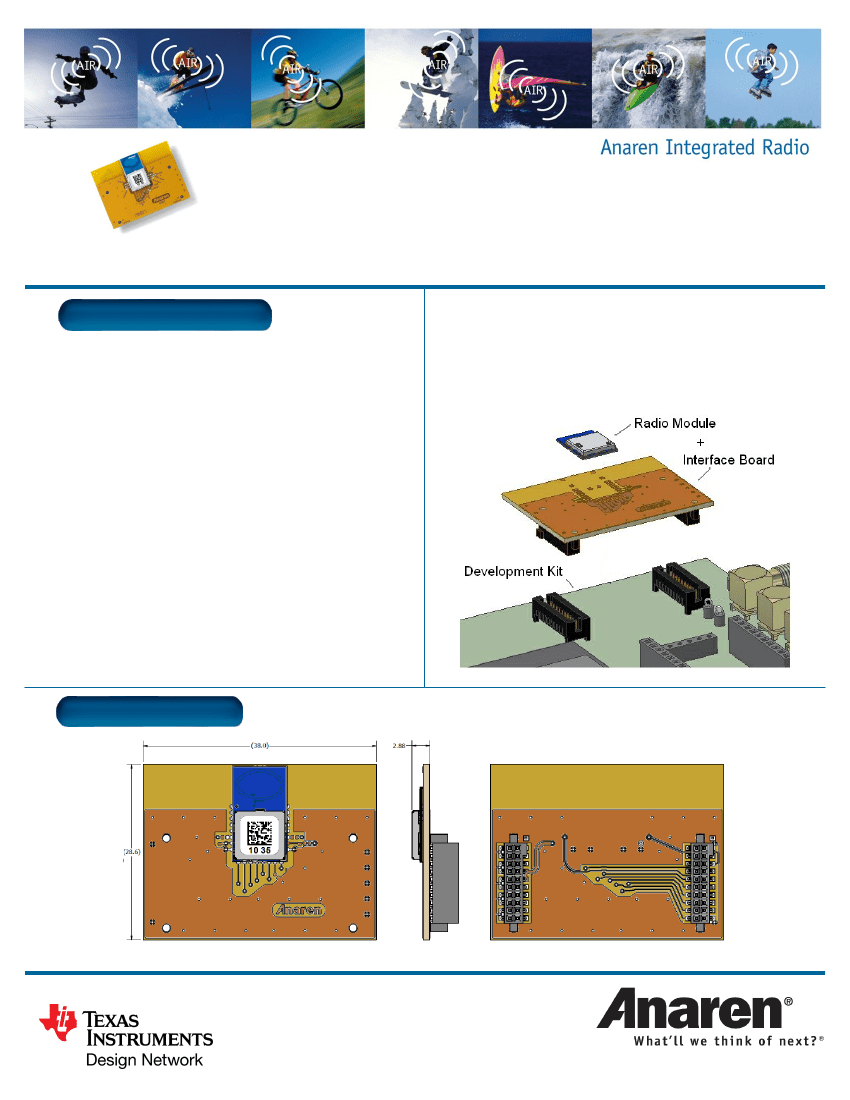

Evaluation Module Series
The A1101R09A-EM1 is a high-performance, interface board with an FCC-
certified A1101R09A integrated antenna radio module mounted for quick
A1101R09A-EM1
Product Overview
connection to the Texas Instruments CC1101DK Development Kit
.
The A1101R09A-EM1 is an evaluation module
with an Anaren A1101R09A radio module in the
industry’s smallest package (9 x 16 x 2.5mm)
mounted on it. This evaluation module is designed
specifically for compatibility with SmartRF
®
04,
SmartRF
®
05 and MAVRK evaluation boards. Each
Anaren A1101R09A module is FCC-certified and
incorporates the Texas Instruments CC1101
transceiver chip.
As a stand-alone module for your final design
implementation, Anaren’s A1101R09A has an
LGA pad footprint with an integrated antenna, this
module is designed to effortlessly integrate into a
wide range of applications, including: industrial
control, building automation, low-power wireless
sensor networks, lighting control, and automated
meter reading.
The A1101R09A has an RoHS-compliant ENIG
finish and is packaged on tape & reel or in matrix
tray for high-volume automated manufacturing.
Layout
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 /
http://www.anaren.com
/ AIR@anaren.com

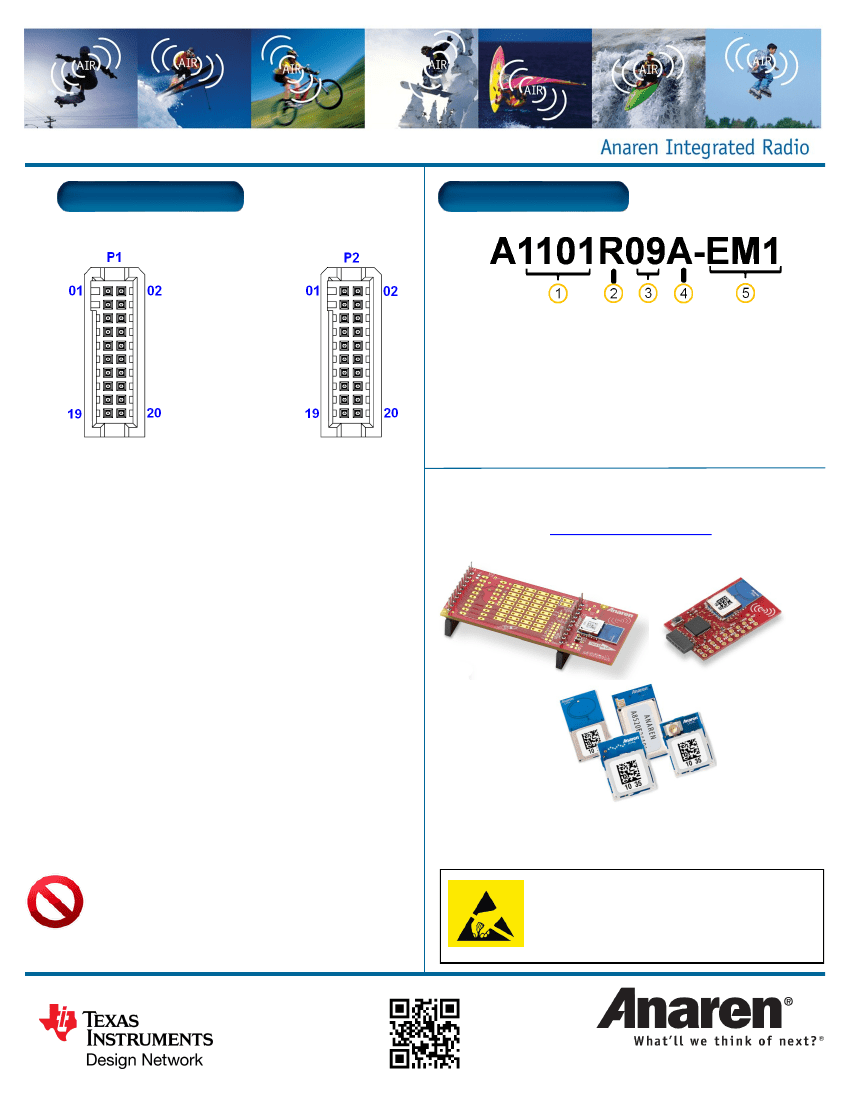

Pin Diagram
Development Kit Connectors
Nomenclature
A
1
2
3
4
5
Chip series
Function
Frequency band
Form factor
Module Type
(Anaren)
(CC1101, CC110L, CC2500)
(R = radio only)
(x100MHz)
(A = Internal Antenna, C = Connector)
(EM1 = Eval Module, EZ4x = EZ-430
Module, LPF = BoosterPack)
Connector P1
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Pin 11
Pin 12
Pin 13
Pin 14
Pin 15
Pin 16
Pin 17
Pin 18
Pin 19
Pin 20
GND
NC
NC
NC
NC
NC
NC
NC
NC
GDO0/ATEST
NC
GDO2 (Debug)
NC
CSn
NC
SCLK
NC
SI
GND
SO/GDO1
Connector P2
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Pin 11
Pin 12
Pin 13
Pin 14
Pin 15
Pin 16
Pin 17
Pin 18
Pin 19
Pin 20
NC
GND
NC
GND
NC
GND
VDD
GND
VDD
GND
NC
GND
NC
GND
NC
GND
NC
NC
NC
DD_DIR
To view the entire available family of AIR Modules &
Development options, please visit our website at:
http://www.anaren.com/air
This product is not to be used in any implantable medical device or external
medical device intended to regulate or monitor biological functions, including but
not limited to devices such as pacemakers, defibrillators, cardiac
resynchronization devices, pressure sensors, biochemical stimulators and
neurostimulators. ANAREN MAKES NO WARRANTY OF FITNESS OR
MERCHANTABILITY OF THIS PRODUCT FOR ANY USE OF THIS TYPE.
Anaren shall not be responsible for any consequential damages arising from the
sale or use of this product for any use of this type. The ultimate user of the
product assumes all risk of personal injury or death arising from a prohibited use.
PLEASE NOTE:
Additional information on the Texas Instruments
CC1101 Development Kit can be found in the company’s latest datasheet
release at http://www.ti.com
Caution! ESD sensitive device. Precautions
should be used when handling the device in
order to prevent permanent damage.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 /
http://www.anaren.com
/ AIR@anaren.com
1219a
