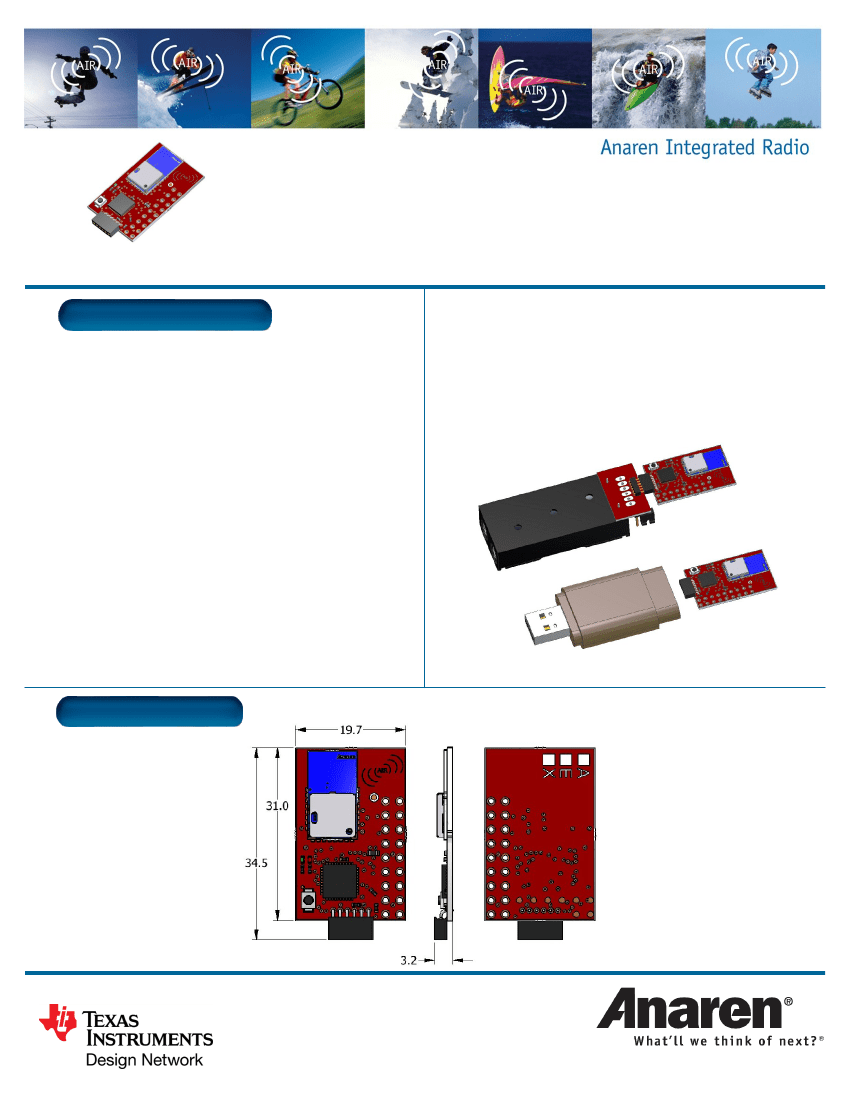

EZ4x Module Series
The A1101R09A-EZ4x is a high-performance demonstration platform, designed to
showcase Anaren's family of FCC & IC certified AIR Modules. It features an
A1101R09A AIR 900 MHz Module with integral antenna, and is designed to quickly
connect to the Texas Instruments eZ430 Development Kit battery board or USB
debugging interface
A1101R09A-EZ4x
Product Overview
The A1101R09A-EZ4x is a target board assembly
with the Anaren A1101R09A radio module in the
industry’s smallest package (9 x 16 x 2.5mm)
mounted on it.
This module is fully compliant with Texas
Instruments eZ430-RF2500 Development Kit, and
plugs directly into either the battery board or USB
debugging interface via the 6 pin header. It is
designed to be a direct-replacement for the
access point and end point target board modules
included with the Texas Instrument eZ430-
RF2500 Development Kit. Each Anaren
A1101R09A Radio Module is FCC & IC certified
and incorporates the Texas Instruments CC1101
transceiver chip.
As a stand-alone module for your final design
implementation, Anaren’s A1101R09A has an
LGA pad footprint with an integral printed antenna.
This module is designed to effortlessly integrate
into a wide range of applications, including:
industrial control, building automation, low-power
wireless sensor networks, lighting control, and
automated meter reading.
Layout
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 /
http://www.anaren.com
/ AIR@anaren.com

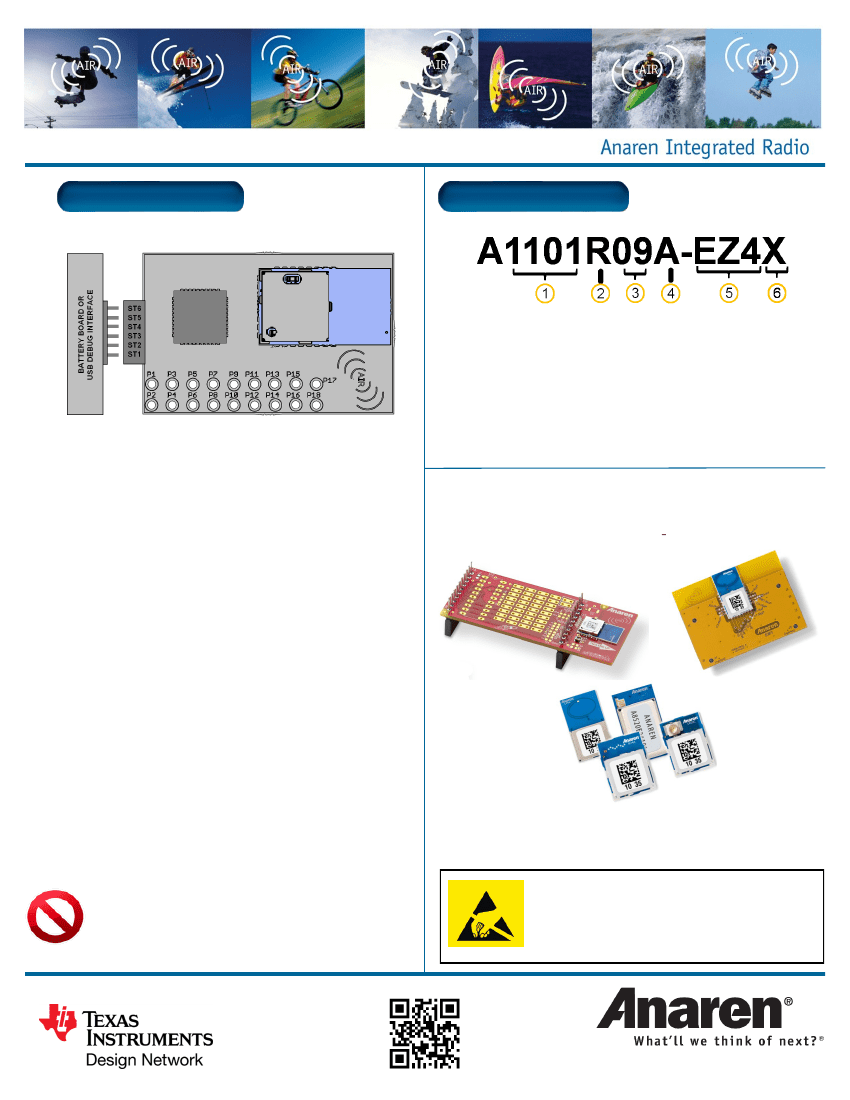

Pin Diagram
EZ4x Connections
Nomenclature
A
1
2
3
4
5
Chip series
Function
Frequency band
Form factor
Module Type
Battery / USB:
ST1
ST2
ST3
ST4
ST5
ST6
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P3.4 / UCA0TXD / UCA0SIMO
GND
RST / SBWTDIO
TEST / SBWTCK
VCC (3.6V)
P3.5 / UCA0RXD / UCA0SOMI
GND
VCC
P2.0 / ACLK / A0 / OA0I0
P2.1 / TAINCLK / SMCLK / A1 /A0O
P2.2 / TA0 / A2 / OA0I1
P2.3 / TA1 / A3 / VREF– / VeREF–/ OA1I1 / OA1O
P2.4 / TA2 / A4 / VREF+ / VeREF+/ OA1I0
P4.3 / TB0 / A12 / OA0O
P4.4 / TB1 / A13 / OA1O
P4.5 / TB2 / A14 / OA0I3
P4.6 / TBOUTH / A15 / OA1I3
GND
P2.6 / XIN (GDO0)
P2.7 / XOUT (GDO2)
P3.2 / UCB0SOMI / UCB0SCL
P3.3 / UCB0CLK / UCA0STE
P3.0 / UCB0STE / UCA0CLK / A5
P3.1 / UCB0SIMO / UCB0SDA
6 Firmware (EZ4 only)
(Anaren)
(CC1101, CC110L, CC2500)
(R = radio only)
(x100MHz)
(A = Internal Antenna, C = Connector)
(EM1 = Eval Module, EZ4x = EZ-430
Module, LPF = BoosterPack)
(A = Access Point, E = End Point,
X = Custom (or no firmware)
To view the entire available family of AIR Modules &
Development options, please visit our website at:
http://www.anaren.com/air
Interface:
PLEASE NOTE:
Additional information on the Texas Instruments
CC1101 Development Kit can be found in the company’s latest datasheet
release at http://www.ti.com
This product is not to be used in any implantable medical device or external
medical device intended to regulate or monitor biological functions, including but
not limited to devices such as pacemakers, defibrillators, cardiac
resynchronization devices, pressure sensors, biochemical stimulators and
neurostimulators. ANAREN MAKES NO WARRANTY OF FITNESS OR
MERCHANTABILITY OF THIS PRODUCT FOR ANY USE OF THIS TYPE.
Anaren shall not be responsible for any consequential damages arising from the
sale or use of this product for any use of this type. The ultimate user of the
product assumes all risk of personal injury or death arising from a prohibited use.
Caution! ESD sensitive device. Precautions
should be used when handling the device in
order to prevent permanent damage.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 /
http://www.anaren.com
/ AIR@anaren.com
