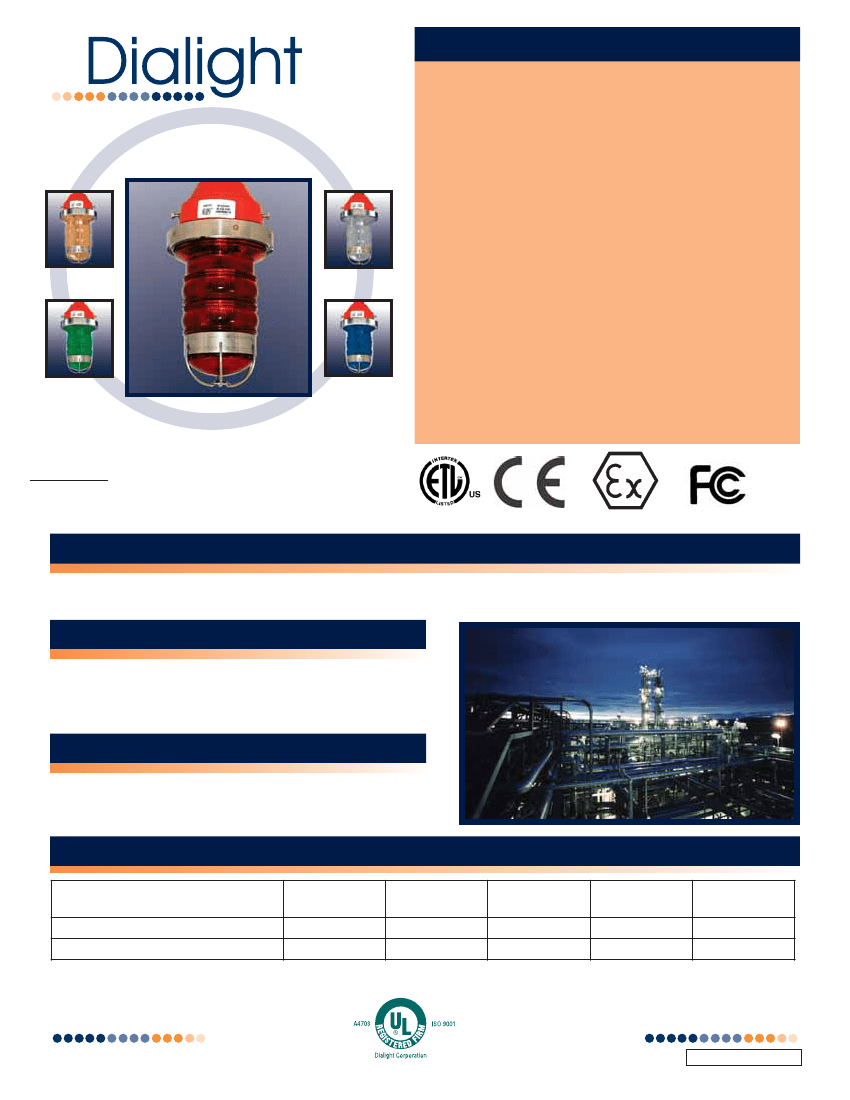

FEATURES / BENEFITS
ATEX certified, equipment group II (surface industries),
category 3 (zone 2), T4 rated
HAZARDOUS LOCATION
LED VISUAL SIGNAL LIGHT
Suitable for all Class 1, Div 2, Groups A, B, C, D
hazardous environments, T4 rated
Inherent safety capability; low electrical/thermal energy
and high light output
Unique optically designed
o
lens to enhance LED
operation and provide 360 visibility
Weather/corrosion resistant lamp assembly and
housing
Self-contained wiring compartment eliminates
additional boxes
Can be operated steady or flashed
(controller not supplied)
Available as a single or dual unit
Resistant to shock and vibration
Threaded 1” and 3/4” bottom hub for mounting
Lasts years longer than an incandescent
5 year warranty
ETL Listed in compliance with
UL1598 and UL844 for use in
Class 1, Div 2 Hazardous Locations
IP 65 / IP 66 / NEMA 4X rated
US PATENT# 6,425,678
Certified to:
ATEX, equipment group II (surface
industries), category 3 (zone 2), T4 rated
Ex nA IIC T4
APPLICATION
The Dialight Visual Signal Light is an LED BASED Class 1, Division 2 certified fixture. Used for visual indication
in hazardous environments, providing a valuable solution to the petrochemical industry facilities.
OPERATING CONDITIONS
Temperatures ranging from -67
o
F to +131
o
F (-55
o
C to
+55
o
C). Will withstand wind in excess of 150 mph
(240 kph), salt fog.
MATERIALS / FINISH
Cast aluminum housing and stainless steel hardware.
Electro-statically applied powdercoat of aviation orange paint.
ELECTRICAL SPECIFICATIONS
VA
(TYP)
50
61
VA
(MAX
65
73
OPERATING
VOLTAGE
120
230
WATTS
(TYP)
10
13
WATTS
(MAX)
18
17
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778
www.dialight.com
120 VAC UNITS (60 Hz)
230 VAC UNITS (50 Hz)
Dialight Europe Ltd.
Exning Road, Newmarket, England, CB8 0AX
Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735
www.dialight-obstruction-lights.com
A Subsidiary of Dialight PLC
MDTF860ATEX004_A
HAZARDOUS LOCATION
LED VISUAL INDICATION LIGHT

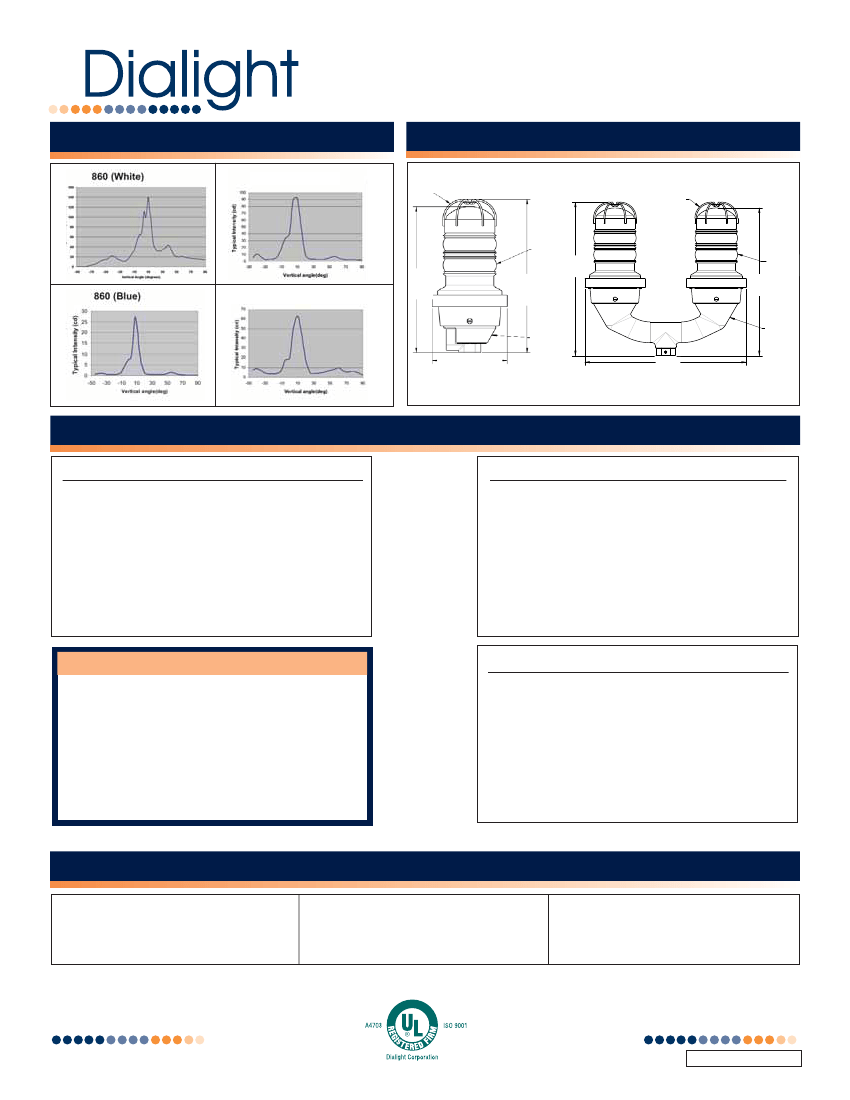

PHOTOMETRIC DATA
860 (Green)
Shield
Shield
MECHANICAL DIMENSIONS
Lens
Assembly
11.21
[284.6]
REF
11.77
[298.9]
REF
14.77
[375.2]
860 (Yellow & Red)
Lens
Assembly
14.21
[360.8]
BI-DIRECTIONAL
WIRE HOUSING
Dual Wire
Housing
15.54
[394.7]
5.79 [147]
REF
Dimensions are in inches [mm]
ORDERING INFORMATION
Single Units
Single, Red
Single, Green
Single, Yellow (Amber)
Single, Blue
Single, White
860-XR0Y-001
860-XG0Y-001
860-XY0Y-001
860-XB0Y-001
860-XW0Y-001
Double Units
Double, Red
Double, Green
Double, Yellow (Amber)
Double, Blue
Double, White
860-XR0Y-002
860-XG0Y-002
860-XY0Y-002
860-XB0Y-002
860-XW0Y-002
note:
X
indicates certification
Y indicates voltage
(See Certification / Voltage Chart)
note:
X
indicates certification
Y indicates voltage
(See Certification / Voltage Chart)
Replacement Light Assemblies
Single, Red
Single, Green
Single, Yellow (Amber)
Single, Blue
Single, White
860-XR0Y
860-XG0Y
860-XY0Y
860-XB0Y
860-XW0Y
CERTIFICATION / VOLTAGE CHART
X = 9:
Y = 1:
Y = 2:
ATEX
120 VAC
230 VAC
note:
X
indicates certification
Y indicates voltage
(See Certification / Voltage Chart)
WEIGHTS & MEASUREMENTS
PART NUMBER
Single Unit
Dual Unit
Dialight Europe Ltd.
Exning Road, Newmarket, England, CB8 0AX
Tel: +44 (0) 1638 666541 • Fax: +44 (0) 1638 561735
www.dialight-obstruction-lights.com
A Subsidiary of Dialight PLC
APPROX. SHIPPING WEIGHT
7.14 lbs
16.06 lbs
CONTAINER DIMENSIONS
16” x 9” x 8”
22” x 17” x 9”
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778
www.dialight.com
MDTF860ATEX004_A
