PS2932-1-V-F3-A datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2932-1-V-F3-A

PS2932-1-V-F3-A: Description1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, THIN, ULTRA SMALL, PLASTIC PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size223KB，14 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PS2932-1-V-F3-A Overview

1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, THIN, ULTRA SMALL, PLASTIC PACKAGE-4

PS2932-1-V-F3-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
package instruction	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, THIN, ULTRA SMALL, PLASTIC PACKAGE-4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	300 V
Configuration	SINGLE
Nominal current transfer ratio	2000%
Maximum dark power	400 nA
Maximum forward current	0.05 A
Maximum insulation voltage	2500 V
JESD-609 code	e6
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Bismuth (Sn/Bi)

Preview

Download Datasheet

View All

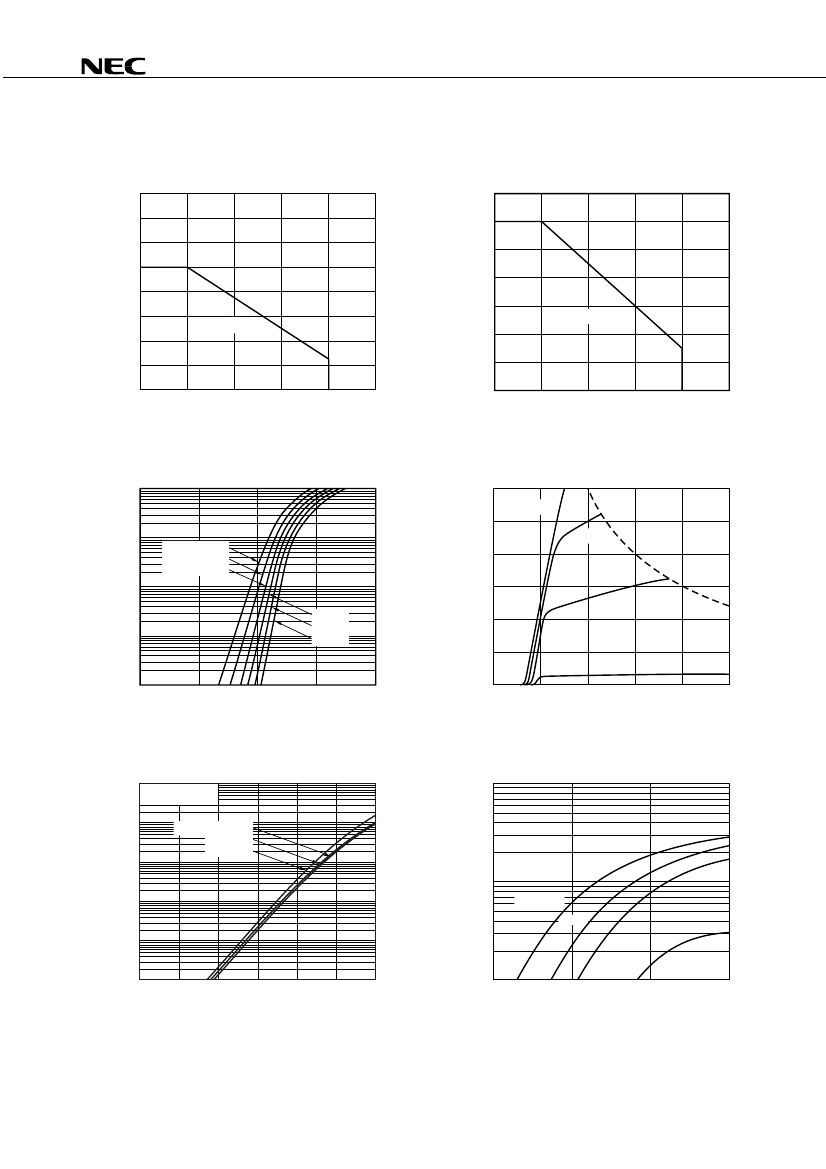

DATA SHEET

PHOTOCOUPLER

PS2932-1,PS2933-1

HIGH COLLECTOR TO EMITTER VOLTAGE

4-PIN ULTRA SMALL FLAT-LEAD

PHOTOCOUPLER

−NEPOC

Series−

DESCRIPTION

The PS2932-1, PS2933-1 are optically coupled isolator containing a GaAs light emitting diode and an NPN silicon

phototransistor in one package for high density mounting applications.

An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 30%

compared with the PS28xx series.

FEATURES

• Small and thin package (4.6 (L)

2.5 (W)

2.1 (H) mm)

• Isolation distance (0.4 mm MIN.)

• High collector to emitter voltage (V

CEO

= 300 V: PS2932-1)

CEO

= 350 V: PS2933-1)

• High isolation voltage (BV = 2 500 Vr.m.s.)

• Ordering number of taping product: PS2932-1-F3, F4: 3 500 pcs/reel

PS2933-1-F3, F4: 3 500 pcs/reel

<R>

• Safety standards

• UL approved: File No. E72422

• BSI approved: No. 8657, 8658

• DIN EN60747-5-2 (VDE0884 Part2) approved (Option)

APPLICATIONS

• Hybrid IC

• Telephone, Exchange equipment, FAX

The information in this document is subject to change without notice. Before using this document, please

confirm that this is the latest version.

Not all products and/or types are available in every country. Please check with an NEC Electronics

sales representative for availability and additional information.

Document No. PN10050EJ02V0DS (2nd edition)

Date Published May 2006 NS CP(K)

Printed in Japan

The mark <R> shows major revised points.

2000, 2006

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

PS2932-1-V-F3-A Related Products

	PS2932-1-V-F3-A	PS2933-1-V-A
Description	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, THIN, ULTRA SMALL, PLASTIC PACKAGE-4	1 CHANNEL DARLINGTON OUTPUT OPTOCOUPLER, 4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, ULTRA SMALL, PLASTIC PACKAGE-4
Is it Rohs certified?	conform to	conform to
package instruction	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, THIN, ULTRA SMALL, PLASTIC PACKAGE-4	4.60 X 2.50 MM, 2.10 MM HEIGHT, LEAD FREE, THIN, ULTRA SMALL, PLASTIC PACKAGE-4
Reach Compliance Code	unknown	compliant
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	300 V	350 V
Configuration	SINGLE	SINGLE
Nominal current transfer ratio	2000%	2000%
Maximum dark power	400 nA	400 nA
Maximum forward current	0.05 A	0.05 A
Maximum insulation voltage	2500 V	2500 V
JESD-609 code	e6	e6
Number of components	1	1
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)
