• Ceramic construction assures the utmost thermal stability & high SRF
• Exceptionally high Q compared to non-wirewound
inductors, especially at high frequencies
• Inductance options from 1.8nH to 560nH
• Epoxy coating protects wound wire
RoHS/RoHS II Compliant
1.80 x 1.12 x 1.02mm
FEATURES:
APPLICATIONS:
• Widely applied in VCO, SAW circuit for GSM,
and CDMA communications
ELECTRICAL SPECIFICATIONS:
Part Number
AISC-0603-
Inductance Code
Units
Symbol
AISC-0603-R0018
AISC-0603-R0027
AISC-0603-R0033
AISC-0603-R0036
AISC-0603-R0039
AISC-0603-R0043
AISC-0603-R0047
AISC-0603-R0051
AISC-0603-R0062
AISC-0603-R0068
AISC-0603-R0075
AISC-0603-R0082
AISC-0603-R0087
AISC-0603-R0091
AISC-0603-R0095
AISC-0603-R010
AISC-0603-R011
AISC-0603-R012
AISC-0603-R013
AISC-0603-R015
AISC-0603-R016
AISC-0603-R018
AISC-0603-R020
AISC-0603-R022
AISC-0603-R023
AISC-0603-R024
AISC-0603-R025
AISC-0603-R027
AISC-0603-R030
AISC-0603-R033
AISC-0603-R036
AISC-0603-R039
AISC-0603-R043
AISC-0603-R047
AISC-0603-R051
AISC-0603-R056
AISC-0603-R062
Inductance
nH
L
1.8
2.7
3.3
3.6
3.9
4.3
4.7
5.1
6.2
6.8
7.5
8.2
8.7
9.1
9.5
10
11
12
13
15
16
18
20
22
23
24
25
27
30
33
36
39
43
47
51
56
62
Tolerance
-
-
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
Min.
Quality
Factor
-
Q
18
25
25
25
25
25
25
21
29
29
33
31
31
30
26
30
35
35
35
37
37
37
37
38
40
40
40
38
38
40
40
40
40
36
35
38
36
L/Q Test
Freq.
MHz
Freq.
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
200
200
200
200
Max. DC
Resistance
Ω
DCR
0.043
0.043
0.059
0.059
0.059
0.059
0.065
0.130
0.095
0.095
0.095
0.095
0.095
0.120
0.160
0.130
0.130
0.130
0.130
0.150
0.150
0.150
0.150
0.190
0.190
0.190
0.190
0.190
0.210
0.210
0.220
0.220
0.270
0.270
0.300
0.350
0.380
Max. Rated
Current
mA
Ir
1000
1000
850
850
850
850
800
600
700
700
700
700
700
620
540
600
600
600
600
550
550
550
550
490
490
490
490
490
470
470
460
460
400
400
390
360
350
Min. Self-resonant
Frequency
MHz
S.R.F
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
>
6000
6000
6000
6000
6000
6000
6000
6000
5500
5500
4900
4600
3800
3800
3700
3700
3300
3200
2900
2800
2700
2600
2400
2400
2300
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 09.16.13
30332 Esperanza, Rancho Santa Margarita, California
92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
CERAMIC WIRE WOUND INDUCTORS
AISC-0603

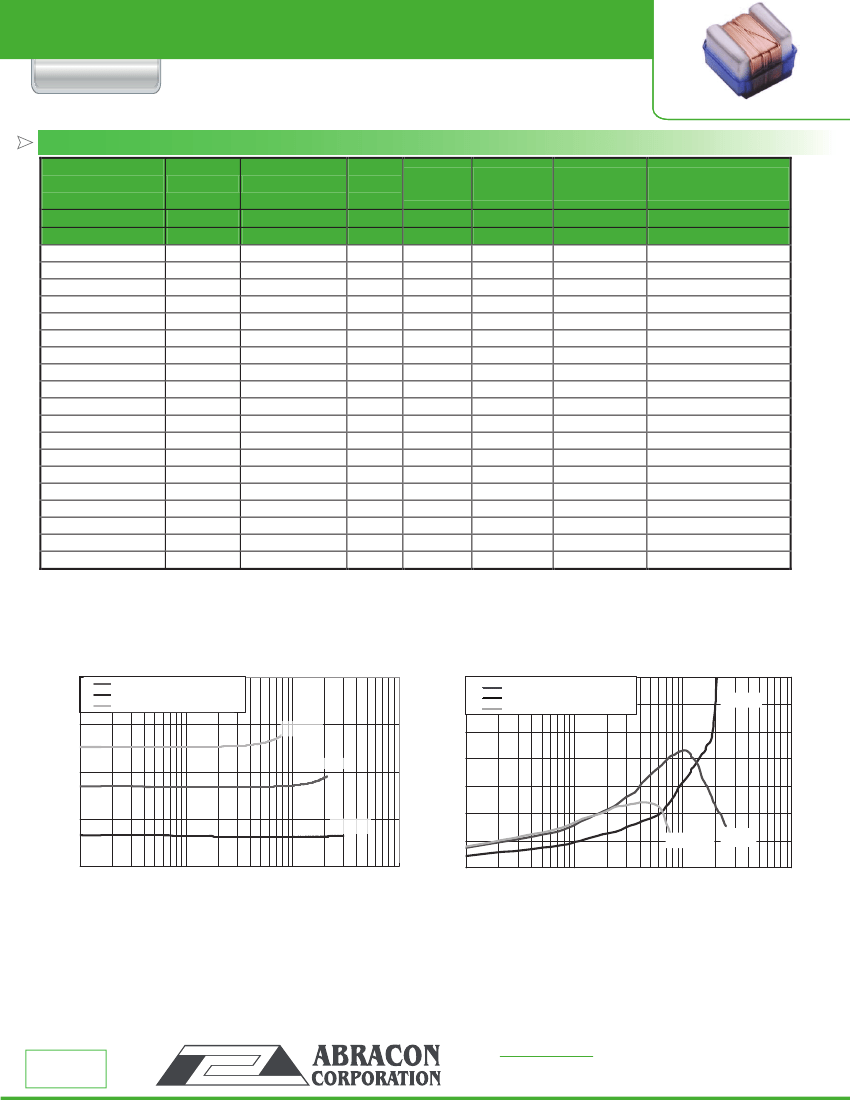

ELECTRICAL SPECIFICATIONS (cont’d):
Part Number
AISC-0603-
Inductance Code
Units
Symbol
AISC-0603-R068
AISC-0603-R072
AISC-0603-R082
AISC-0603-R091
AISC-0603-R10
AISC-0603-R11
AISC-0603-R12
AISC-0603-R15
AISC-0603-R16
AISC-0603-R18
AISC-0603-R20
AISC-0603-R22
AISC-0603-R25
AISC-0603-R27
AISC-0603-R33
AISC-0603-R39
AISC-0603-R42
AISC-0603-R47
AISC-0603-R56
Inductance
nH
L
68
72
82
91
100
110
120
150
160
180
200
220
250
270
330
390
420
470
560
Tolerance
-
-
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
C, S, D, G,
J, K
Min.
Quality
Factor
-
Q
36
34
34
34
31
32
32
32
32
25
25
25
25
26
26
27
27
27
27
L/Q Test
Freq.
MHz
Freq.
200
150
150
150
150
150
150
150
150
100
100
100
100
100
100
100
100
100
100
Max. DC
Resistance
Ω
DCR
0.380
0.430
0.500
0.520
0.660
0.730
0.750
1.120
1.120
1.380
1.900
2.100
2.800
3.000
4.200
4.500
5.400
5.700
8.100
Max. Rated
Current
mA
Ir
350
320
300
300
260
250
240
200
200
180
150
140
120
120
100
100
90
90
70
Min. Self-resonant
Frequency
MHz
S.R.F
2200
2100
2000
1900
1800
1700
1600
1400
1400
1300
1250
1200
1100
960
800
800
800
700
650
RoHS/RoHS II Compliant
1.80 x 1.12 x 1.02mm
Definition of Rated Current (Ir): Ir is direct electric current as chip surface temperature rose just 20
º
C against chip initial surface temperature (Ta)
Operating Temperature:
-40ºC to +125ºC
Storage Temperature:
10000
-10ºC to +40ºC, 70% RH max.
140
120
SDWL1608C3N9
□STF
R047
R0039
SDWL1608C47N
□STF
R33
SDWL1608CR33
□STF
330nH
SDWL1608C3N9
□STF
R047
R0039
SDWL1608C47N
□STF
R33
SDWL1608CR33
□STF
3.9nH
1000
100
100
Q
60
40
47nH
80
10
3.9nH
20
330nH
47nH
1
10
100
1000
10000
0
10
100
1000
10000
Frequency (MHz)
Frequency (MHz)
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 09.16.13
30332 Esperanza, Rancho Santa Margarita, California
92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
CERAMIC WIRE WOUND INDUCTORS
AISC-0603

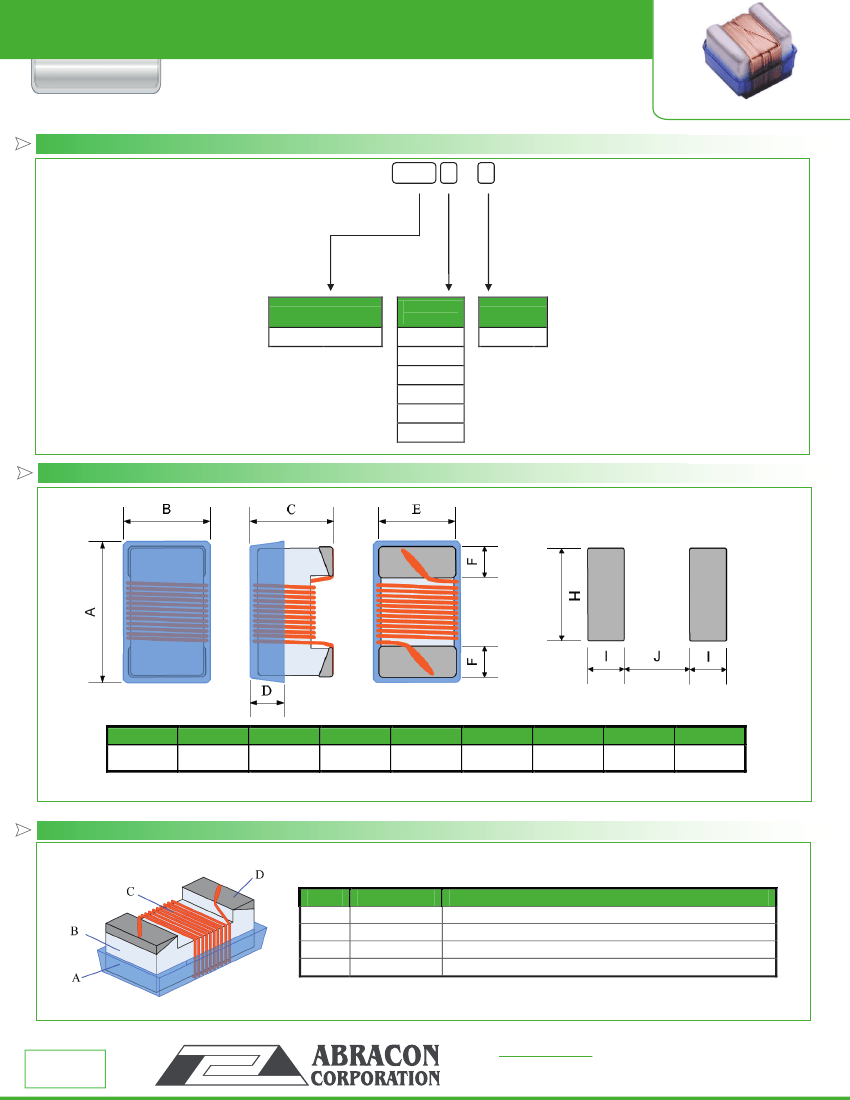

OPTIONS AND PART IDENTIFICATION:
RoHS/RoHS II Compliant
1.80 x 1.12 x 1.02mm
AISC-0603-
-
Inductance Code
Please
refer to the Table
Tolerance
Code
C: ± 0.2nH
S: ± 0.3nH
D: ± 0.5nH
G:
±2%
J: ±5%
K:
±10%
Packaging
T: 3kpcs/reel
MECHANICAL DIMENSIONS:
A
MAX.
1.8
B
MAX.
1.12
C
MAX.
1.02
D
REF.
0.38
E
REF.
0.80
F
REF.
0.30
H
REF.
1.02
I
REF.
0.64
J
REF.
0.64
Dimension: mm
MATERIALS:
No.
A
B
C
D
Components
Coating
Core
Wire
Electrodes
Material
Ultraviolet epoxy resin
Ceramic
Polyurethane system enameled copper wire
Ag-Pd with Ni and Au plating
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 09.16.13
30332 Esperanza, Rancho Santa Margarita, California
92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit
www.abracon.com
for Terms & Conditions of Sale
CERAMIC WIRE WOUND INDUCTORS
AISC-0603

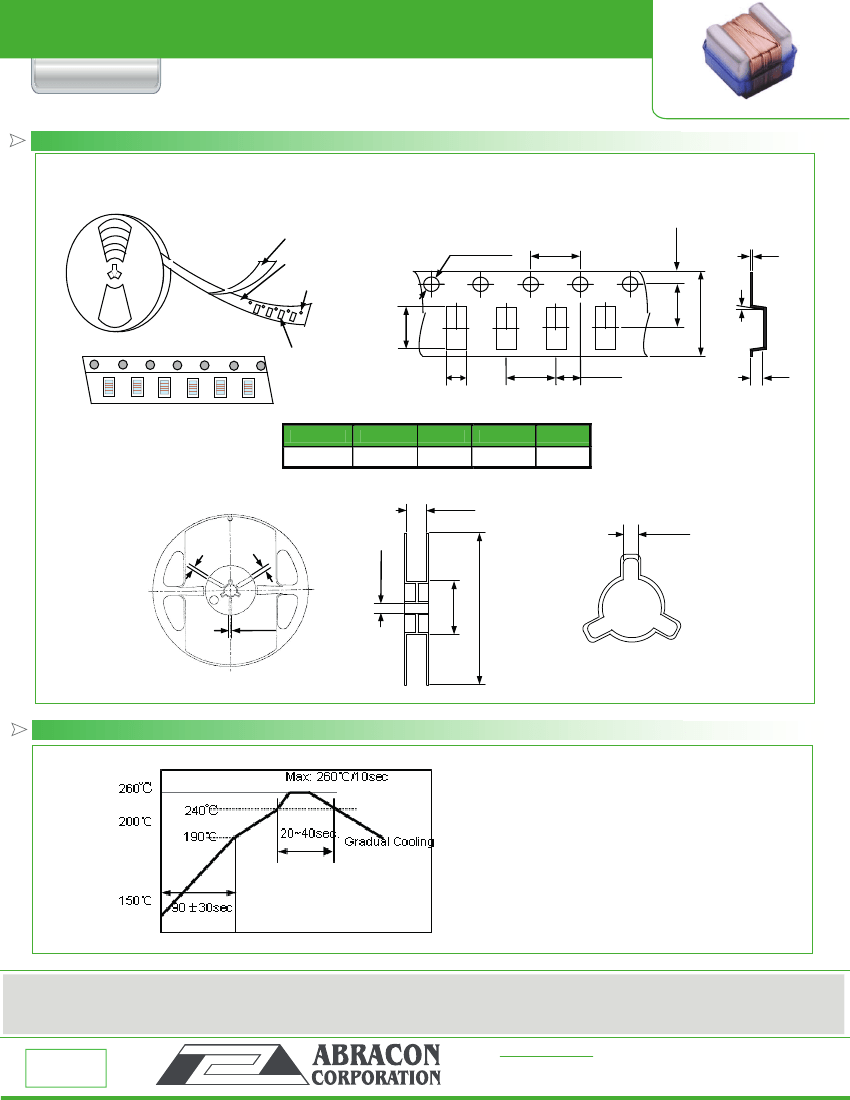

PACKING:
T= tape and reel (3,000pcs/reel)
Embossed Tape
1.75±0.1
RoHS/RoHS II Compliant
1.80 x 1.12 x 1.02mm
Top Tape
Embossment
Sprocket Hole
Φ1.5(+0.1/ -0)
4.0±0.1
T
3.5±0. 1
8.0± 0.3
5
0
5
°
Chip Cavity
B
A
P
2.0±0.1
K
A
1.12
±0.05
B
1.80
±0.05
P
4.0±0.
1
10
±1.5
K Max
0.96±0.05
T Max
0.3±0.1
2.45 ±0.2
4.0±0.1
5.0
±0.1
13.5
±0.2
3.0
±0.1
Dimension: mm
REFLOW PROFILE:
ATTENTION:
Abracon Corporation’s products are COTS
–
Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automo-
tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-
ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme
operating environment, written consent and authorization from Abracon Corporation is required.
Please
contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
178
±2
58
±2
• 1~2
ºC
/sec. Ramp
• Pre-heating: 150~190
ºC
/90±30 sec.
• Time above 240
ºC
: 20~40sec
• Peak temperature: 260
ºC
Max./10sec.
• Solder paste: Sn/3.0Ag/0.5Cu
• Max.2 times for re-flowing
Revised: 09.16.13
30332 Esperanza, Rancho Santa Margarita, California
