BAT85/D7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT85/D7

BAT85/D7: DescriptionRectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, DO-204AH, GLASS, DO-35, 2 PIN; CategoryDiscrete semiconductor diode; File Size59KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

BAT85/D7 Overview

Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, DO-204AH, GLASS, DO-35, 2 PIN

BAT85/D7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	DO-35
package instruction	O-LALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FAST SWITCHING
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.24 V
JEDEC-95 code	DO-204AH
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.6 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	NO
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL

BAT85/D7 Preview

BAT85

Schottky Diode

Features

• For general purpose applications.

• This diode features low turn-on voltage. This device is

protected by a PN junction guard ring against excessive

voltage, such as electrostatic discharges

• This diode is also available in the MiniMELF case with

type designation BAS85.

DO-204AH (DO-35 Glass)

Mechanical Data

Case:

DO-35 Glass Case

Weight:

approx. 0.13g

Packaging Codes/Options:

D7/10K per 13” reel (52mm tape), 20K/box

D8/10K per Ammo tape (52mm tape), 20K/box

Dimensions in inches

and (millimeters)

Maximum Ratings & Thermal Characteristics

Parameter

Continuous Reverse Voltage

Forward Continuous Current at T

amb

= 25°C

Peak Forward Current at T

amb

= 25°C

Surge Forward Current at t

< 1s, T

amb

= 25°C

Power Dissipation at T

amb

= 65°C

Thermal Resistance Juntion to Ambient Air

Maximum Junction Temperature

Ambient Operating Temperature Range

Storage Temperature Range

Symbol

FSM

tot

θJA

= 25°C unless otherwise noted)

Ratings at 25°C ambient temperature unless otherwise specified.

Value

200

(1)

300

(1)

600

(1)

200

(1)

430

(1)

125

–65 to +125

–65 to +150

Unit

°C/W

°C

Electrical Characteristics

Parameter

Reverse Breakdown Voltage

Leakage Current

Symbol

(BR)R

Test Condition

R =

10µA (pulsed)

= 25V

= 0.1mA

= 1mA

= 10mA

= 30mA

= 100mA

= 1V, f = 1MHz

= 10mA to I

= 10mA

to I

= 1mA

Min

—

Typ

—

0.5

—

Max

—

0.24

0.32

0.4

—

0.8

Unit

µA

Forward Voltage

Pulse Test t

< 300

µs, δ

< 2%

Capacitance

Reverse Recovery Time

tot

7/2/01

Note:

(1) Valid provided that leads at a distance of 4mm from case are kept at ambient temperature

BAT85

Schottky Diode

Ratings and

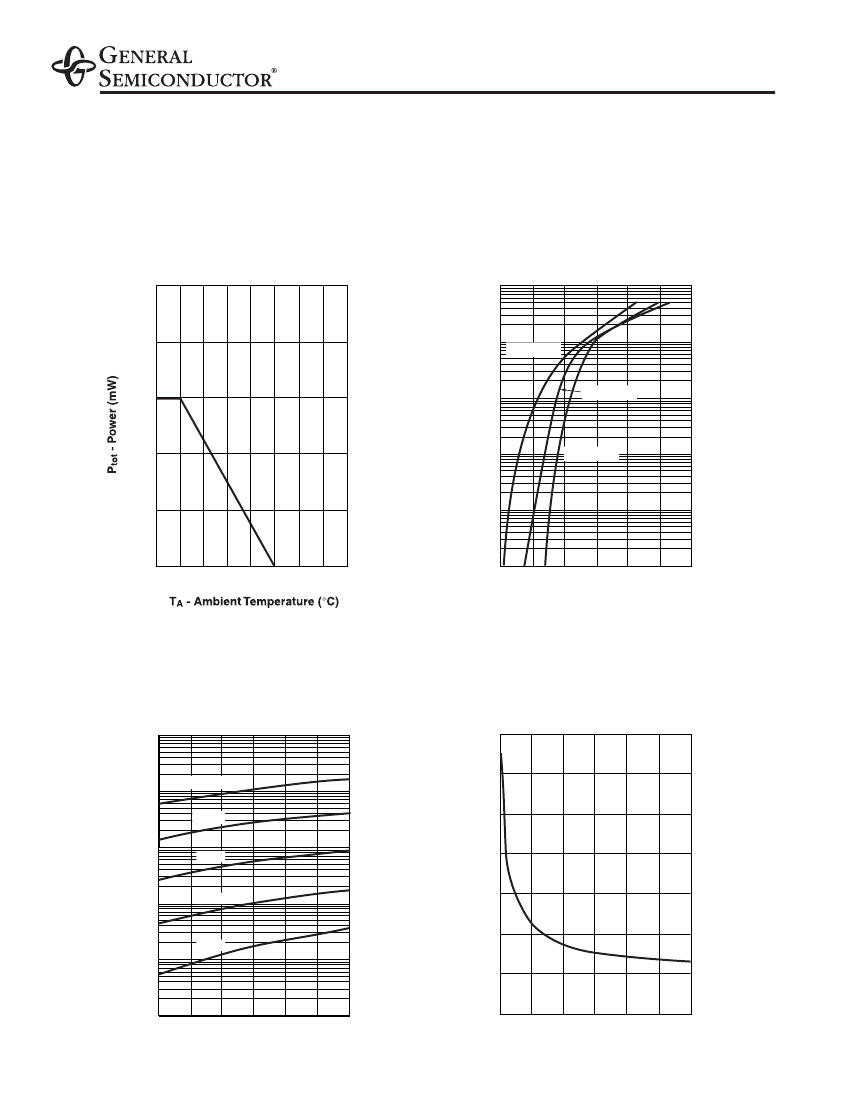

Characteristic Curves

Admissible Power Dissipation

vs. Ambient Temperature

BAT85

1000

Typical Instantaneous

Forward Characteristics

BAT85

200

- Forward Current (mA)

100

= 125°C

= 25°C

100

= -40°C

0.1

100

200

0.01

0.2

0.4

0.6

0.8

1.2

- Forward Voltage (V)

Typical Reverse Characteristics

Typical Junction Capacitance

BAT85

1000

- Junction Capacitance (pF)

BAT85

- Reverse Leakage Current (µA)

100

= 125°C

100°C

75°C

50°C

25°C

0.1

0.01

- Reverse Voltage (V)

10 15

- Reverse Voltage (V)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BAT85/D7 Related Products

	BAT85/D7	BAT85/D8
Description	Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, DO-204AH, GLASS, DO-35, 2 PIN	Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, DO-204AH, GLASS, DO-35, 2 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible
Maker	Vishay	Vishay
Parts packaging code	DO-35	DO-35
package instruction	O-LALF-W2	O-LALF-W2
Contacts	2	2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	FAST SWITCHING	FAST SWITCHING
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.24 V	0.24 V
JEDEC-95 code	DO-204AH	DO-204AH
JESD-30 code	O-LALF-W2	O-LALF-W2
JESD-609 code	e0	e0
Maximum non-repetitive peak forward current	0.6 A	0.6 A
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Maximum output current	0.2 A	0.2 A
Package body material	GLASS	GLASS
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Maximum power dissipation	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	30 V
Maximum reverse recovery time	0.005 µs	0.005 µs
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
