Card Connector
4 in 1 Card
Connector
CLE 9041-0120G
■

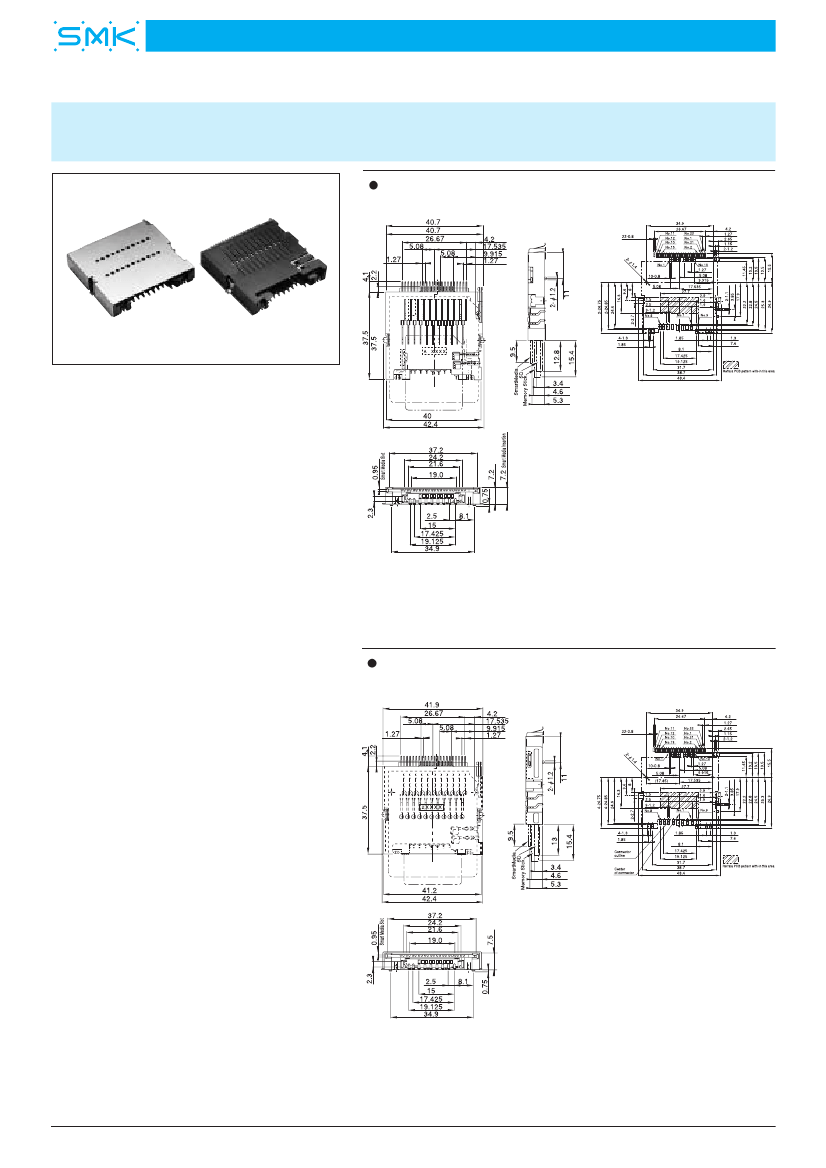

P.C. Board Dimension
■
Features
1. A connector designed to be reflow solderable and to
accept a SmartMediaTM in the top slot and Memory
StickTM or SD Card or MMC in the bottom slot.
2. With a switch for card detection and write protection.
3. Reinforcement hardware provided for increased bonding
strength to the PWB.
4. Reflow-solderable.
5. An ESD resistant version of grounding shell structure is
also available.
1. Rating : 0.5A 5V AC
2. Contact Resistance : 100mΩ max.
3. Insulation Resistance : 1000MΩ, min.
4. Withstanding Voltage : 500V AC for one minute
5. Operating Life : 12,000 cycles (Memory StickTM)
10,000 cycles (SD cards, MMC, Sngt Melin)
6. Operating Temperature Range : –20˚C to +85˚C
■
Specifications
■
Material and Plating
●
●
Housing: Liquid Crystal Polymer (LCP), Black, 94V-0
Contact: Phosphor Bronze, Gold Plating (contact section)
Tin-lead Plating (terminal section)
●
Plate: Phosphor Bronze, Tin-lead Plating
■
Note
Please contact our sales agent for lead-free product.
CLE 9041-0201G
(with ESD)
■
P.C. Board Dimension
¡Memory
Stick
TM
is trademark of Sony Corporation.
¡SmartMedia
TM
is trademark of Toshiba Corporation.
¡‘SD
Memory Card’ is a small memory card is a joint development by
Matsushita Electric Industrial Co., Ltd., SanDisk Corporation in the
USA and Toshiba Corporation.
¡MMC
(Multi Media Card) is trademark of Infinion Technologies in the
Germany.
