IMGAC-5B: DescriptionPower/Signal Relay, DPDT, Momentary, 0.1A (Coil), 5VDC (Coil), 500mW (Coil), 1A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,; CategoryMechanical and electronic products relay; File Size144KB，2 Pages; ManufacturerHi-G Relays

Download Datasheet Parametric Compare View All

IMGAC-5B Overview

Power/Signal Relay, DPDT, Momentary, 0.1A (Coil), 5VDC (Coil), 500mW (Coil), 1A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount,

IMGAC-5B Parametric

Parameter Name	Attribute value
Maker	Hi-G Relays
Reach Compliance Code	unknown
ECCN code	EAR99
body height	7.11 mm
Body length or diameter	9.53 mm
Maximum coil current (DC)	0.1 A
Coil operating voltage (DC)	3.5 V
Coil power	500 mW
Coil release voltage (DC)	0.14 V
Coil resistance	50 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.25A@115VAC
Maximum contact current (AC)	0.25 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Installation features	PANEL MOUNT
operating hours	3.5 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	GOLD
Termination type	WIRE

Preview

Download Datasheet

View All

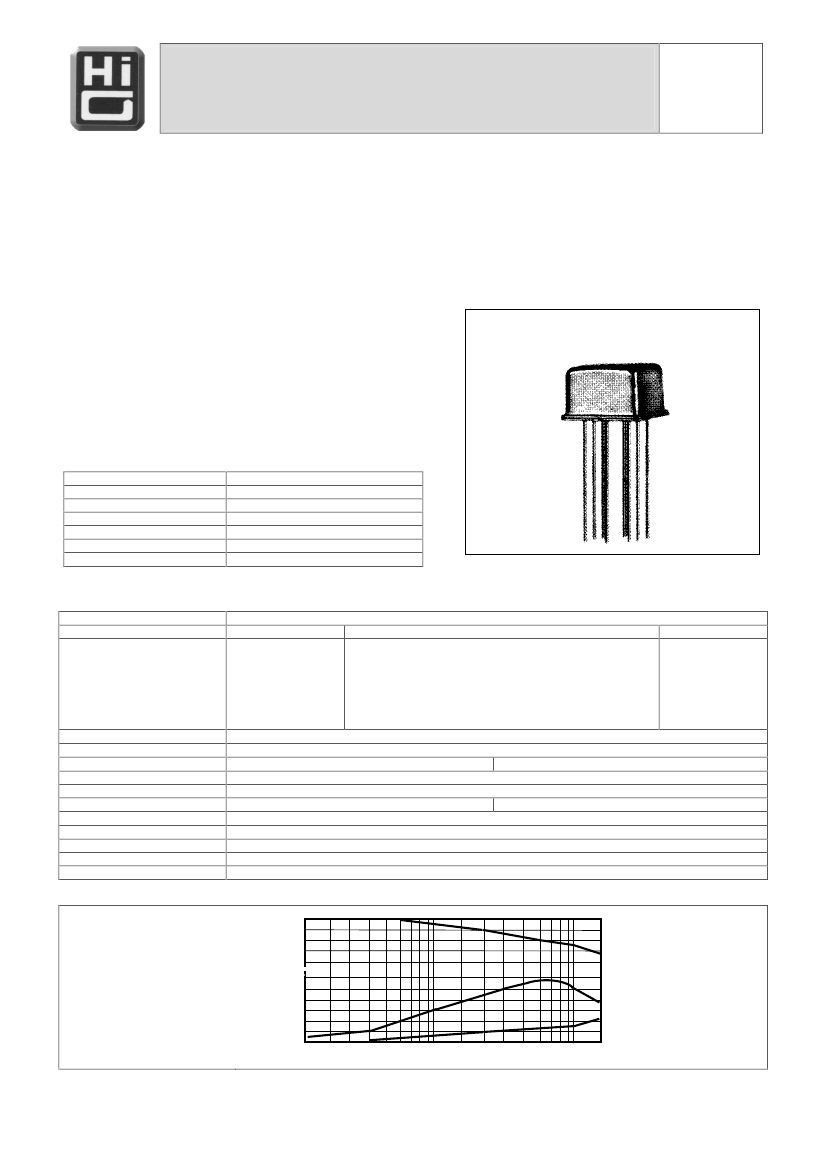

100 GRID TERMINAL RELAY

DPDT



Basic



Suppression



Suppression/Steering

Product Description

Series

I MGA

A series of ultra miniature hermetically sealed relays with .100 inch grid spaced terminations. These relays are similar to MA series TO-5 relays

construction.

The following construction features ensure the highest reliability in extreme environments:

All welded relay construction

Cleaning and sealing techniques ensures maximum internal cleanliness

Low level to 1 ampere switching

2 form C, DPDT contacts, special metal alloy with gold plating

Frame design and force / mass ratio provides exceptional shock and vibration immunity

Low intercontact capacitance and contact circuit losses, provides also a reliable switching functions in demanding RF applications, combined with small

size and low coil power dissipation (see figure 1).

MIL-PRF-39016/17, 18 & 19

Series Types

(note 1)

IMGA*

Basic Relay, 2 form C, DPDT

IMGA*D

Basic Relay combined with an internal diode for coil

transient suppression

IMGA*DD

Basic Relay incorporates two internal diodes for coil

transient suppression and polarity reversal protection

Environmental and Physical Specifications

Temperature (Ambient)

Shock

Vibration (sinusoidal)

Vibration (random)

Acceleration

Sealing

Weight

- 65°C

to + 125°C

75 g, 6 ms.

30 g, 10 to 3000 Hz

0,4 g²

/ Hz, 50 to 2000 Hz

50 g

All welded, Hermetic

0,09 oz. (2,55 grams) max.

Electrical Characteristics

(over the Temperature range. Unless otherwise noted)

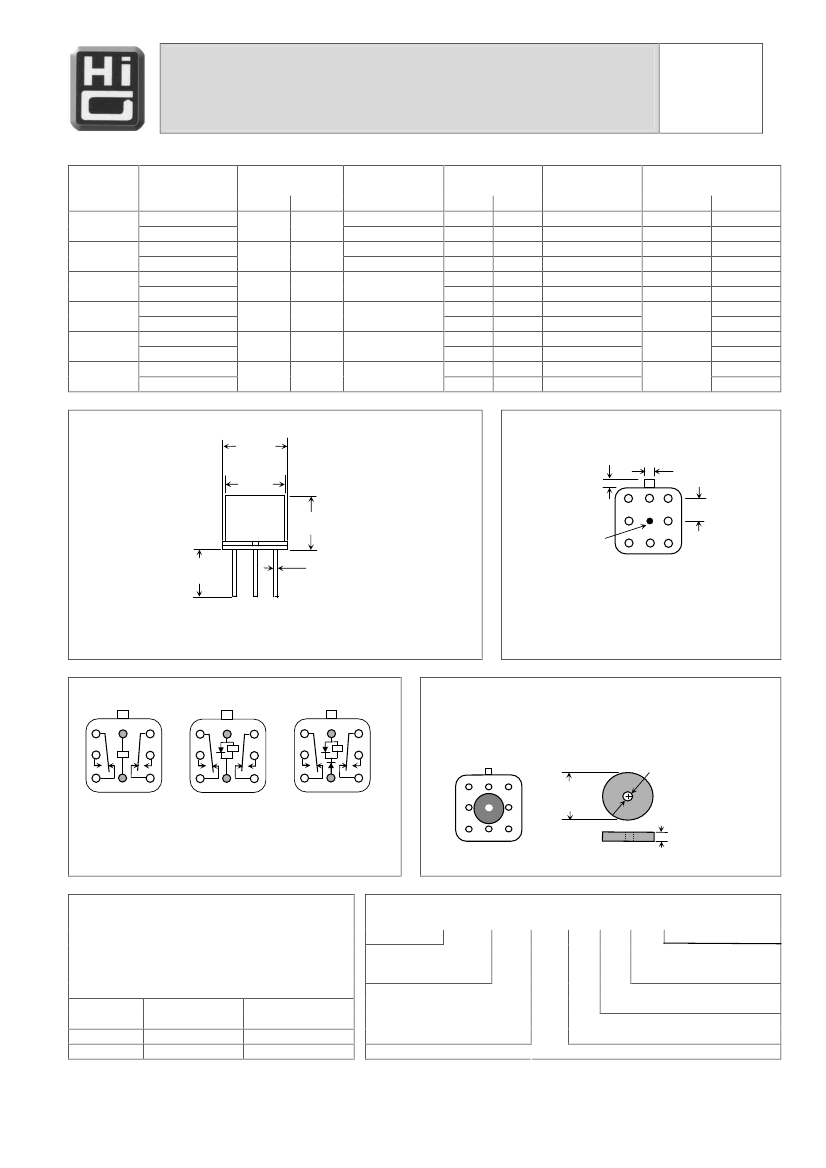

Coil Data

Contact Rating

(Note: All ratings with grounded

case)

See Typical Characteristics chart

Type Load

Contact Load

Cycles min.

Low Level

1.000.000

10 to 50

A

/ 10 to 50 mV

Resistive

100.000

1 A / 28 Vdc

100.000

250 mA / 115Vac, 60 and 400 Hz (Case not grounded)

100.000

100 mA / 115 Vac, 60 and 400 Hz

Resistive overload

100

2 A / 28 Vdc

Inductive

100.000

200 mA / 28 Vdc (320 mH)

Lamp

100.000

100 mA / 28 Vdc

0,1



max. initial, 0,2



max. after life

2,0 ms. max.

1,5 ms. max. Series: IMGA*

4,0 ms. max. Series: IMGA*D, IMGA*DD

1,5 ms. max.

2,5 ms. max.

500 Vrms min., 60 Hz, all points at sea level

125 Vrms min., 60 Hz, all points at 70.000 ft.

10.000 M min. all points at 500 Vdc

0,4 pF typical

130 mW at pick-up, 500 mW at nominal rated coil voltage, at 25

°C

100 Vdc min. Series: IMGA*D, IMGA*DD

1,0 Vdc max. Series: IMGA*D, IMGA*DD

Contact Resistance

Operate Time

Release Time

Contact Bounce

Contact Stabilisation Time

Dielectric Strength

Insulation Resistance

Intercontact Capacitance

Sensitivity

Diode P.I.V.

Negative Coil Transient

Figure 1 - Radio Frequency Curves

1,0

0,8

0,6

0,4

0,2

–

Insertion loss

–

Return loss (VSWR)

–

Isolation across contacts

1,9

Note:

Radio frequency curves are typical

characteristics based on factory

knowledge.

Tests

ensure

compliance on RF performance, are

not performed.

1,2

VSWR

1,1

0,01

0,05

0,01

0,5

1,0

2,0

FREQUENCY (GHz)

Hi-G ITALIA S.r.l.

Tel: + 39 06 9699666

SS. Appia Km. 56.420

Fax: + 39 069698688

Cisterna di Latina - Italy

REV. 10/2006
