8516N-05: DescriptionFixed Attenuator, 10MHz Min, 2000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

8516N-05 Overview

Fixed Attenuator, 10MHz Min, 2000MHz Max, ROHS COMPLIANT PACKAGE

8516N-05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Other features	N-F; N-M
Nominal attenuation	5 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	2000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.15

8516N-05 Preview

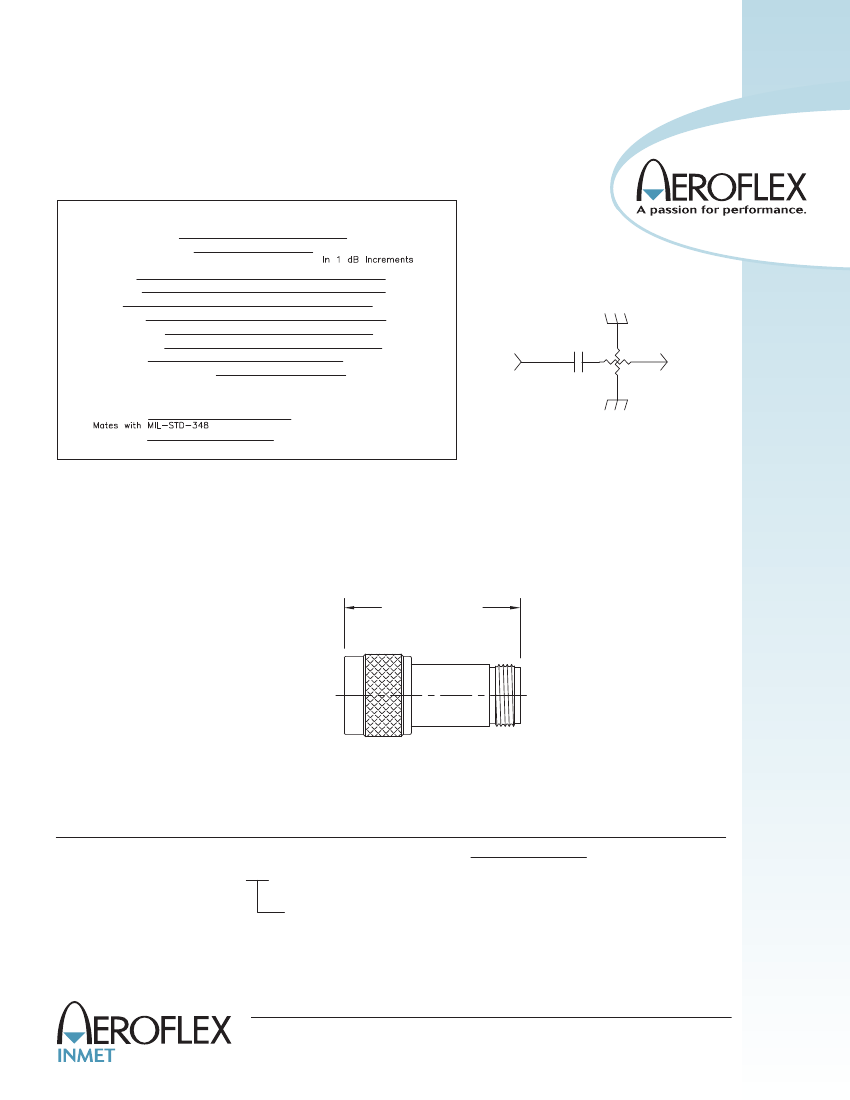

DC BLOCKING ATTENUATOR

Type N, 10 MHz - 2 GHz, 200 Volts

SPECIFICATIONS:

Models: 8516N - XX

Electrical:

Frequency Range

Standard dB Values*

Accuracy of Attenuation:

1 - 6 dB

7 - 20 dB

VSWR:

Impedance:

DC Block Type

Voltage Rating

Input Power

Operating Temp. Range

10 MHz - 2 GHz

0 - 10, 12, 15 & 20 dB

± 0.3 dB

± 0.5 dB

1.15:1 Max.

50 Ohms

Inner Only

200 Volts

2 Watts Average

-65°C to +125°C

RF in

RF out

Mechanical:

Connectors:

Conductors:

Passivated Stainless Steel

Gold Plated Beryllium Copper

Schematic Diagram

Unit is a unidirectional device. Input shall be at male port unless otherwise specified.

Model Number:

8516N-XX

Male/Female Connectors

1.76±.03

[44.69±0.76]

HOW TO ORDER:

Model Number:

8516N-XX

dB Value

Ordering Examples:

Model Number:

8516N-20

2 GHz; 20 dB; TYPE N - Male/Fem

Model Number:

8516N-05

2 GHz; 5 dB; TYPE N - Male/Fem

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

8516N: REV B

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
