KS628-04TT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> KS628-04TT

KS628-04TT: DescriptionIC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,; CategoryThe connector socket; File Size158KB，2 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric View All

KS628-04TT Overview

IC Socket, DIP28, 28 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,

KS628-04TT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Advanced Interconnections Corp.
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SOCKET ADAPTER
body width	0.7 inch
subject depth	0.12 inch
body length	1.4 inch
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER/COPPER ALLOY
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP28
Shell material	POLYIMIDE
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	400 °C
Minimum operating temperature	-269 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

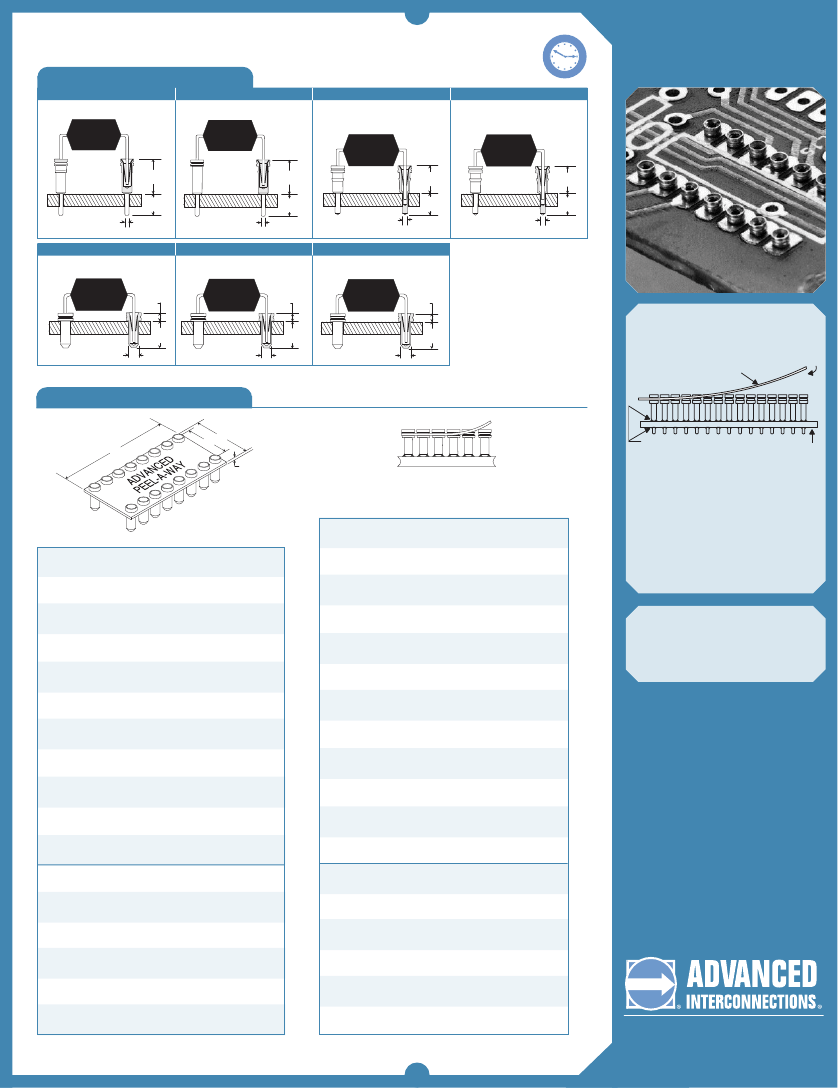

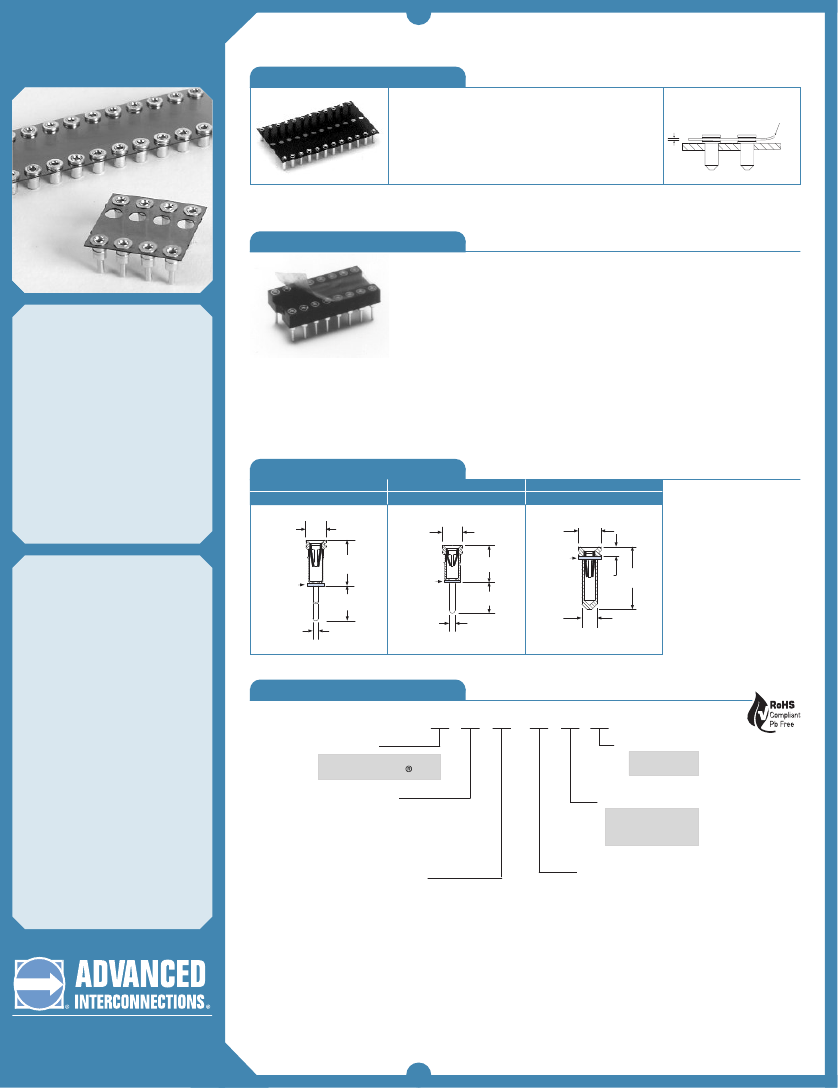

DIP Sockets

Table of Models

Peel-A-Way DIP Socket Terminal Carriers

Description:

Peel-A-Way

Socket (KS)

Material: Polyimide Film

Index: -269°C to 400°C (-452°F to 752°F)

.005

(.13)

Polyimide

Film

For molded insulators, see pages 28-29.

Options

Tape Seal - add 3M to end of part number

• Removable tape seal protects plated contact in harsh environments

Features:

• Peel away terminal carrier after

soldering.

• Disposable carrier.

• Complete soldering visibility on

both sides of PCB.

• Maximum air flow.

• Better flux rinse.

• No contact damage due to

terminal carrier insertion.

• No contact pull out due to

extraction of terminal carrier.

(shown here on

molded socket)

• Sealed socket will not allow dirt and other contaminants to enter

socket chamber and become entrapped behind contact fingers

• Spray flux without contaminating contact area

Material

Silicone Backed Polyimide Film, -74°C to 260°C (-100°F to 500°F)

Intermittent to 371°C (700°F)

Solder Preform Terminals

Tin/Lead: Type -150

Lead-free: Type -811

.072 Dia.

(1.83)

See pg. 29 for intrusive reflow application.

Tin/Lead: Type -111

Lead-free: Type -810

Peel-A-Way

only

.072 Dia.

(1.83)

.130

(3.30)

.058 Dia.

(1.47)

Tin/Lead: Type -151

Lead-free: Type -812

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Contacts:

Beryllium Copper - Copper Alloy

(C17200) ASTM-B-194

Solder Preform:

Standard: 63Sn/37Pb

Lead-free: 95.5Sn/4.0Ag/0.5Cu

Plating:

G - Gold over Nickel

M - Matte Tin over Nickel

T - Tin/Lead over Nickel

Gold per ASTM-B-488

Matte Tin per ASTM545-97

Tin/Lead per MIL-P-81728

Nickel per QQ-N-290

.165

(4.19)

Solder

Preform

.125

(3.18)

.020 Dia.

(.51)

Solder

Preform

.031

(.79)

.155

(3.94)

Solder

Preform

.110

(2.79)

.020 Dia.

(.51)

.038 Dia.

(.97)

How To Order

Body Type

RoHS Compliant Insulators:

- 85

Contact Plating

RoHS Compliant:

KS - Peel-A-Way

DIP Spacing

3 - .300/(7.62mm)

4 - .400/(10.16mm)

6 - .600/(15.24mm)

9 - .900/(22.86mm)

Number of Pins

(8 to 64)

Additional sizes available - consult factory.

G - Gold

T - Tin/Lead

Terminal Plating

RoHS Compliant:

G - Gold

M - Matte Tin

T - Tin/Lead

Terminal Type

See options on next page

Note: Terminals plated with Matte Tin are available only with Gold plated contacts.

Quick-Turn delivery is not available on products with Matte Tin plating.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Catalog 16

rev. Sept. 07

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

inch/(mm)
