QM (1.78mm-.070") CONNECTORS-"MICRO 70"
General

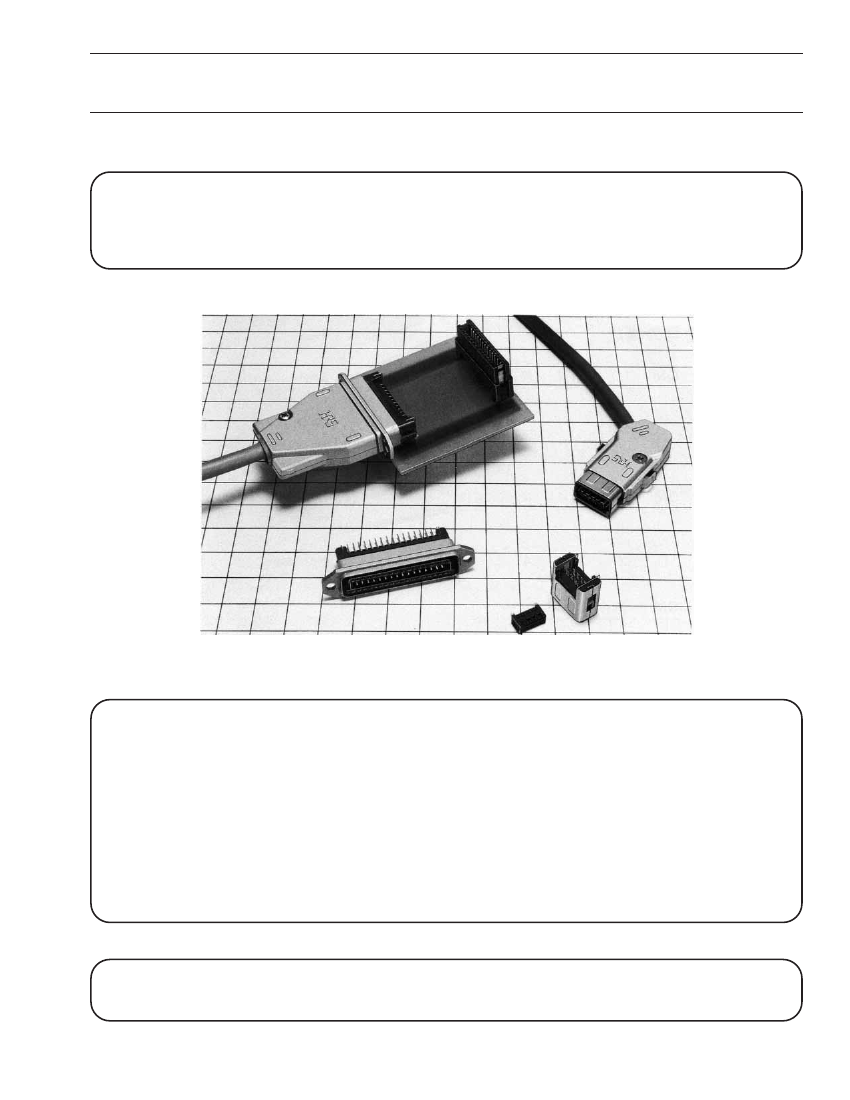

Designed to fill the needs of high density and miniature
interconnection, the QM series are Super-Small IDC
Connection. This IDC plug uses I/O Cable <AWG # 30>
with 0.89mm (.035") spacing. This new QM connector-
design ensures RFI/EMI shielding protection. Available
in 8, 14, 26, and 32 way.
Features
(1) 1.78mm (.070") grid contact position enables high den-
sity designs.
(2) Ribbon construction of contacts provides excellent
mechanical strength.
(3) Capable group IDC termination of 0.89 mm (.035") pitch
cable <AWG No.30> to achieve labor saving in con-
nection work.
(4) The connectors can be grounded to the PCB to isolate
EMI/FRI generated from the cable and connector as
well as latched to PCB.
(5) Zinc alloy die-cast shell and Metallic shell reduce the
penetration of external EM noise.
(6) Hood type and with Lock mechanism type are available
for Cover shell. One touch lock mechanism assures
easy and quick connection.
Applications
Suitable for personal terminals, peripherals and terminals.
04/2009
177
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

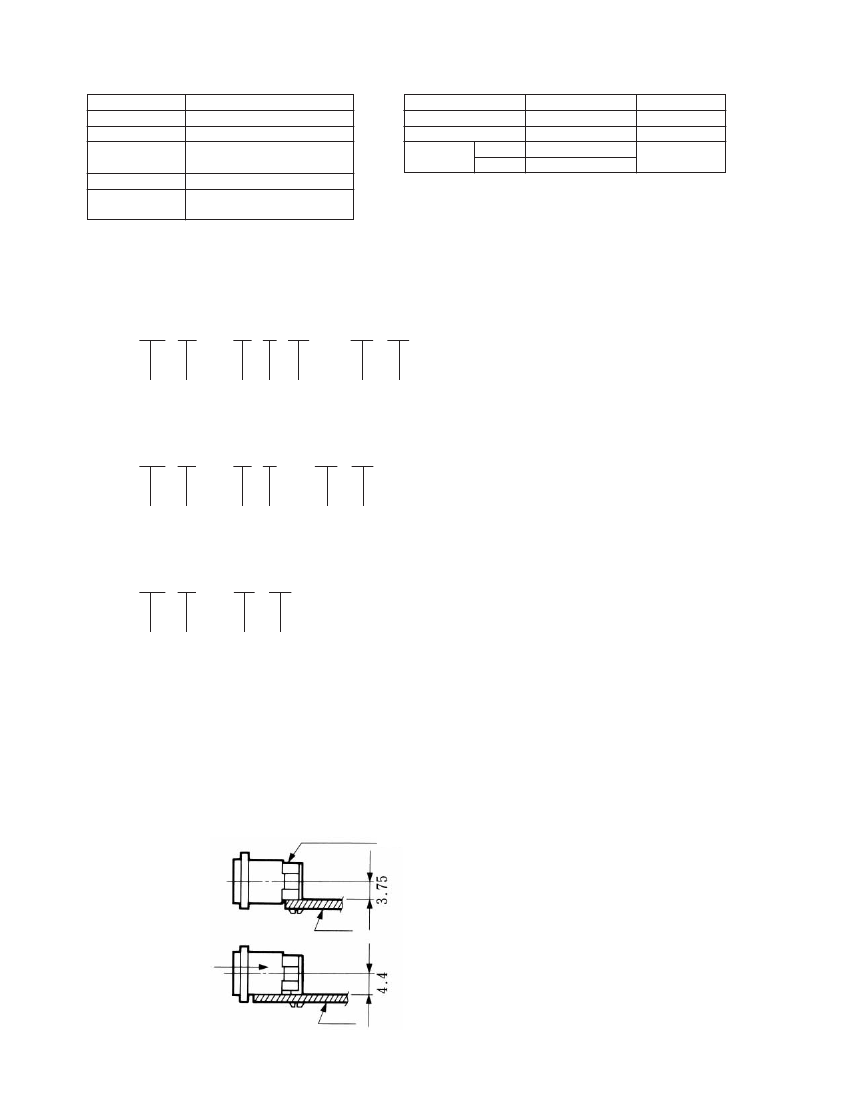

Specifications
Item
Current Rating
Voltage
Insulation
Resistance
Contact Resistance
Withstanding
Voltage
0.5A
AC100V
100M Ω or more DC100V
35m Ω or less DC100mA
300V for 1 minute
Specification
Material and Finish
Item
Hood
Insulation
Contact
Pin
Socket
Material
Zinc alloy die-cast
PET Resin
Beryllium copper
Phosphor bronze
Finish
Silver finish
Black
Selective gold
plating
Ordering Information
QM 10
−
14 R
(
L
)
−
PR
( )
(1) Series Number: QM
(2) Series sign for series
10: Right Angle P.C. Mount receptacle
20: Straight P.C. Mount receptacle
30: IDC Plug
40: Solder Type
(3) No. of Pins: 8, 14, 26 and 32 way
(4) Type of opening
P: Plug (for Hood cover)
PA: Plug (for cover with Lock mechanism)
R: Receptacle
(5) Type of Shell Latch mounting
Blank: Connector unit on a level with PCB.
(see Fig 1)
L: Protector on a level with PCB
(see Fig 2)
(6) Accessories
CS: Cover case with Lock mechanism
CV: Hood cover case
CF: Hood
PR: Protector
CF1: Hood
PR1: Protector (Without mounting hole)
EP: Ground Plate
SP: Stopper Plate
(7) Specification
(50): RoHS compliant
(1)
(2)
(3) (4) (5)
(6)
(7)
QM 30
−
14 P
−
EP
( )
(1)
(2)
(3) (4)
(6)
(7)
QM 14
−
CS
( )
(1)
(3)
(6)
(7)
Connector Unit
Fig. 1
Fig. 2
Protector
PCB
178
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Plug Connector

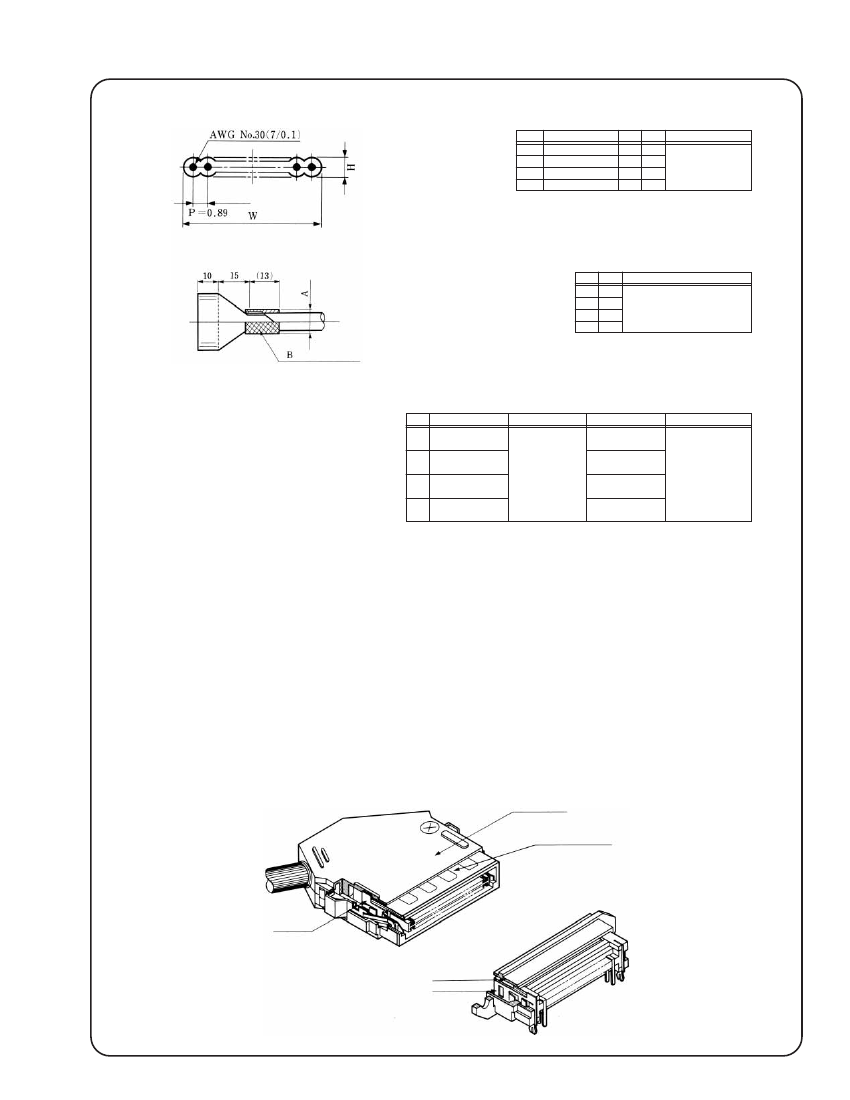

1. Applicable Cable
No.of Core
8
14
26
32
Size
AWG No.30
AWG No.30
AWG No.30
AWG No.30
Pitch
0.89
0.89
0.89
0.89
W
7.12
12.46
23.14
28.48
H
0.7-0.75
*When Vinyl Chloride
is used as Insulator
2. I/O End Finish
No.of pin
8
14
26
32
A
4.8
5.5
6.8
7.3
B
After holding shield braid over
cable sheath, wrap metal shielded
tape up to about 1.5 circles.
Metal-shielded tape
3. Tooking
No.of pin
8
14
26
32
Part No.
QM30-8PA-EP
(50)
QM30-8P-EP
(50)
QM30-14PA-EP
(50)
QM30-14P-EP
(50)
QM30-26PA-EP
(50)
QM30-26P-EP
(50)
QM30-32PA-EP
(50)
Pressure Block
Guide Plate
QM30-8GP
CL902-0075-6
QM30-14GP
CL902-0035-1
QM30-26GP
CL902-0036-4
QM30-32GP
CL902-0076-9
Connecting Press
HIF Connecting Press
HHP-502
CL550-0082-2
QM30-**PB
CL902-0037-7
4. How to install Cover case
Please refer to next page.
5. Precaution for Cable End Finish
The cover case of QM series is made of zinc alloy die-cast which is effective for EMI shielding
protection and the outside of cover case is coated with silver to provide excellent connection.
The shield structure for this QM series comprises 5 parts as per figure below, Therfore, I/O End
Finish Treatment is essential for EMI shielding protection.
Grounding to PCB can be accomplished through the connection of plates provided on both
sides of plug and receptacle.
Cover case
Protective plate
Plate (A)
Protector
Plate (B)
04/2009
179
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Plug Connector

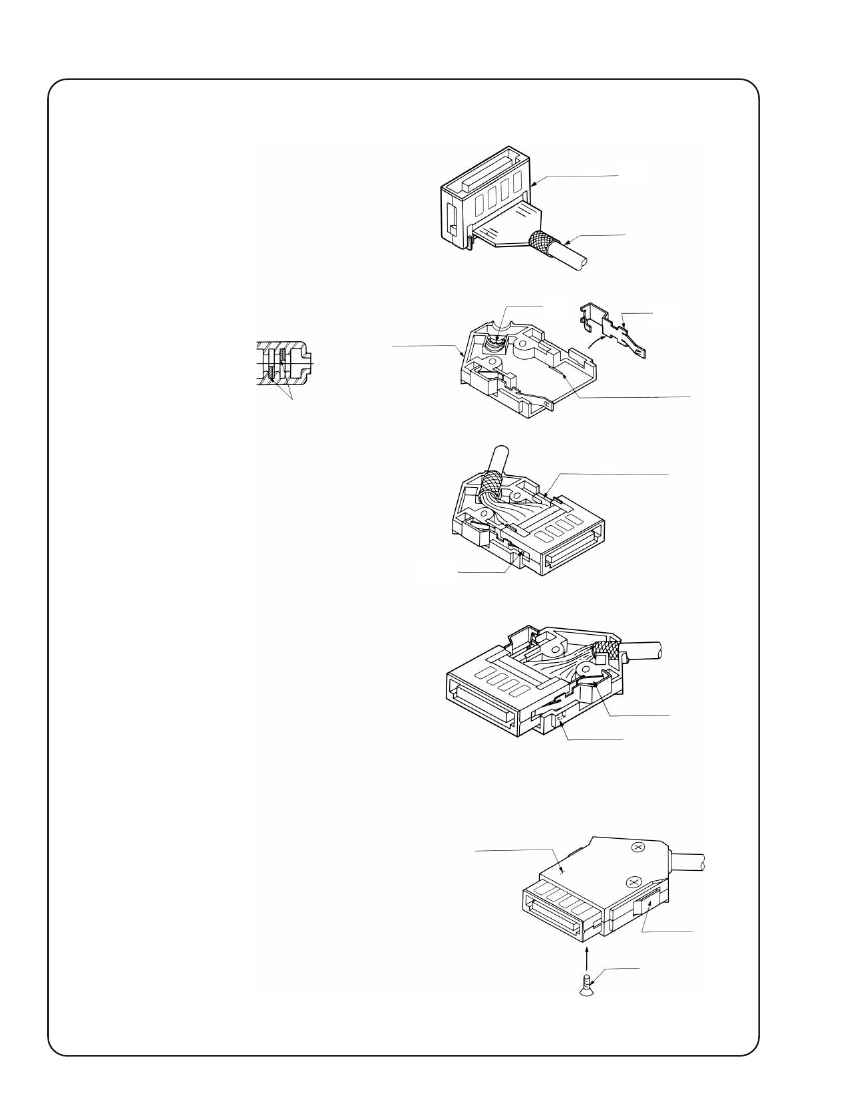

(1) Use HIROSE Connecting tools, to perform IDC connection to Connector Unit (QM30_*PA-EP).
Connector unit
Cable
(2) Take out one side of the lock from the housing.
Bend the accompanying clamp into a bow
shape and install it on the housing.
Clamp
Lock
Core case
Hole for installing
connector unit
Clamp
(3) Insert the lock plate into the slit at both sides of Connector Unit.
Position for fixing spring
portion of Lock Plate
Slit
(4) Insert another lock plate as described above, and fix connector unit into the correct position in
the cover case.
Lock plate
Stopper hole
(5) Fix spring portion of lock plate into the correct position.
(6) Assemble it with attached screw (M25*0.45*6)
(When assembling the cover case,do it by pushing the lock button;
Connector unit be completely installed)
Cover case
Lock plate
Caution: Be sure to install the cable, connector unit, and
lock at the specified positions. Parts installed at
improper positions will cause a gap in the
housing and damage the connector unit.
Screw
180
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

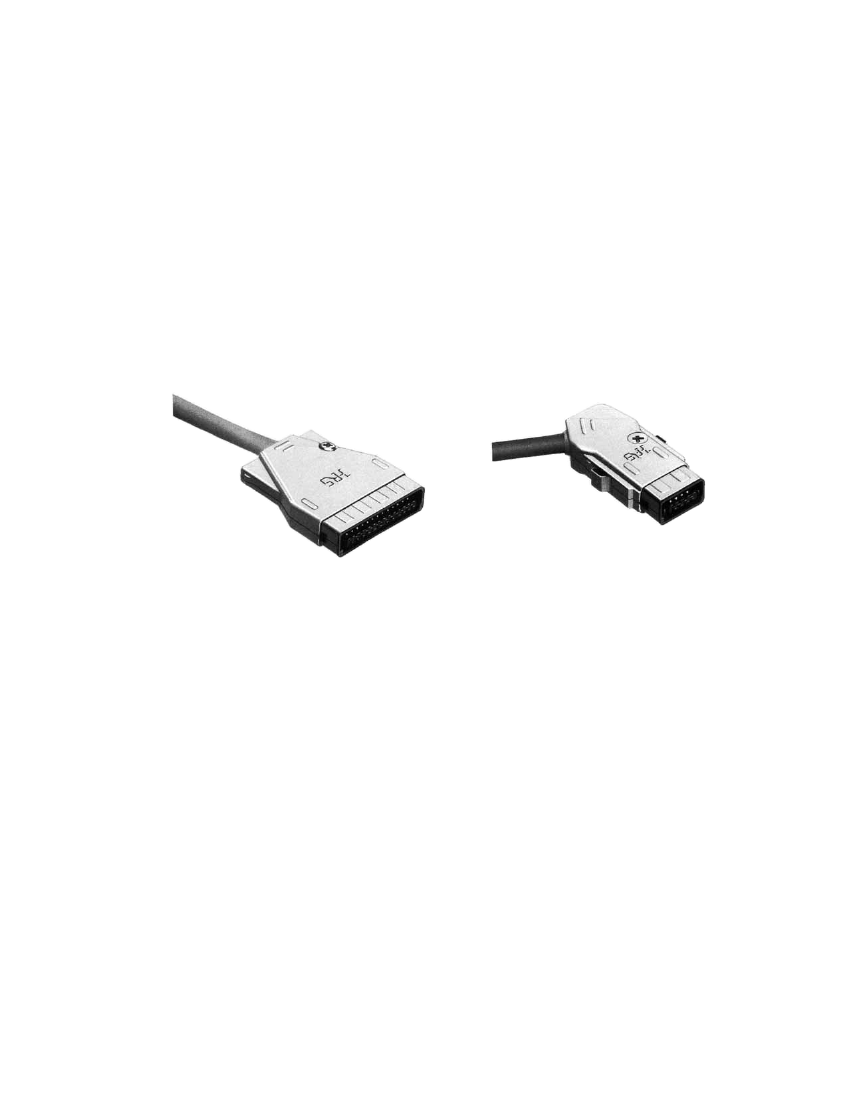

QM40-※※P/QM40-※※PA (Solder Plug Connectors)
The solder connectors have been developed for use with thinner cables than the convention-
al specified cables.
The connectors are basically the same as the QM30. Design the harness by considering the
following.
1. Solder wires quickly (15W • 3sec) because the connector housings are made of PET resin
(thermoplastic).
2. Be sure to make the diameter cables to the dimensions specified on Page 177.
