LLQ1608-F8N7 Overview

1 ELEMENT, 0.0068 uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD

Preview

Download Datasheet

View All

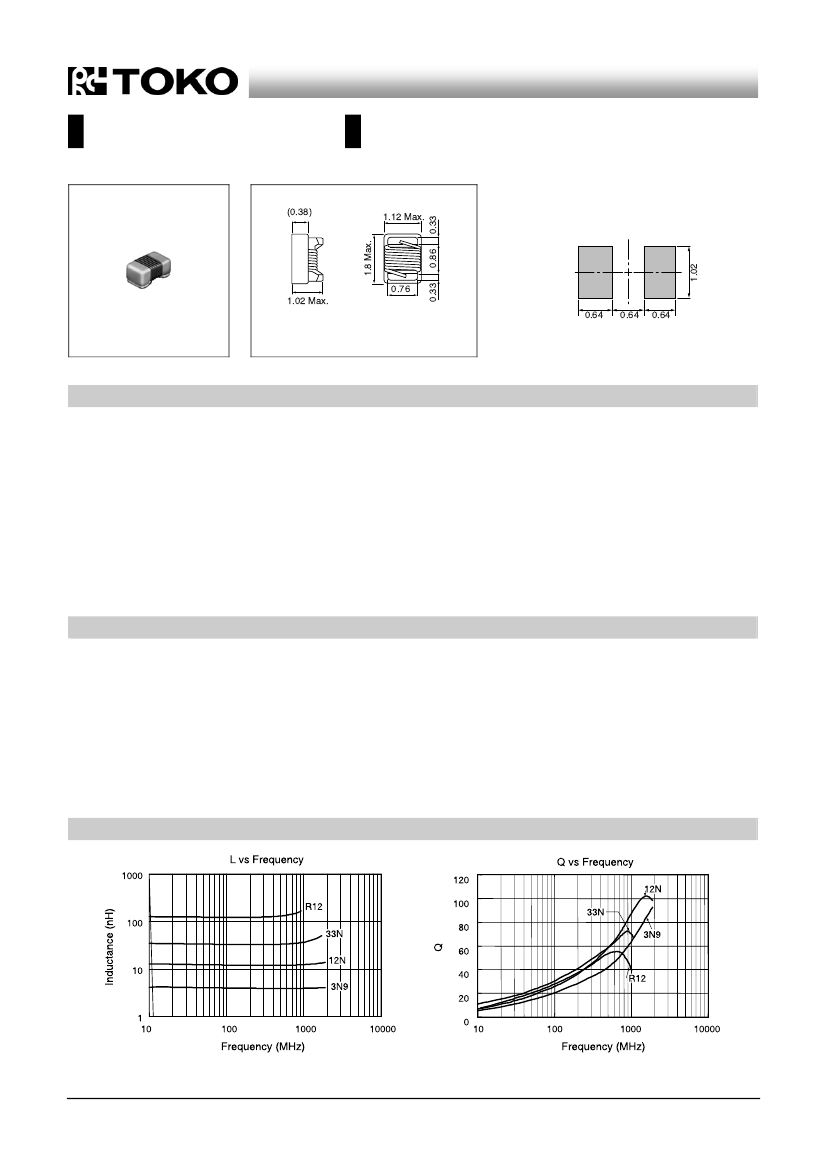

Wire Wound Chip Inductors

贴片绕线型电感器

LLQ1608 Series

Inductance Range:

3.6~470nH

Recommended patterns

0.33

(0.38)

1.12 Max.

推荐焊盘尺寸

1.8 Max.

0.86

0.76

1.02 Max.

0.33

0.64

(Unit: mm)

0.64

(Unit: mm)

FEATURES

特点



高频率表面贴装绕线小型电感器。

（尺寸：最大1.81.12毫米的平面、最高1.02毫米.）



线圈直接绕在瓷芯上，有一个精确间距，实现高Q值，很小

的随机变化的自振频率。



½泛的电感值范围，电感值限制在公差2%。



顶部覆盖树脂½电感器稳固安½。



符合RoHS指令。



High frequency surface-mounted wire-wound type small

chip inductors (Size: 1.81.12mm Max square,1.02mm

Max height.)



The wire is wound directry on the ceramic core at a

precision pitch, realizing high-Q, self-resonant frequency

characteristics with little random variation.



Wide inductance range, and tight tolerance of

2%

of the

inductance value.



The top face is coated with resin, enabling the inductor to

be held firmly when being mounted.



RoHS compliant.

ELECTRICAL CHARACTERISTICS



Inductance Range



Inductance Tolerance

电气特性



电感值范围



电感值公差



3.6½470nH

G;

2%

(6.8½470nH)

J;

5%

(3.6½470nH)

K;

10%

(3.6½470nH)

700½12,500MHz

100½700mA

－40°C½＋125°C

（0°C½＋60°C）

3.6~470nH

G ;



2% (6.8~470nH)

J ;



5% (3.6~470nH)

K ;



10% (3.6~470nH)



S.R.F.(for reference only)

700~12,500MHz



Rated DC current

100~700mA



Operating Temperature Range -40°C~+125°C



Storage Temperature Range

-40°C~+125°C

(In case of taping used)

(0°C~+60°C)

自谐振频率（参考值）

额定直流电流

工½温度范围

储存温度范围

（½用编带包装时）

EXAMPLES OF CHARACTERISTICS

特性范例

continued on next page

接下页

1.02
