C448PB datasheet, PDF - EEWORLD Datasheet

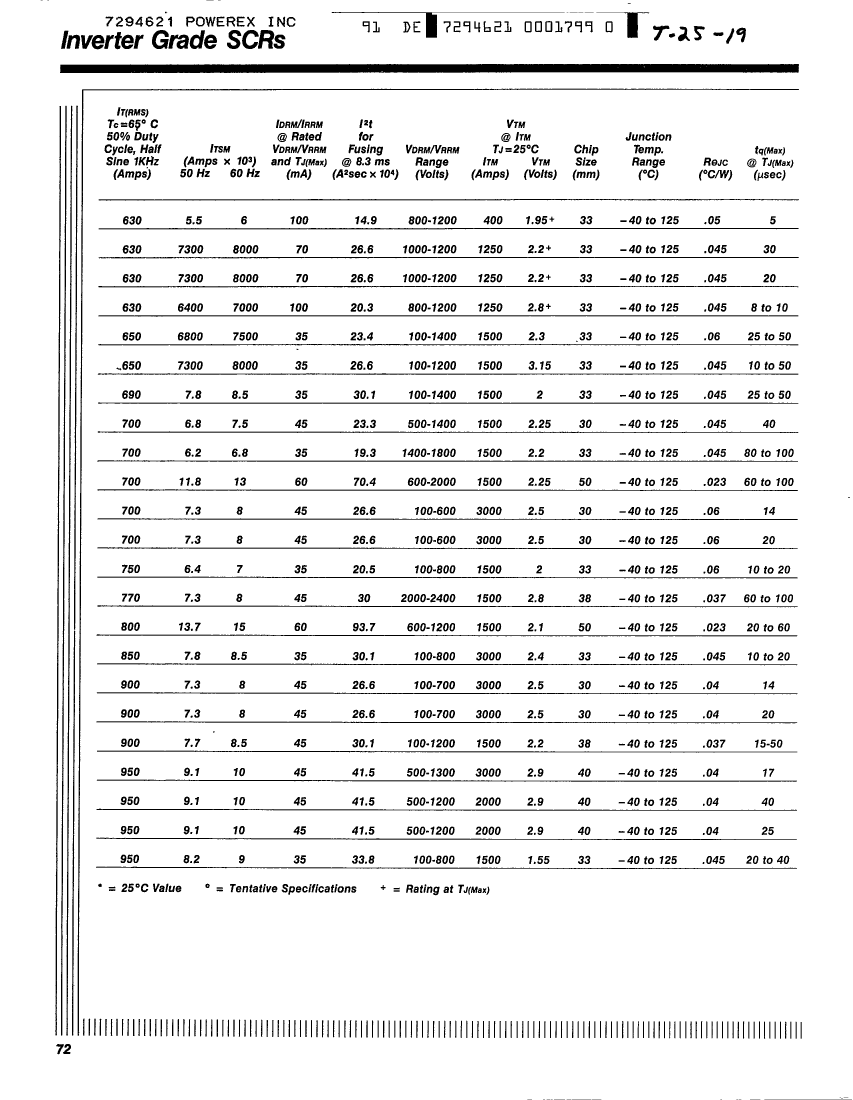

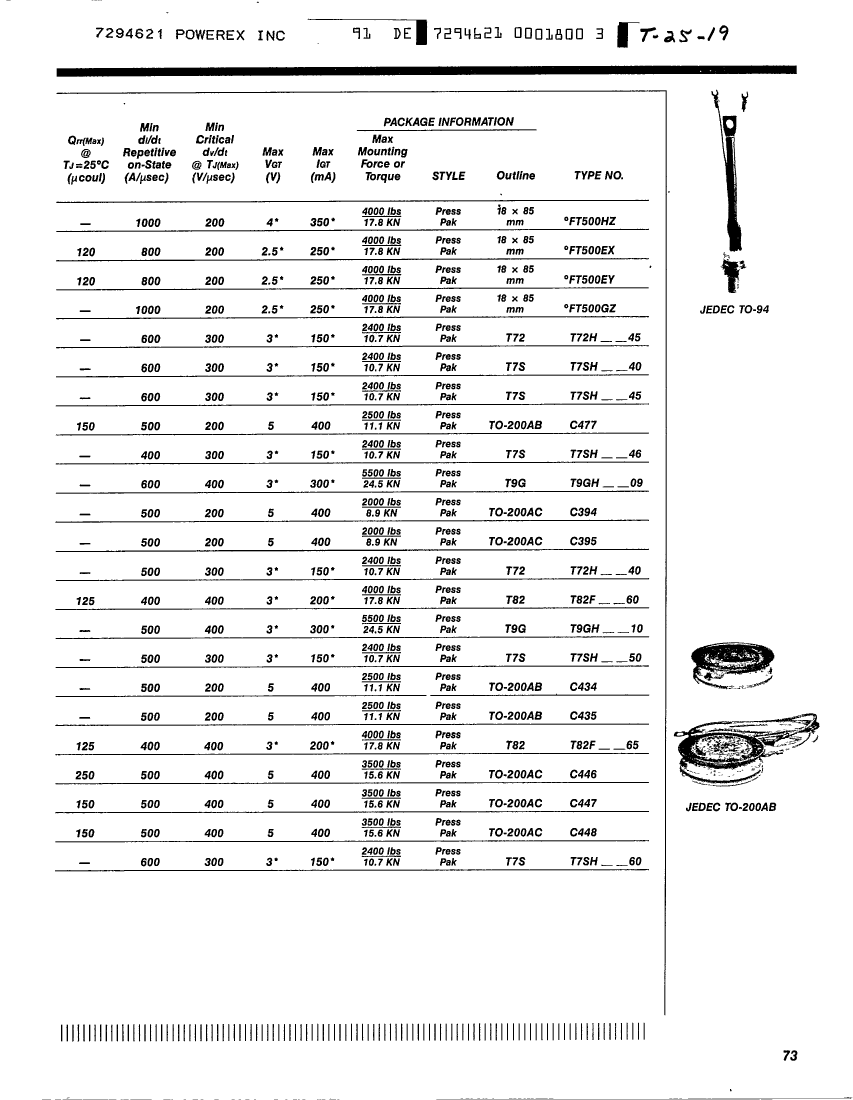

C448PB: DescriptionSilicon Controlled Rectifier, 996.95A I(T)RMS, 950000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element; CategoryAnalog mixed-signal IC Trigger device; File Size81KB，2 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

C448PB Overview

Silicon Controlled Rectifier, 996.95A I(T)RMS, 950000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown
Other features	FAST
Nominal circuit commutation break time	25 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	400 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-CEDB-N2
Maximum leakage current	45 mA
On-state non-repetitive peak current	10000 A
Number of components	1
Number of terminals	2
Maximum on-state current	950000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	996.95 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Trigger device type	SCR

	C448PB	C448P
Description	Silicon Controlled Rectifier, 996.95A I(T)RMS, 950000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element	Silicon Controlled Rectifier, 996.95A I(T)RMS, 950000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element
Maker	POWEREX	POWEREX
package instruction	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown	unknown
Other features	FAST	FAST
Nominal circuit commutation break time	25 µs	25 µs
Configuration	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	400 V/us	400 V/us
Maximum DC gate trigger current	300 mA	200 mA
Maximum DC gate trigger voltage	3 V	5 V
JESD-30 code	O-CEDB-N2	O-CEDB-N2
Maximum leakage current	45 mA	45 mA
On-state non-repetitive peak current	10000 A	10000 A
Number of components	1	1
Number of terminals	2	2
Maximum on-state current	950000 A	950000 A
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-45 °C	-45 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON
Certification status	Not Qualified	Not Qualified
Maximum rms on-state current	996.95 A	996.95 A
Off-state repetitive peak voltage	1200 V	1000 V
Repeated peak reverse voltage	1200 V	1000 V
surface mount	YES	YES
Terminal form	NO LEAD	NO LEAD
Terminal location	END	END
Trigger device type	SCR	SCR
