OCVCXO-120A1: DescriptionSine Output Oscillator, 10MHz Nom; CategoryPassive components oscillator; File Size44KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

OCVCXO-120A1 Overview

Sine Output Oscillator, 10MHz Nom

OCVCXO-120A1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kyocera
package instruction	DIP6,1.0,350
Reach Compliance Code	compliant
Ageing	0.1 PPM/YEAR
Maximum control voltage	6 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
frequency stability	0.03%
Frequency Stability - Voltage	0.002 ppm
input power	5.4 W
JESD-609 code	e0
Manufacturer's serial number	OCVCXO-120A
Installation features	THROUGH HOLE MOUNT
Number of terminals	6
Nominal operating frequency	10 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.905 V
Oven power supply voltage	12V
Package body material	METAL
Encapsulate equivalent code	DIP6,1.0,350
physical size	36.1mm x 27.2mm x 19.5mm
power supply	12 V
Certification status	Not Qualified
Maximum slew rate	450 mA
Nominal supply voltage	12 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

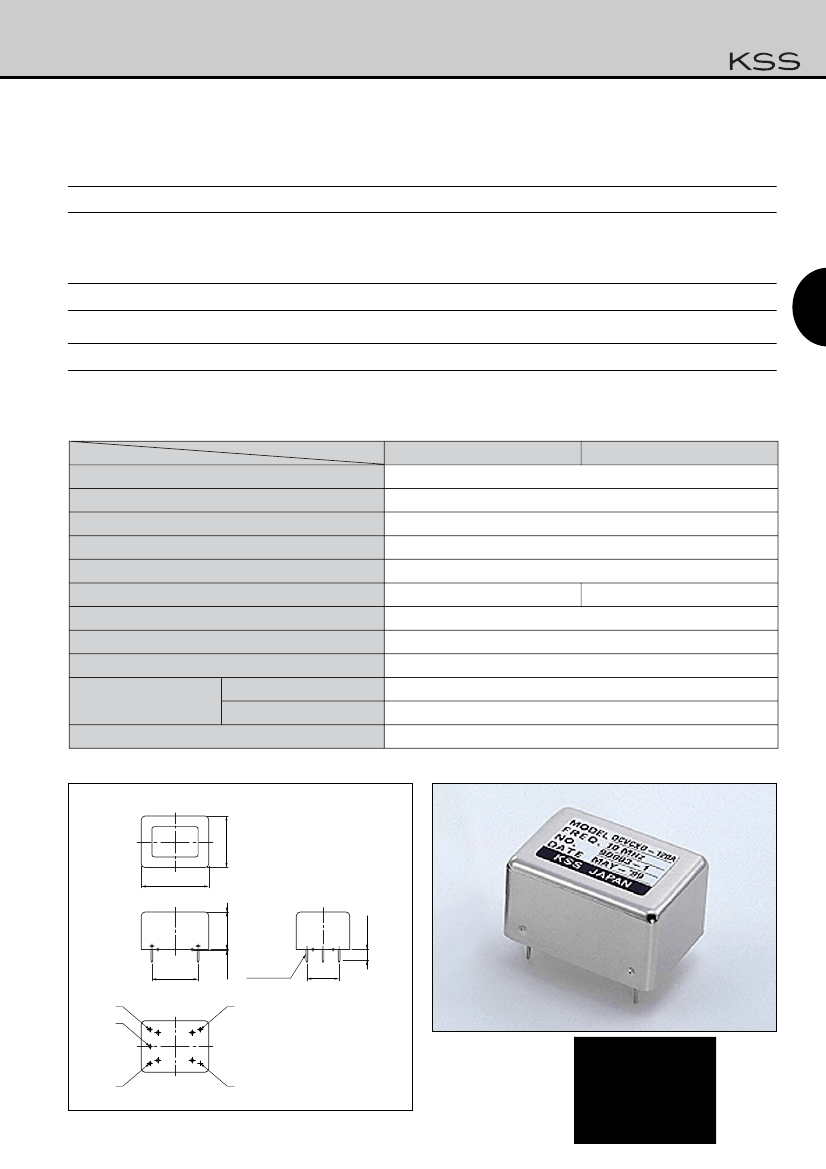

OCVCXO-120A1 Preview

Crystal Oscillator

OCVCXO-120A

Oven Controlled Crystal Oscillator

■

Features

¡Compact

OCVCXO (36.1×27.2×20.2mm).

¡High

stability.

¡Solder

sealing type.

■

Typical Applications

¡Standard

Oscillator.

■

Standard Frequencies

¡10MHz.

*

Plese do not clean using any kind of liquid cleansing method.

■

Specifications

Item

Frequency

Frequency Temperature Characteristics

Frequency deviation

Operating Temperature Range

Storage Temperature Range

Frequency Aging

Supply Voltage Change

Power Supply Voltage

Power Supply Current

Level

Output

Load

Output Harmonics/Subharmonics

±5×10

MAX./day

±5×10

−

8

MAX./year

−

10

Type

OCVCXO-120A

10MHz

±3×10

−

8

MAX./−10~+60:

OCVCXO-120A1

±5×10

−

7

MIN./ 0~+6V (positive)

−10~+60:

−20~+80:

±1×10

−

9

MAX./day

±1×10

−

7

MAX./year

±2×10

−

9

MAX./+12.0V±5%

+12.0V±5%

450mA MAX.

+3dBm

MIN.

50

Ω

−20dB

MAX.

■

Outline

OCVCXO-120A

27.2MAX.

19.5MAX.

N.P.

36.1MAX.

0.7MAX.

25.4±0.25

5-φ0.8±0.1

17.8±0.25

#3

#2

#4

#1

#5

Pin Connection

1:VC

2:Ref. Voltage

3:+DC

4:OUTPUT

5:GND

6.2±0.5

Original Size

Dimensions(mm)
