REVISION AC
DESIGNED & DIMENSIONED IN MILLIMETERS
(INCHES FOR REFERENCE)
(No OF POS x 0.635[.0250]) +4.750[.1870] REF
2.69 .106
REF
C1
(No OF POS -1) x 0.635[.0250]
02
LSS-1XX-XX-XX-DV-XX-XX
NO OF POSITIONS
-05, -10, 20, -30, -40, -50
(PER ROW)
LEAD STYLE
-01: 3 mm (SEE TABLE 3)
-02: 6 mm (SEE TABLE 3)
-03: 4 mm (SEE TABLE 3)
OPTION
-K: POLYIMIDE FILM
(USE K-500-300)
(SEE FIG 2, SHT 3)
-TR: TAPE & REEL
(SEE FIG 4 SHT 3)
OPTION
AC
-A: ALIGNMENT PIN
(REQUIRED FOR -01 LEAD STYLE;
OPTIONAL FOR -02 & -03)
-LC: LOCKING CLIP
(-02 & -03 LEAD STYLES ONLY)
(USE LC-08-TM-01)
(SEE FIG 3, SHT 3)
(SEE NOTE 6)
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
AC
PLATING SPECIFICATION
DO NOT
SCALE FROM
THIS PRINT
01
0.20 .008 REF
0.635 .0250
(TOL NON-ACCUM)
SEE NOTE 4
C2
-L: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
(USE C-185-XX-LG)
-F: 3µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
(USE C-185-XX-FG)
-LM: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
(USE C-185-XX-LM)
-FM: 3µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAILS
(USE C-185-XX-FM)
C3
0.866±0.100 .0341±.0039
(SEE NOTE 5)
"A"
LSS-XX-01-DV-A
"B"
REF
0.670±0.100 .0264±.0039
(SEE NOTE 5)
"A" ± .076[.0030]
"C" REF
C4
0.10 [.004]
C-185-01-XX
0.80 .031
REF (TYP)
0.160±0.130 .0063±.0051
4.600±0.130 .1811±.0051
0.85 .033 REF
0.75 .030 REF
"A"
(No OF POS x 0.635[.0250]) +1.500[.0591]
REF
C6
1.10 .043
REF
4.00 .157
REF
SECTION "A"-"A"
SCALE 8 : 1
C5
3 MAX SWAY
(TYP)
0.14 .006
REF
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.

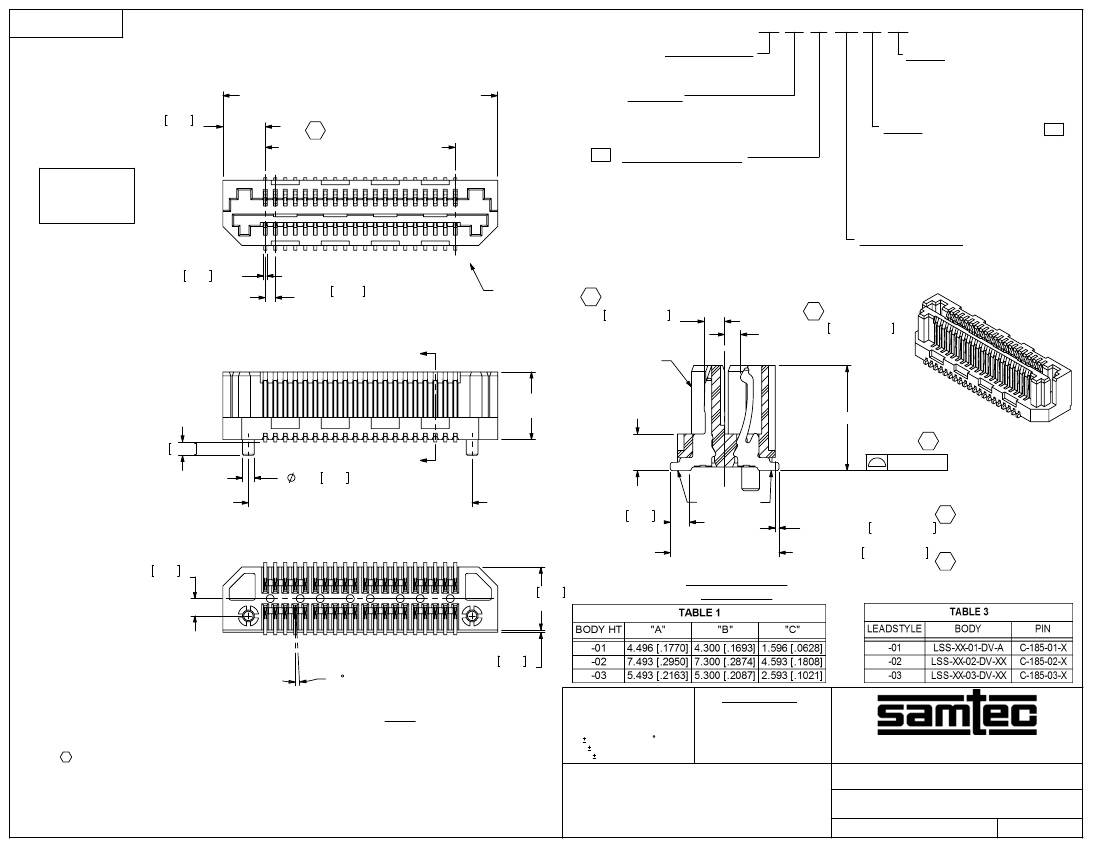

FIG 1
NOTES:
LSS-120-01-XX-DV-A SHOWN
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .038 [.0015].
3. MINIMUM PUSHOUT FORCE; TERMINALS: .5 LBS, CONTACTS: .5 LB.
4. PIN 01 WILL MATE WITH CONTACT 02 ON MATING CONNECTOR,
SEE APPLICATION VIEWS.
5. MEASURE FROM TOP OF VERTICAL WALL.
6. MINIMUM PULL OUT FORCE FOR -LC IS .75 LB.
.X:
.3 [.01]
2
.XX: .13 [.005]
.XXX: .051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: PHOS BRONZE
.635mm TERMINAL/SOCKET COMBO
LSS-1XX-XX-XX-DV-XX-XX
07/01/2002
SHEET
1
OF
3
F:\DWG\MISC\MKTG\LSS-1XX-XX-XX-DV-XX-XX-MKT.SLDDRW
BY:
CHAD F
REVISION AC

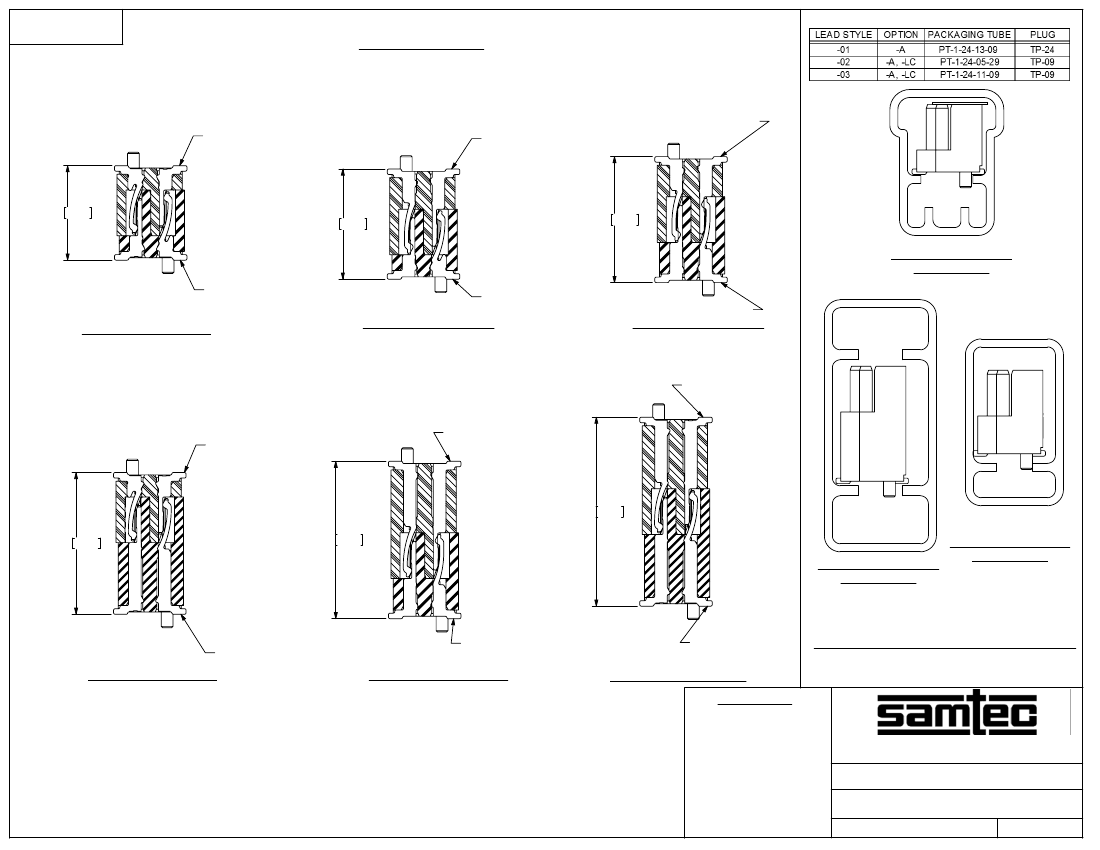

APPLICATION VIEWS
LSS-1XX-01-XX-DV-A
LSS-1XX-03-XX-DV-A
LSS-1XX-03-XX-DV-A
6.00 .236
7.00 .276
8.00 .315
TUBE: PT-1-24-13-09
PLUG: TP-24
LSS-1XX-01-XX-DV-A
LSS-1XX-01-XX-DV-A
LSS-1XX-03-XX-DV-A
6mm STACK HEIGHT
7mm STACK HEIGHT
8mm STACK HEIGHT
LSS-1XX-02-XX-DV-A
LSS-1XX-01-XX-DV-A
LSS-1XX-02-XX-DV-A
12.00 .472
9.00 .354
10.00 .394
TUBE: PT-1-24-05-29
PLUG: TP-09
TUBE: PT-1-24-11-09
PLUG: TP-09
LSS-1XX-02-XX-DV-A
LSS-1XX-03-XX-DV-A
LSS-1XX-02-XX-DV-A
LOAD PARTS WITH PIN #1 IN DIRECTION OF ARROW.
9mm STACK HEIGHT
10mm STACK HEIGHT
12mm STACK HEIGHT
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.635mm TERMINAL/SOCKET COMBO
LSS-1XX-XX-XX-DV-XX-XX
07/01/2002
SHEET
2
OF
3
F:\DWG\MISC\MKTG\LSS-1XX-XX-XX-DV-XX-XX-MKT.SLDDRW
BY:
CHAD F
REVISION AC

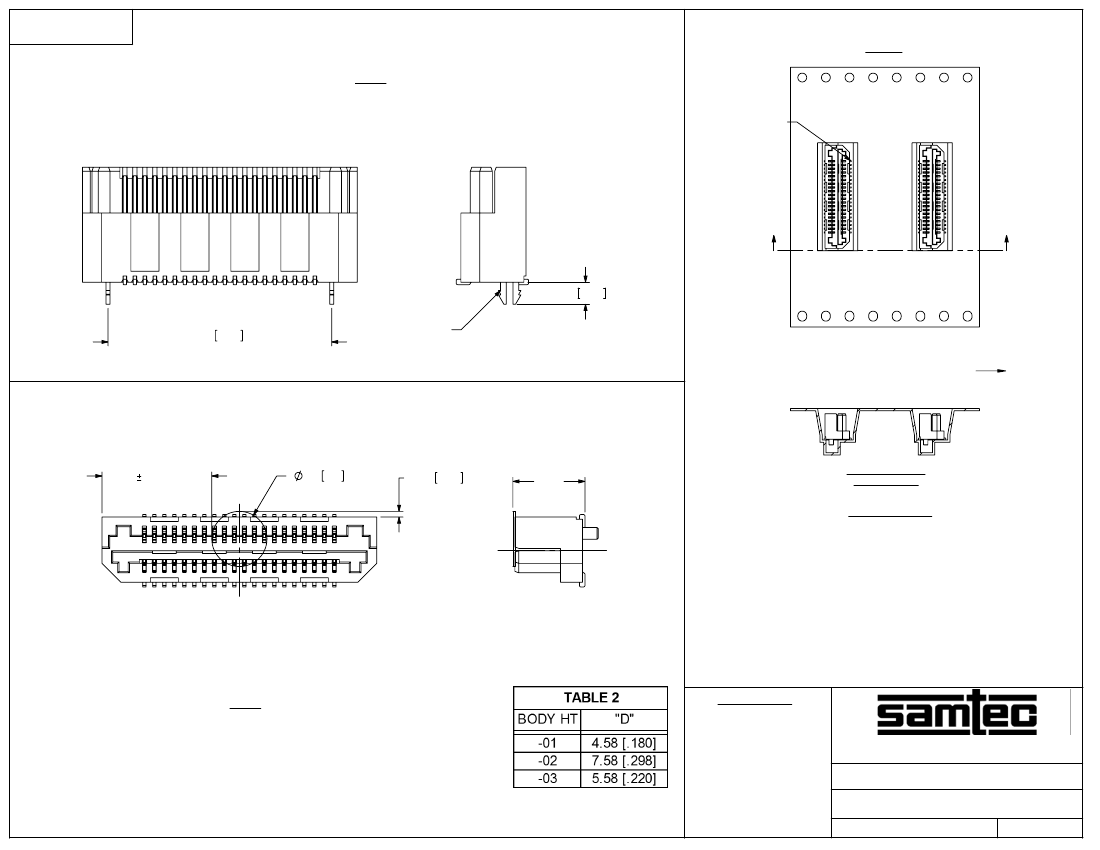

FIG 3
-LC: LOCKING CLIP OPTION
(USE LC-08-TM-01)
-02 & -03 LEAD STYLES ONLY
(SEE NOTE 6, SHT. 1)
POS 01
FIG 4
"B"
"B"
1.3966 .055 REF
LC-08-TM-01
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
14.2000 .559 REF
(No OF POS x 0.635[.0250]) +1.500[.0600]
"E" 0.50[.020]
3.5 .14
0.36 .014
"D"
SECTION "B"-"B"
SCALE 1.5 : 1
TAPE & REEL
E=((NO OF POS X 0.635 [.0250]) + 4.750 [.1870])/2) - 1.75 [.0689]
FIG 2
-K: POLYIMIDE FILM OPTION
(USE K-500-300)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.635mm TERMINAL/SOCKET COMBO
SHEET
3
OF
3
F:\DWG\MISC\MKTG\LSS-1XX-XX-XX-DV-XX-XX-MKT.SLDDRW
BY:
CHAD F
LSS-1XX-XX-XX-DV-XX-XX
07/01/2002
