BAT43AR1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT43AR1

BAT43AR1: Description0.2A, 30V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size71KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BAT43AR1 Overview

0.2A, 30V, SILICON, SIGNAL DIODE

BAT43AR1 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.45 V
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	4 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse current	0.5 µA
Maximum reverse recovery time	0.005 µs
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

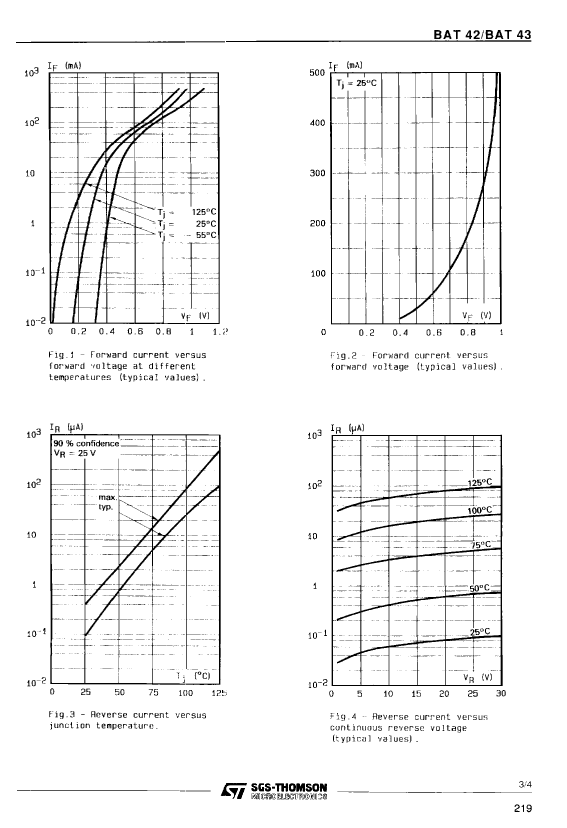

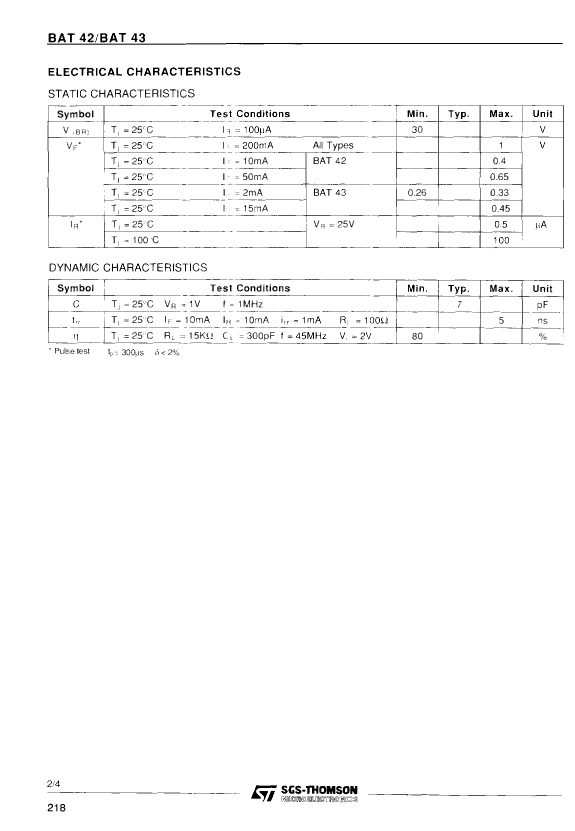

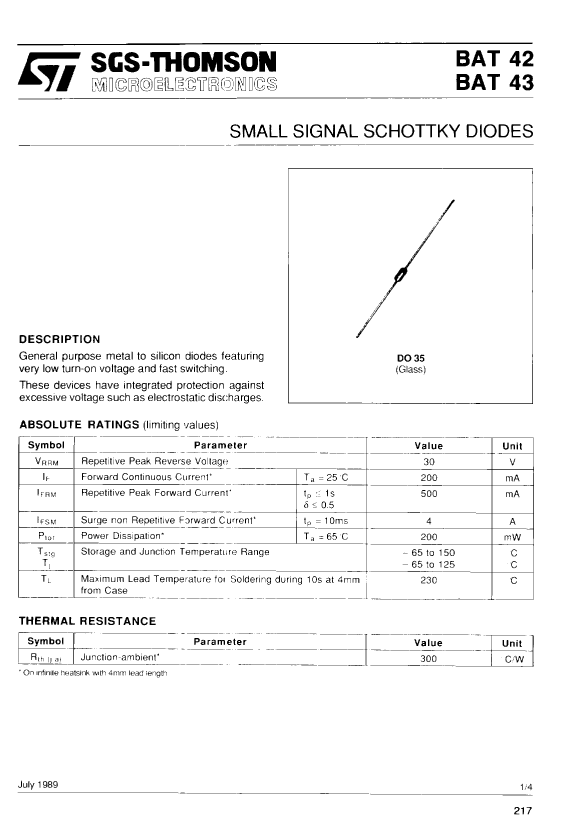

Preview

Download Datasheet

View All

BAT43AR1 Related Products

	BAT43AR1	BAT43AZ1	BAT43B2	BAT42B2	BAT43AZ2	BAT43AR2	BAT42AZ1	BAT42AR2	BAT42AR1	BAT42AZ2
Description	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE	0.2A, 30V, SILICON, SIGNAL DIODE
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.45 V	0.45 V	0.45 V	0.65 V	0.45 V	0.45 V	0.65 V	0.65 V	0.65 V	0.65 V
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Maximum reverse current	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
