BYW31-150U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW31-150U

BYW31-150U: DescriptionRectifier Diode, 1 Phase, 1 Element, 28A, 150V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size203KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYW31-150U Overview

Rectifier Diode, 1 Phase, 1 Element, 28A, 150V V(RRM), Silicon,

BYW31-150U Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	380 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	28 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Guideline	CECC50009-002
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	100 µA
Maximum reverse recovery time	0.04 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

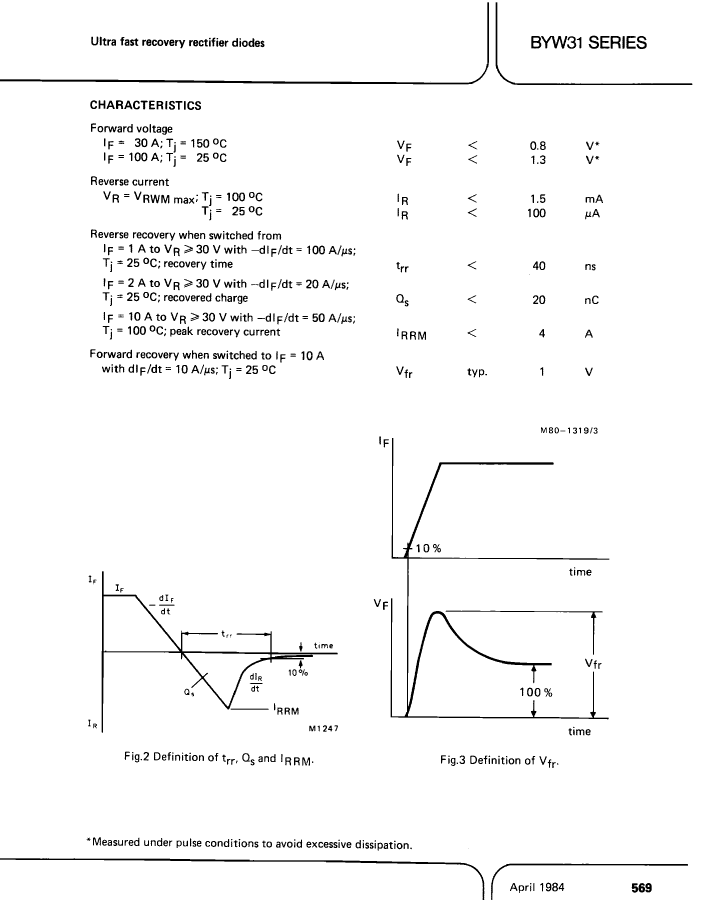

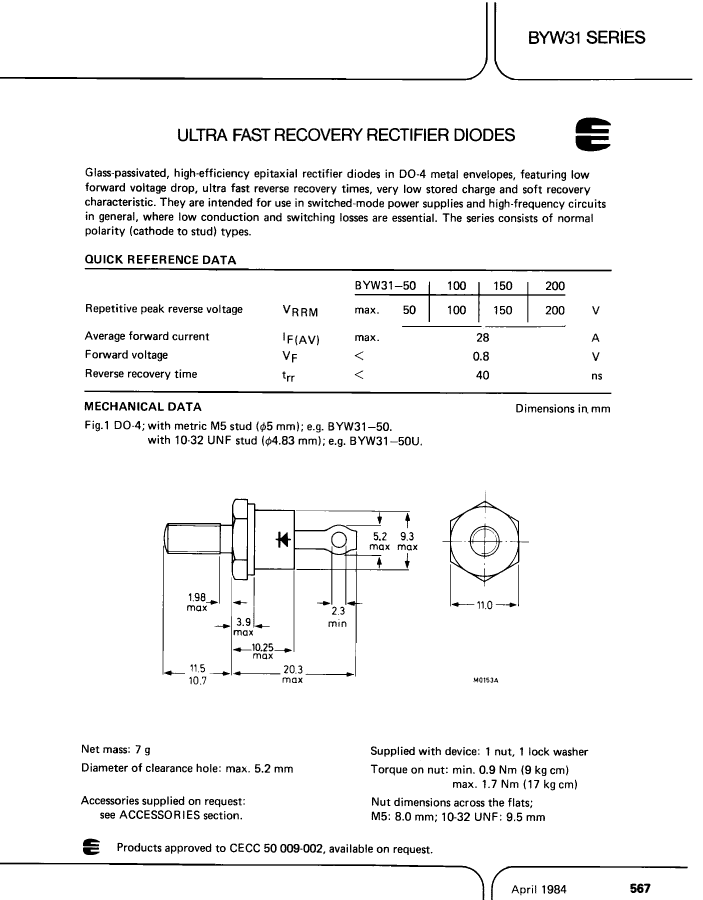

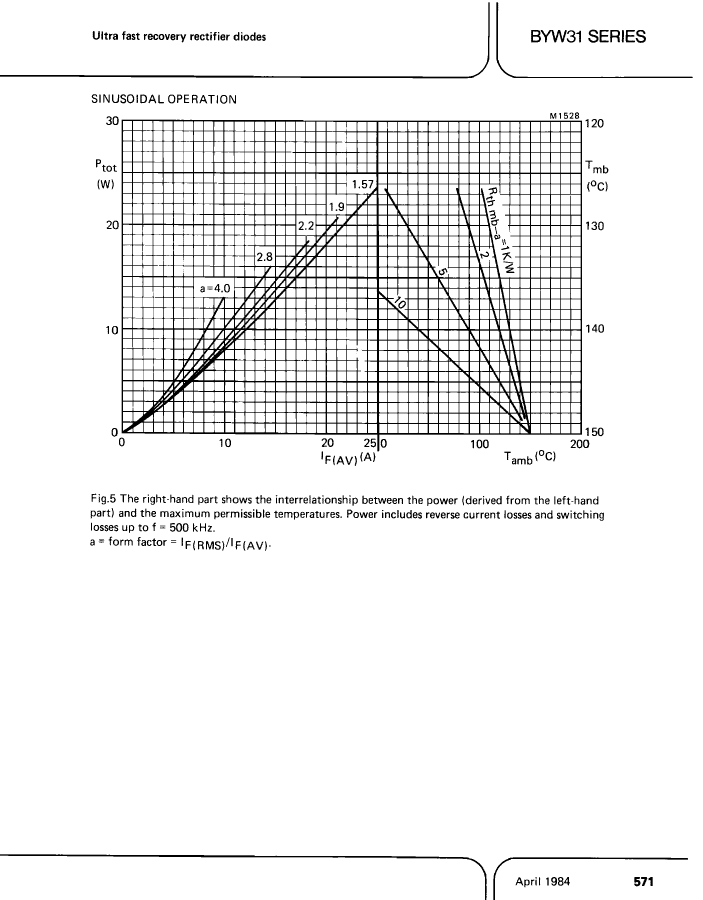

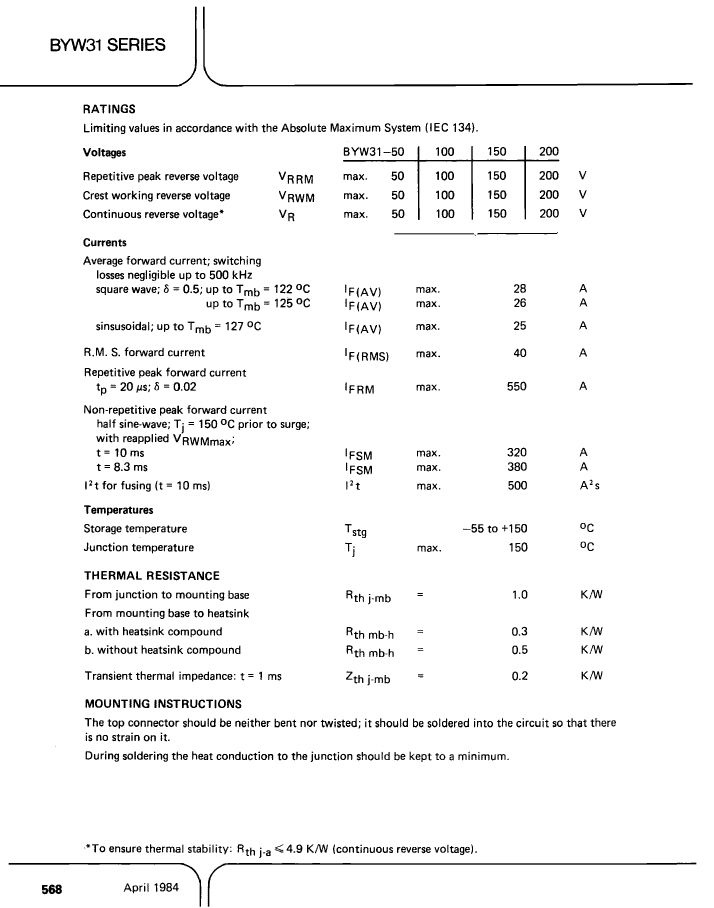

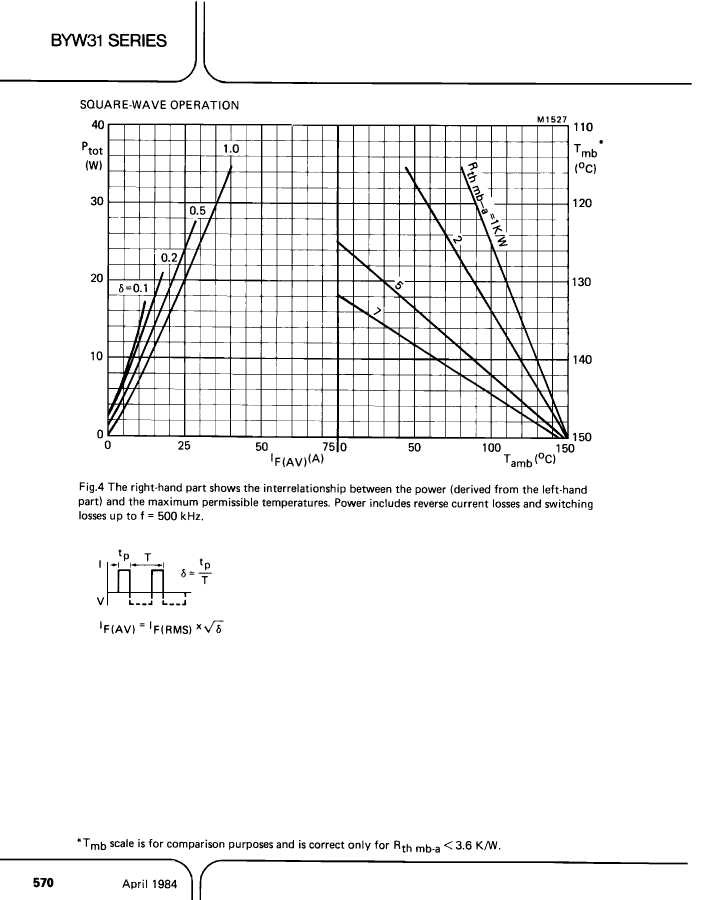

Preview

Download Datasheet

View All

BYW31-150U Related Products

	BYW31-150U	BYW31-100	BYW31-100U	BYW31-50	BYW31-200	BYW31-200U	BYW31-150	BYW31-50U
Description	Rectifier Diode, 1 Phase, 1 Element, 28A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 28A, 100V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 28A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 28A, 50V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 28A, 200V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 28A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 28A, 150V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 28A, 50V V(RRM), Silicon,
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	380 A	380 A	380 A	380 A	380 A	380 A	380 A	380 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	28 A	28 A	28 A	28 A	28 A	28 A	28 A	28 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	CECC50009-002	CECC50009-002	CECC50009-002	CECC50009-002	CECC50009-002	CECC50009-002	CECC50009-002	CECC50009-002
Maximum repetitive peak reverse voltage	150 V	100 V	100 V	50 V	200 V	200 V	150 V	50 V
Maximum reverse current	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA
Maximum reverse recovery time	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	YAGEO	-	-	-	YAGEO	YAGEO	YAGEO	YAGEO
