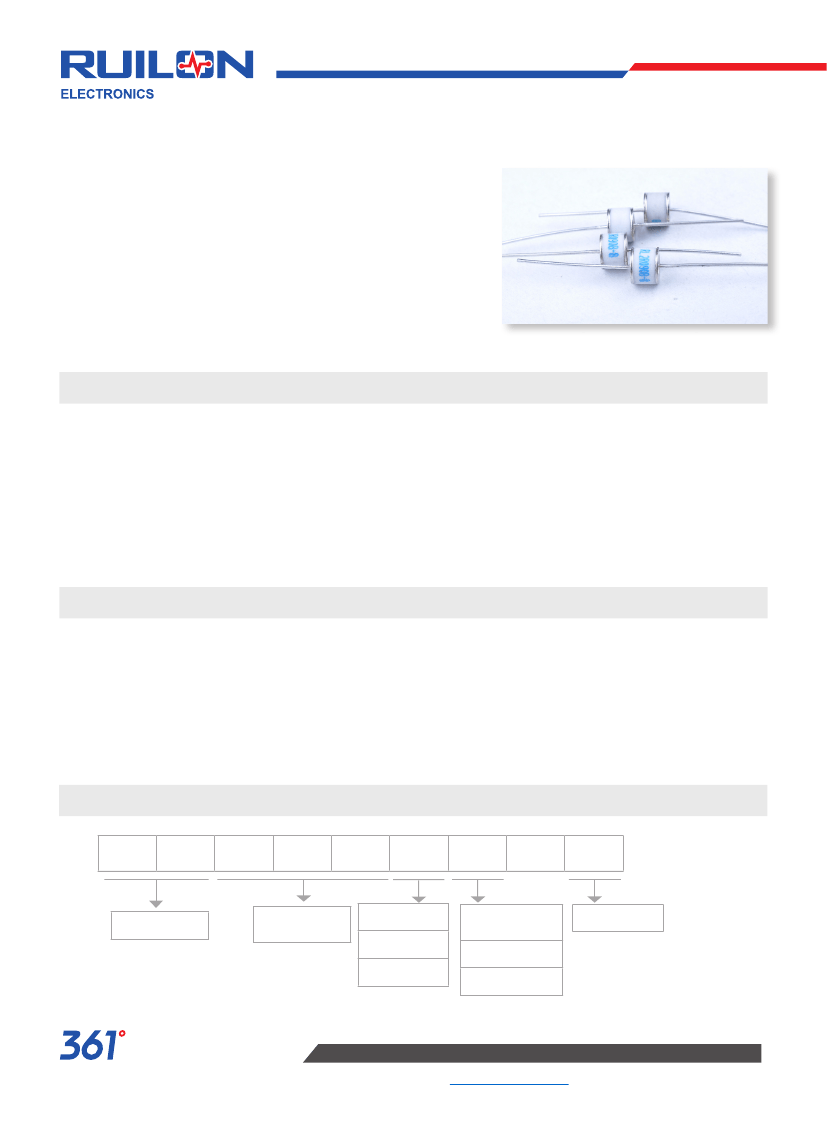

Gas Discharge Tubes - 2RB-8 Series
GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed
in ceramic tubes to provide an alternate circuit path for voltage spikes.The
ceramic envelope and with nickel connectors allow for high loads and Ruilon
offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.
The breakdown voltages of the devices have a wide range (up to 20%
tolerance).Major applications are high frequency telecommunication
lines,stations, security systems,HID and high quality Surge Protection
Devices (SPD).
Features
1. RoHS & HF compliant
2. Rugged ceramic-metal construction
3. Available with or without leads
4. DC spark-over voltage:70~800V
5. Low capacitance
6. Agency recognition :UL/cUL
7. Operating temperature : -30°C ~ +85°C
Storage temperature: -40°C ~ +115°C
Recommended Applications
1. Cable Modem
2. xDSL
3. Set-Top Box
4. TV sets
5. Power supplier
6. Consumer electronics
Part Number Code
2
R
3
5
0
T
B
-
8
Series
DC Line
Voltage
Lead Type
T=Thrust
S=SMD
Electrical
Characteristics
B=10000A
D=20000A
Dimensions
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:1
Gas Discharge Tubes - 2RB-8 Series
Electriacl Characteristics
Maximum
DC
Impulse
Spark-over
Breakdown
Voltage
Voltage
100V/S
DIP
2R070TB-8
2R075TB-8
2R090TB-8
2R120TB-8
2R130TB-8
2R150TB-8
2R230TB-8
2R250TB-8
2R300TB-8
2R350TB-8
2R400TB-8
2R470TB-8
2R600TB-8
2R800TB-8
SMD
2R070SB-8
2R075SB-8
2R090SB-8
2R120SB-8
2R130SB-8
2R150SB-8
(V)
70±20%
75±20%
90±20%
120±20%
130±20%
150±20%
Max.
Impulse
Impulse
Discharge
Life
Current
(10/1000μs)
(8/20μs)
100V/ 1KV/
1
10
100 A
μS
μs times times
(V)
500
500
500
500
500
500
500
500
700
700
800
900
(V)
600
600
600
700
700
700
700
700
900
900
1000
1100
(KA)
15
15
15
15
15
15
15
15
15
15
15
15
15
15
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Times
300
300
300
300
300
300
300
300
300
300
300
300
300
300
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Normal
Alternating
Discharge
Current
50Hz
1Sec
DC
Holdover Minimum
Maximum
Voltage Insulation Capacitance
Resistance
(1MHz)
Part No.
Single
<150ms
9 Cycles
(A)
65
65
65
65
65
65
65
65
65
65
65
65
65
65
(V)
52
52
52
52
52
52
80
135
150
150
150
150
150
150
(GΩ)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
(pF)
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
2R230SB-8 230 ±20%
2R250SB-8 250 ±20%
2R300SB-8 300 ±20%
2R350SB-8 350 ±20%
2R400SB-8 400 ±20%
2R470SB-8 470 ±20%
2R600SB-8 600 ±20% 1100 1300
2R800SB-8 800 ±20% 1300 1500
DC Spark-over Voltage
70-90V
120-400V
470-800V
DC Measuring Voltage
50V
100V
250V
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:2
Gas Discharge Tubes - 2RB-8 Series
For 2-electrode Axial Lead GDT: 500 PCS/Reel
F
Unit:mm
Item
D
Dimensions
Spec.
52
64
10
T+1.4
Tolerance
±2
±3
±0.5
Max.
1.2max.
L1
L
L1
L
D
F
.
330 ± 4.0
>
1.5typ.
100typ.
.
.
68 typ.
Warehouse Storage Conditions of Products
·
Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight.
·
Period of Storage: 1 year
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:4
