Metal Oxide Varistors - 34S Series
Features
1. Wide operating voltage (V1mA) range from 8V to 1800V.
2. Fast responding to transient over-voltage.
3. Large absorbing transient energy capability.
4. Low clamping ratio and no following-on current.
General Information

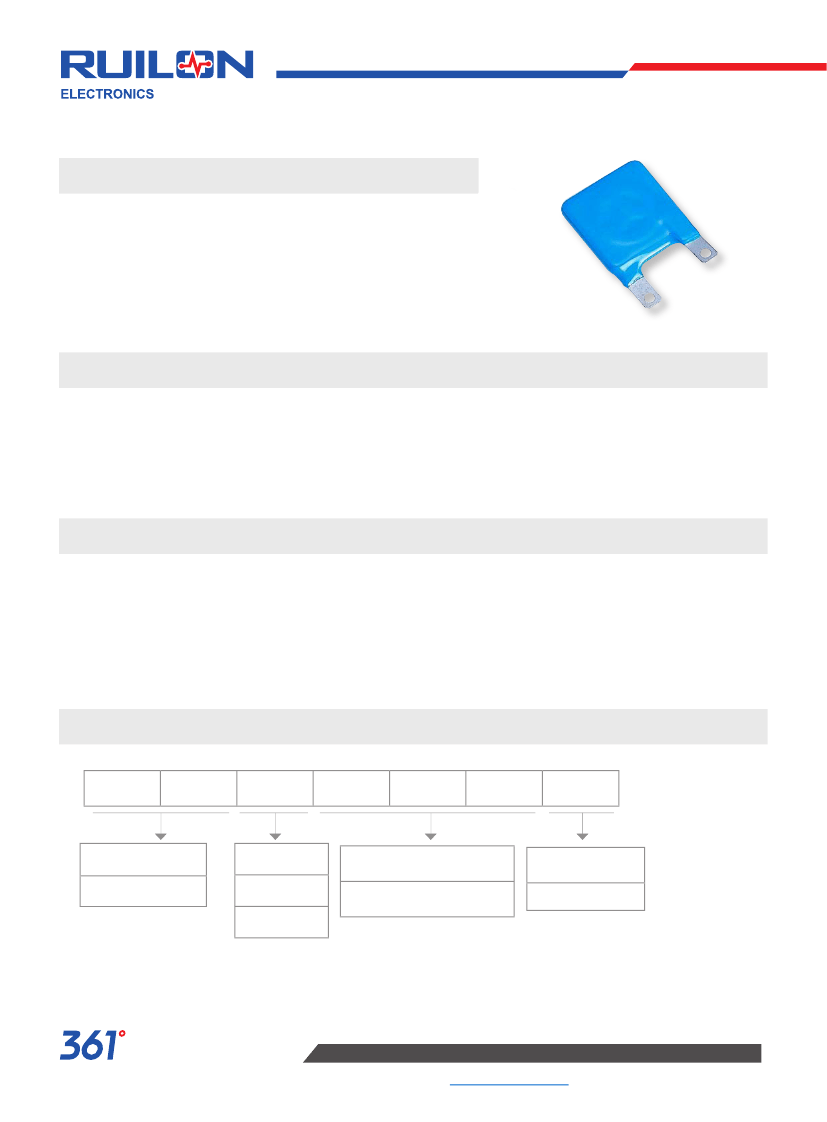

The MOV-34SxxxK Series of 34mm radial leaded varistor devices protects against overvoltage transients such as lightning,
power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 200 V to 1600 V and Vrms
voltages from 130 V to 1000 V. The devices have a high current handling, high energy absorption capability and fast response
times to protect against transient faults up to rated limits.
General Characteristics
No Radioactive Material Storage Temperature: -55ºC to +125ºC
Operating Temperature: -55ºC to +85ºC
Body: Nickel Plated
Leads: Surface-mount, Axial Devices: Tin Plated
Devices with No Leads: Nickel Plated
Product Name
3
4
S
4
7
1
K
Disc Diameter
34=34MM
Type
D: Disk
S: Square
Nominal Varistor Voltage
471=47*101V
Varistor Voltage
Tolerance
K = 10 %
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:1
Metal Oxide Varistors - 34S Series
Electriacl Characteristics
Type Number
Maximum Allowable
Voltage
V
AC
(V)
34S201K
34S221K
34S241K
34S271K
34S301K
34S331K
34S361K
34S391K
34S431K
34S471K
34S511K
34S561K
34S621K
34S681K
34S751K
34S781K
34S821K
34S911K
34S951K
34S102K
34S112K
34S122K
34S142K
34S162K
130
140
150
175
190
210
230
250
275
300
320
350
385
420
460
485
510
550
575
625
680
750
880
1000
V
DC
(V)
170
180
200
225
250
275
300
320
350
385
415
460
505
560
615
640
670
745
765
825
895
990
1140
1280
Varistor Voltage
V
1mA
(V)
200(180~220)
220(198~242)
240(216~264)
270(243~297)
300(270~330)
330(297~363)
360(324~396)
390(351~429)
430(387~473)
470(423~517)
510(459~561)
560(504~616)
620(558~682)
680(612~748)
750(675~825)
780(702~858)
820(738~902)
910(819~1001)
950(855~1045)
1000(900~1100)
1100(990~1210)
1200(1350~1650)
1400(1260~1540)
1600(1440~1760)
Maximum
Clamping
Voltage
I
P
(A)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
V
C
(V)
340
360
395
455
500
550
595
650
710
775
845
925
1025
1120
1240
1290
1355
1500
1570
1650
1815
1980
2310
2640
Withstanding
Surge Current
I(A)
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
40000
Maximum
Energy
(10/1000μs)
(J)
330
360
390
420
460
500
510
530
600
650
700
730
780
810
850
930
970
1050
1080
1120
1250
1250
1400
1500
Typical
Capacitance
(Reference)
@1
KHz
(pF)
8000
7800
7600
7200
7000
6400
6000
4800
4600
4100
4000
3800
3600
3300
3000
2850
2700
2100
1900
1700
1520
1400
1200
1100
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:2
Metal Oxide Varistors - 34S Series

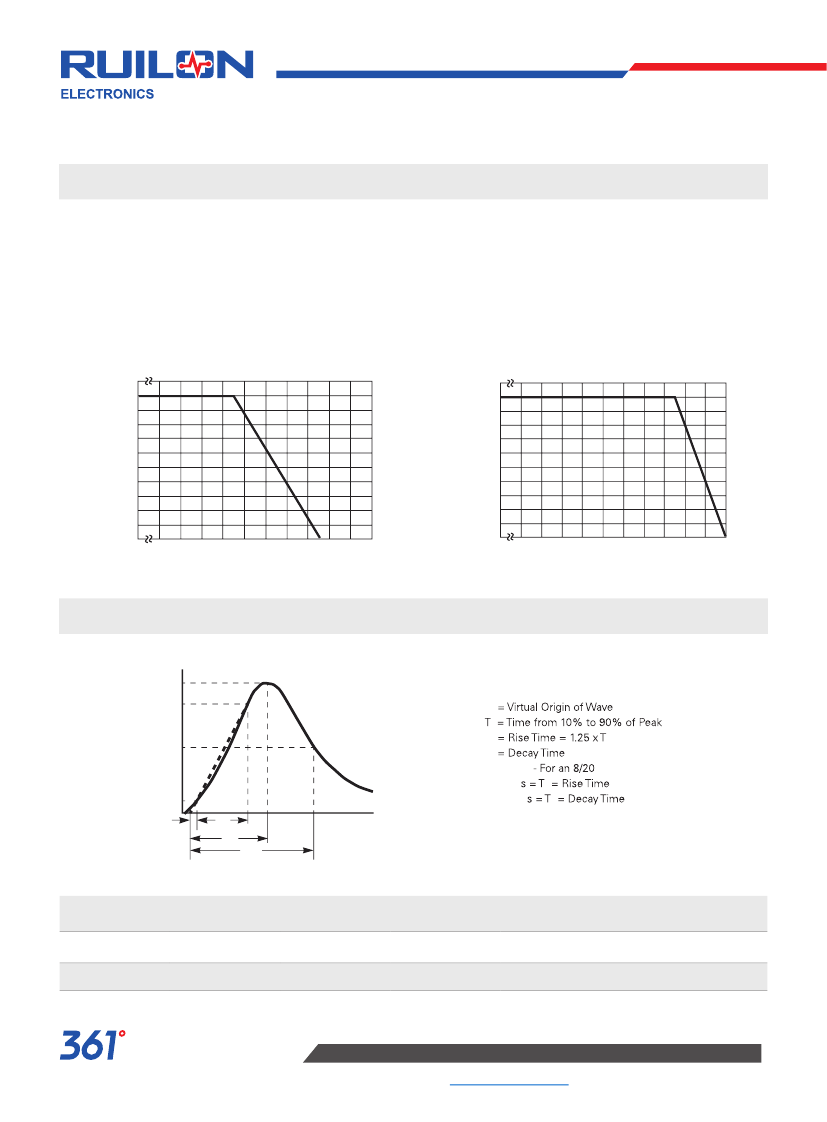

Current Energy and Power Dissipation Ratings
Should transients occur in rapid succession, the average power dissipation is the energy (watt-seconds) per pulse times
the number of pulses per second. The power so developed must be within the specifications shown on the Device Ratings
and Specifications Table for the specific device. The operating values of a MOV need to be derated at high temperatures as
shown above. Because varistors only dissipate a relatively small amount of average power they are not suitable for repetitive
applications that involve substantial amounts of average power dissipation.
Figure 1A - Power Derating for Epoxy Coated
Figure 1B - Power Derating for Pholenic Coated
100
100
PERCENT OF RATED VALUE
80
70
60
50
40
30
20
10
0
-55
50
60
70
80
90 100 110 120
AMBIENT TEMPERATURE (
o
C)
130
140 150
PERCENT OF RATED VALUE
90
90
80
70
60
50
40
30
20
10
0
-55
50
60
70
80
90 100 110 120
AMBIENT TEMPERATURE (
o
C)
130
140 150
Peak Pulse Current Test Waveform
PERCENT OF PEAK VALUE
100
90
0
1
T
1
T
2
Example
8µ
20µ
T
T
1
T
2
TIME
50
µs Current Waveform:
1
2
10
O
1
Figure 2
Packaging
Part Number
34S
Component
Package
34.0
Quantity
100
Packaging
Option
BOX
Packaging Specification
200PCS
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:3
D
Metal Oxide Varistors - 34S Series
Package Dimensions
Unit:mm
D
H1
d1
H
K
H1
d1
D1
d
D1
K
H
TABLE 1
Symbol
H(max.)
H1(max.)
D(max.)
D1(+1.0)
T(max.)
d(+0.1)
d1(+0.3)
K(max.)
W(+0.5)
Φ(M+0.2)
Dimensions
56.3
16.5
40.0
25.4
TABLE 2
0.5
3.4
3.18
7.0
3.8
TABLE 2
Model
201K
221K
241K
271K
301K
331K
361K
391K
431K
471K
511K
561K
T(max.)
6.2
6.3
6.4
6.6
6.8
6.9
7.1
7.3
7.5
7.8
8.9
8.3
Model
621K
681K
751K
781K
821K
911K
951K
102K
112K
122K
142K
162K
T(max.)
8.7
9.0
9.4
9.6
9.8
10.4
10.6
11.2
11.8
12.3
13.3
14.3
Warehouse Storage Conditions of Products
·
Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight.
·
Period of Storage: 1 year
