Gas Discharge Tube - 3RD-8Series

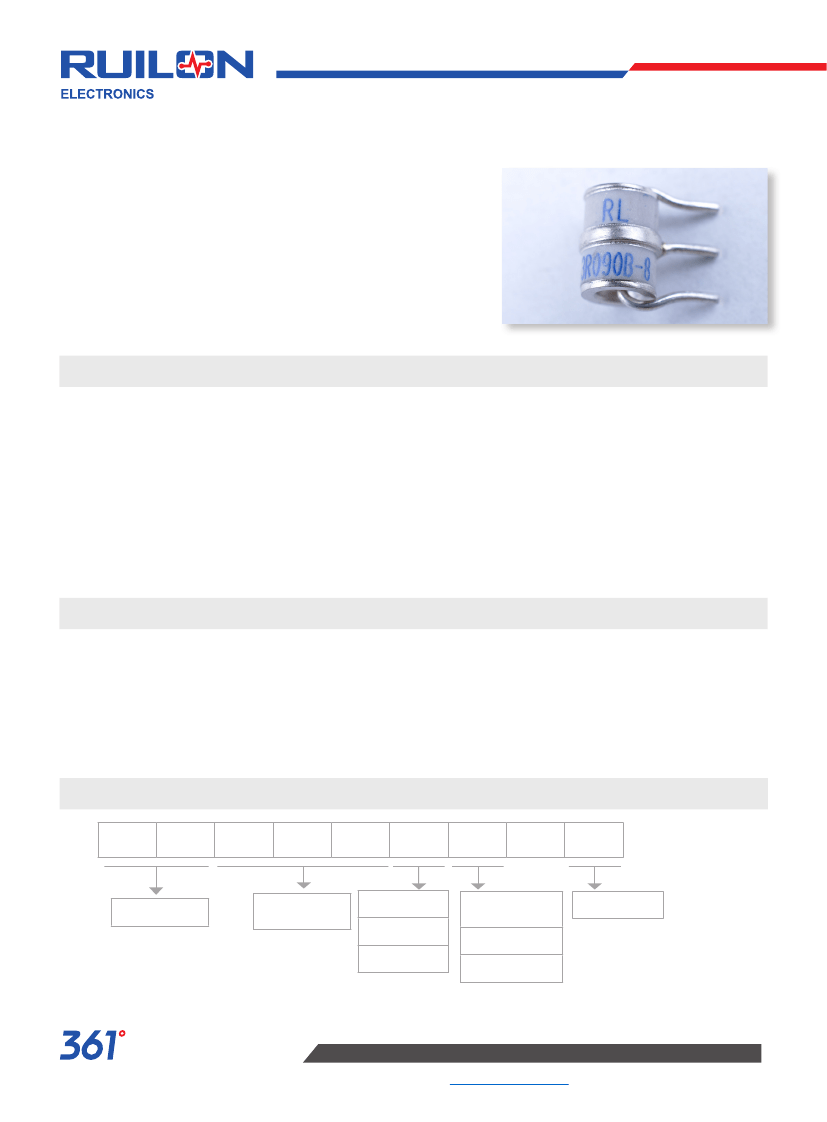

GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed
in ceramic tubes to provide an alternate circuit path for voltage spikes.The
ceramic envelope and with nickel connectors allow for high loads and Ruilon
offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.
The breakdown voltages of the devices have a wide range (up to 20%
tolerance).Major applications are high frequency telecommunication
lines,stations, security systems,HID and high quality Surge Protection
Devices (SPD).
Features
1. RoHS & HF compliant
2. Rugged ceramic-metal construction
3. Available with or without leads
4. Available with fail-safe clip
5. DC spark-over voltage:75~600V
6. Low capacitance
7. Agency recognition :UL
8. Operating temperature : -30°C ~ +85°C
Storage temperature: -40°C ~ +115°C
Recommended Applications
1. Cable Modem
2. xDSL
3. Set-Top Box
4. TV sets
5. Power supplier
6. Consumer electronics
Part Number Code
3
R
0
7
5
T
D
-
8
Series
DC Line
Voltage
Lead Type
T=Thrust
S=SMD
Electrical
Characteristics
A=5000A
D=20000A
Dimensions
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:1
Gas Discharge Tube - 3RD-8 Series
Electriacl Characteristics
DC
Spark-
over
Voltage
100V/S
T Series
S Series
T-F Series
(V)
Max.
Max.
Impulse Impulse
Impulse
Discharge Life(10/
Breakdown
Current 1000μs)
Voltage
(8/20μs)
100V/ 1KV/
10
100A
μs
μs
times
(V)
600
600
500
500
600
600
700
800
(V)
700
700
700
700
700
700
800
900
(KA)
20
20
20
20
20
20
20
20
20
20
(Times)
300
300
300
300
300
300
300
300
300
300
Normal
Alternating
Discharge
Current
50Hz,1Sec
(A)
20
20
20
20
20
20
20
20
20
20
DC
Holdover Minimum
Maximum
Voltage Insulation Capacitance
Resistance
(1MHz)
<150ms
(V)
52
52
135
135
150
150
150
150
150
150
(GΩ)
10
10
10
10
10
10
10
10
10
10
(pF)
2
2
2
2
2
2
2
2
2
2
Part No.
3R075TD-8 3R075SD-8 3R075TD-8F 75±20%
3R090TD-8 3R090SD-8 3R090TD-8F 90±20%
3R150TD-8 3R150SD-8 3R150TD-8F 150±20%
3R200TD-8 3R200SD-8 3R200TD-8F 200±20%
3R230TD-8 3R230SD-8 3R230TD-8F 230±20%
3R250TD-8 3R250SD-8 3R250TD-8F 250±20%
3R350TD-8 3R350SD-8 3R350TD-8F 350±20%
3R400TD-8 3R400SD-8 3R400TD-8F 400±20%
3R470TD-8 3R470SD-8 3R470TD-8F 470±20%
900 1000
3R600TD-8 3R600SD-8 3R600TD-8F 600±20% 1000 1100
DC Spark-over Voltage
75-90V
150-400V
420-600V
DC Measuring Voltage
50V
100V
250V
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:2
Gas Discharge Tube - 3RD-8Series

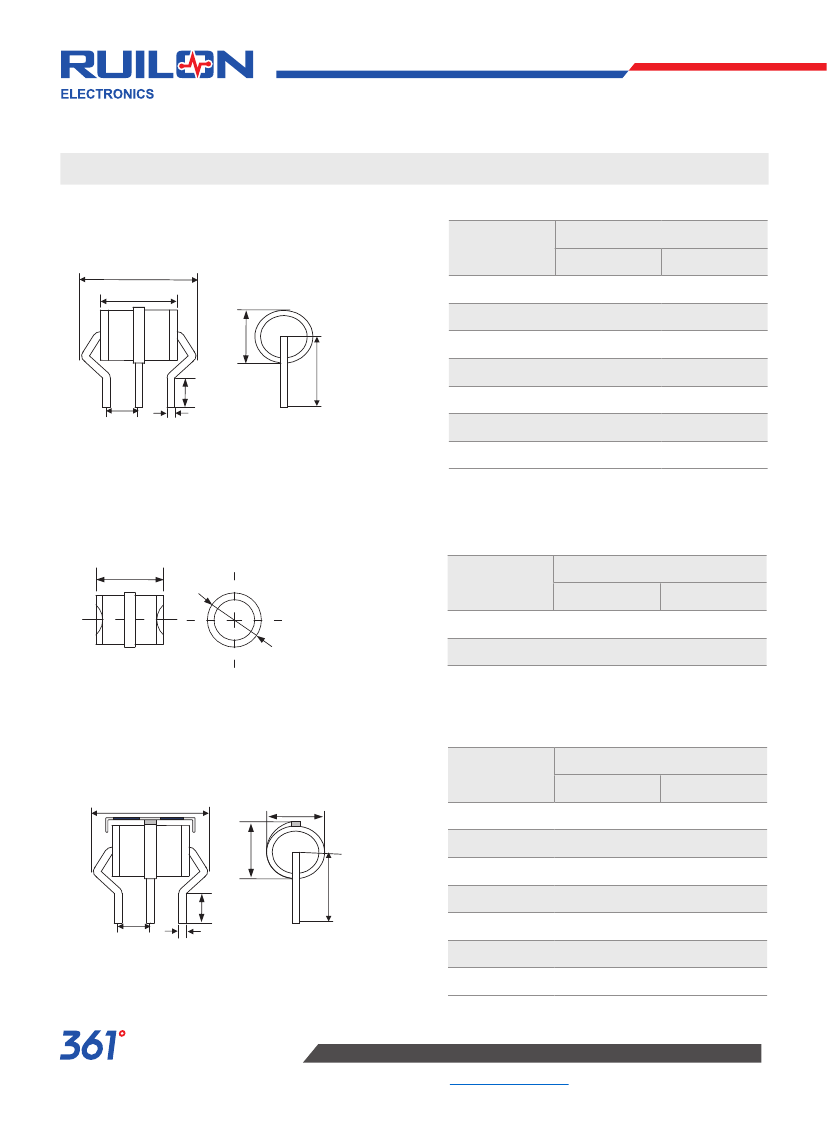

Dimension
□ = T (Axial lead type)
Item
T1
T
Unit:mm
Dimensions
Spec.
8.0
10.0
13.4
7.5
4.4
1.0
4.5
Tolerance
+0.2/-0.8
±0.5
+0.8/-0.5
±0.5
±0.4
±0.05
Min.
D
T
D
L
T1
L
S
d
H
S
d
H
□ = S (No lead type)
Unit:mm
T
Item
D
T
Dimensions
Spec.
8.0
10.0
Tolerance
+0.2/-0.8
±0.5
D
□ = F (No lead type)
Item
T1
R1
Unit:mm
Dimensions
Spec.
8.1
9.8
13.4
7.5
4.4
1.0
4.5
Tolerance
±0.3
±0.4
+0.8/-0.5
±0.5
±0.4
±0.05
Min.
R1
R2
L
R2
T1
L
S
S
d
H
d
H
Circuit Protection
System
Specifications are subject to change without notice.
Please refer to
http://www.ruilon.com
for current information.
Page:3
Gas Discharge Tube - 3RD-8 Series
Packaging Bulk
Unit:mm
Plastic Tray
(200x210x10mm)
Inner Box
(210x225x60mm)
Outside Box
(450x245x345mm)
100 PCS/ Plastic Tray
500 PCS/ Box
5,000 PCS/ Carton
Warehouse Storage Conditions of Products
·
Storage Conditions:
1. Storage Temperature: -10°C~+40°C
2. Relative Humidity:≤75%RH
3. Keep away from corrosive atmosphere and sunlight.
·
Period of Storage: 1 year
