L-7104RK/2ID datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-7104RK/2ID

L-7104RK/2ID: DescriptionT-1 SINGLE COLOR LED ARRAY, HIGH EFFICIENCY RED, 3mm, ROHS COMPLIANT PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size93KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-7104RK/2ID Overview

T-1 SINGLE COLOR LED ARRAY, HIGH EFFICIENCY RED, 3mm, ROHS COMPLIANT PACKAGE-4

L-7104RK/2ID Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	HIGH EFFICIENCY RED
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED RED
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	9.65 mm
method of packing	BULK
peak wavelength	627 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	40 deg

L-7104RK/2ID Preview

T-1 (3mm) BI-LEVEL LED INDICATOR

P/N: L-7104RK/2ID

HIGH EFFICIENCY RED

Features

PRE-TRIMMED LIADS FOR PC MOUNTING.

I.C.COMPATIBLE.

WIDE VIEWING ANGLE.

BLACK CASE ENHANCES CONTRAST RATIO.

HIGH RELIABILITY LIFE MEASURED IN YEARS.

UL RATING : 94V-0.

HOUSING MATERIAL:TYPE 66 NYLON.

RoHS COMPLIANT.

Description

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAE7317

APPROVED: J. Lu

REV NO: V.4

CHECKED: Allen Liu

DATE: NOV/17/2005

DRAWN: Y.W.WANG

PAGE: 1 OF 3

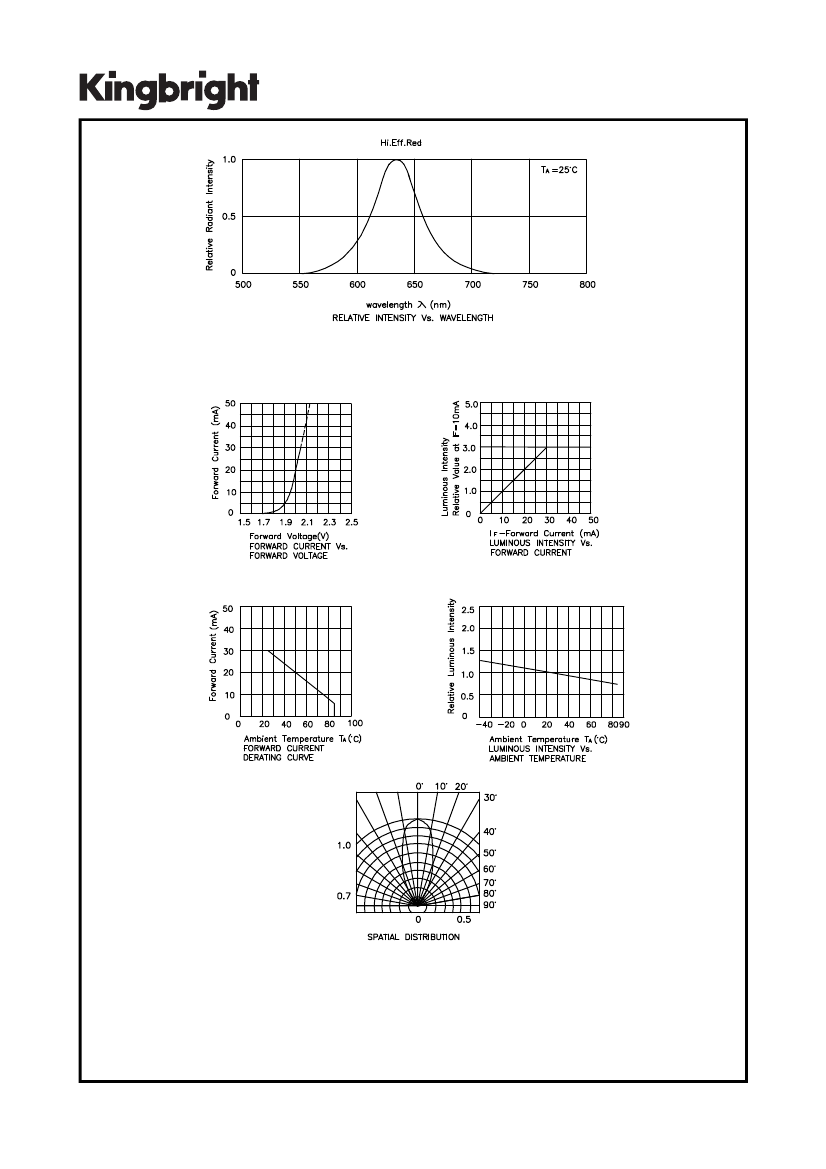

Selection Guide

Part No.

Dice

Lens Type

Iv (mcd)

@ 10mA

Min.

L-7104RK/2ID

HIGH EFFICIENCY RED (GaAsP/GaP)

RED DIFFUSED

Typ.

Viewing

Angle

1/2

Note:

θ1/2

is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

Electrical / Optical Characteristics at T

=25°C

Symbol

λpeak

λD

∆λ1/2

Parameter

Peak Wavelength

Dominant Wavelength

Spectral Line Half-width

Capacitance

Forward Voltage

Reverse Current

Device

High Efficiency Red

Typ.

627

625

2.0

2.5

Max.

Units

Test Conditions

=20mA

=0V;f=1MHz

=20mA

= 5V

Absolute Maximum Ratings at T

=25°C

Parameter

Power dissipation

DC Forward Current

Peak Forward Current [1]

Reverse Voltage

Operating/Storage Temperature

Lead Solder Temperature [2]

Lead Solder Temperature [3]

Notes:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.

2. 2mm below package base.

3. 5mm below package base.

High Efficiency Red

105

160

-40°C To +85°C

260°C For 3 Seconds

260°C For 5 Seconds

Units

SPEC NO: DSAE7317

APPROVED: J. Lu

REV NO: V.4

CHECKED: Allen Liu

DATE: NOV/17/2005

DRAWN: Y.W.WANG

PAGE: 2 OF 3

High Efficiency Red

L-7104RK/2ID

Remarks:

If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux or wavelength),

the typical accuracy of the sorting process is as follows:

1. Wavelength: +/-1nm

2. Luminous Intensity/ Luminous Flux: +/-15%

3. Forward Voltage: +/-0.1V

Note: Accuracy may depend on the sorting parameters.

SPEC NO: DSAE7317

APPROVED: J. Lu

REV NO: V.4

CHECKED: Allen Liu

DATE: NOV/17/2005

DRAWN: Y.W.WANG

PAGE: 3 OF 3

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
