SLK402540G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SLK402540G

SLK402540G: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerFischer Elektronik; Environmental Compliance

Download Datasheet Parametric View All

SLK402540G Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

SLK402540G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SL
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

2.54

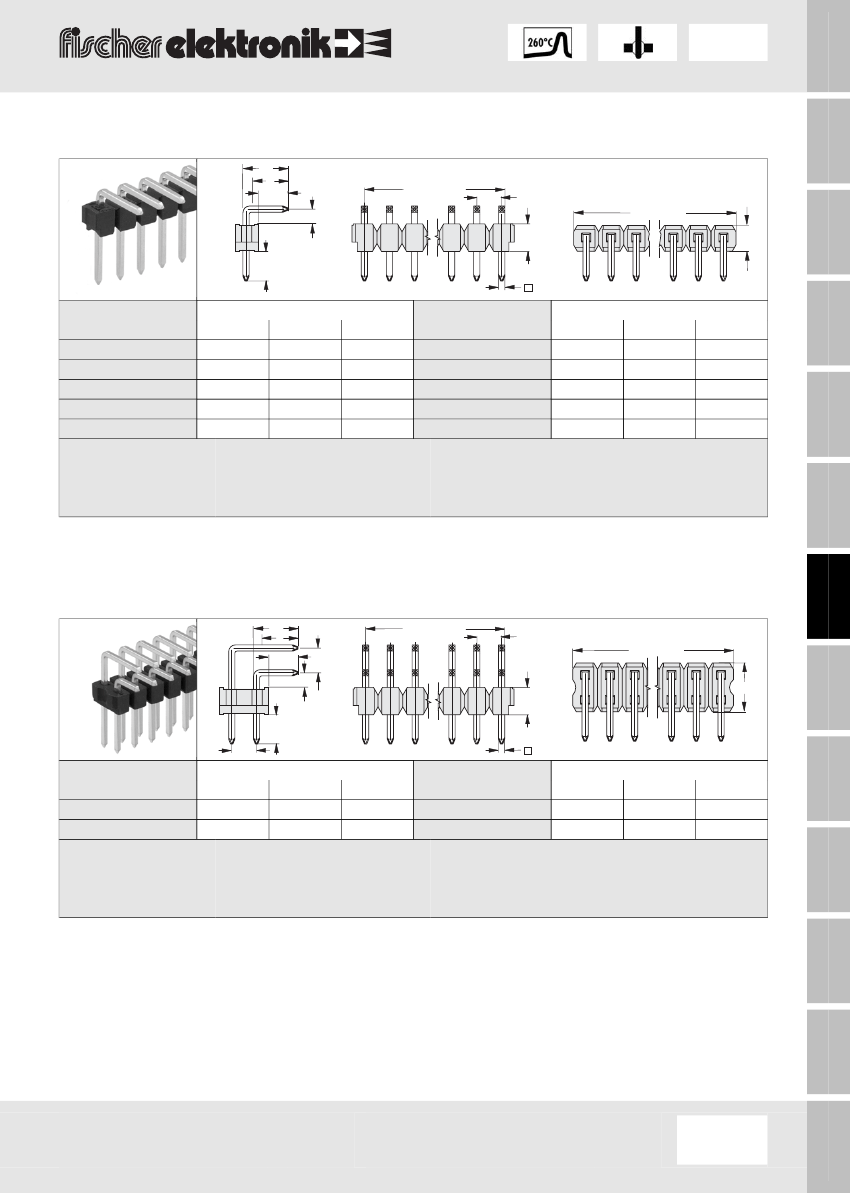

Male headers soldering technique

"dimensions A + B" changeable

one row,

0.635 mm

S = 5 mm

n - 1 x 2,54

1,5

2,54

n x 2,54

2,8

0,635

art. no.

SLK 3 025 ...

SL 3 025 ...

SL 3 053 ...

SL 3 080 ...

SL 3 101 ...

please indicate:

4.50

6.90

9.50

11.60

dim. [mm]

3.00

5.40

8.00

10.10

art. no.

3.00

5.80

131

152

182

207

...

14.60

16.70

19.70

22.20

dim. [mm]

13.10

15.20

18.20

20.70

2,5

5.80

... no. of contacts

one row 1-36

... surface

S =selective gold-plated

G=gold-plated

Z =tin-plated

The surface of dimension "C" of following articles is selective gold-plated: SLK 3 025 ... S, SL 3 025 ... S.

two rows,

0.635 mm

1,5

S = 5 mm

2,54

n/2 - 1 x 2,54

2,54

n/2 x 2,54

2,8

2,54

0,635

art. no.

SLK 4 025 ...

SL 4 025 ...

please indicate:

4.50

dim. [mm]

3.00

art. no.

3.00

5.80

SL 4 101 ...

SL 4 152 ...

11.60

16.70

dim. [mm]

10.10

15.20

5.80

... no. of contacts

two rows 2-72

... surface

S =selective gold-plated

G=gold-plated

Z =tin-plated

The surface of dimension "C" of following articles is selective gold-plated: SLK 4 025 ... S, SL 4 025 ... S.

V-notches permit breaking! Therefore any required number of contacts is available.

Every pin length is available on request.

IDC-connectors

Female headers 2.54 solder

Female headers 2.54 SMD

Fem. head. 2.54 solder, put through

➔

H 1 - 14

G 27

G 46 - 49

G 29

Special male & female headers

➔

High-prec. fem. headers 2.54 sold.

➔

High-prec.male head.in SMD mount.

➔

Technical data

➔

31 - 34

75 - 80

G 10
