DF005S - DF10S
PRV : 50 - 1000 Volts
Io : 1.0 Ampere
FEATURES :
*
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Ideal for printed circuit board
Pb / RoHS Free
SURFACE MOUNT
BRIDGE RECTIFIERS
DFS
0.205(5.2)
0.195(5.0)
~
0.049(1.25)
0.038(0.95)
~
0.410(10.4)
0.360(9.4)
0.346(8.8)
0.307(7.8)
0.255(6.5)
0.245(6.2)
MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-0 rate flame retardant
* Terminals : Leads solderable per MIL-STD-202,
method 208 guaranteed
* Mounting position : Any
* Weight : 0.02 ounce, 0.4 gram
0.126(3.2)
0.102(2.6)
0.060(1.524)
0.040(1.016)
Max.0.009
(0.23)
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified. 60 Hz, resistive or inductive load.
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Output
Rectified Current at Ta = 40
°C
Maximum Peak Forward Surge Current
Single half sine wave Superimposed
on rated load (JEDEC Method)
Current Squared Time at t < 8.3 ms.
Maximum Instantaneous Forward Voltage
per element at I
F
= 1.0 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Ta = 25 °
C
Ta = 125 °
C
SYMBOL
DF005S DF01S DF02S DF04S DF06S DF08S DF10S
UNIT
V
RRM
V
RMS
V
DC
I
F(AV)
50
35
50
100
70
100
200
140
200
400
280
400
1.0
600
420
600
800
560
800
1000
700
1000
V
V
V
A
I
FSM
I
2
t
V
F
I
R
I
R(H)
Cj
R
ѲJA
T
J
, T
STG
50
10
1.1
10
500
25
40
- 55 to + 150
A
A
2
S
V
µA
µA
pF
°C/W
°C
Typical Junction Capacitance per element (Note 1)
Typical Thermal Resistance (Note 2)
Junction and Storage Temperature Range
Notes :
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0VDC
(2) Thermal Resistance from Junction to Ambient on P.C.B. with 0.5" x 0.5" (13mm x 13mm) Copper Pads.
Page 1 of 2

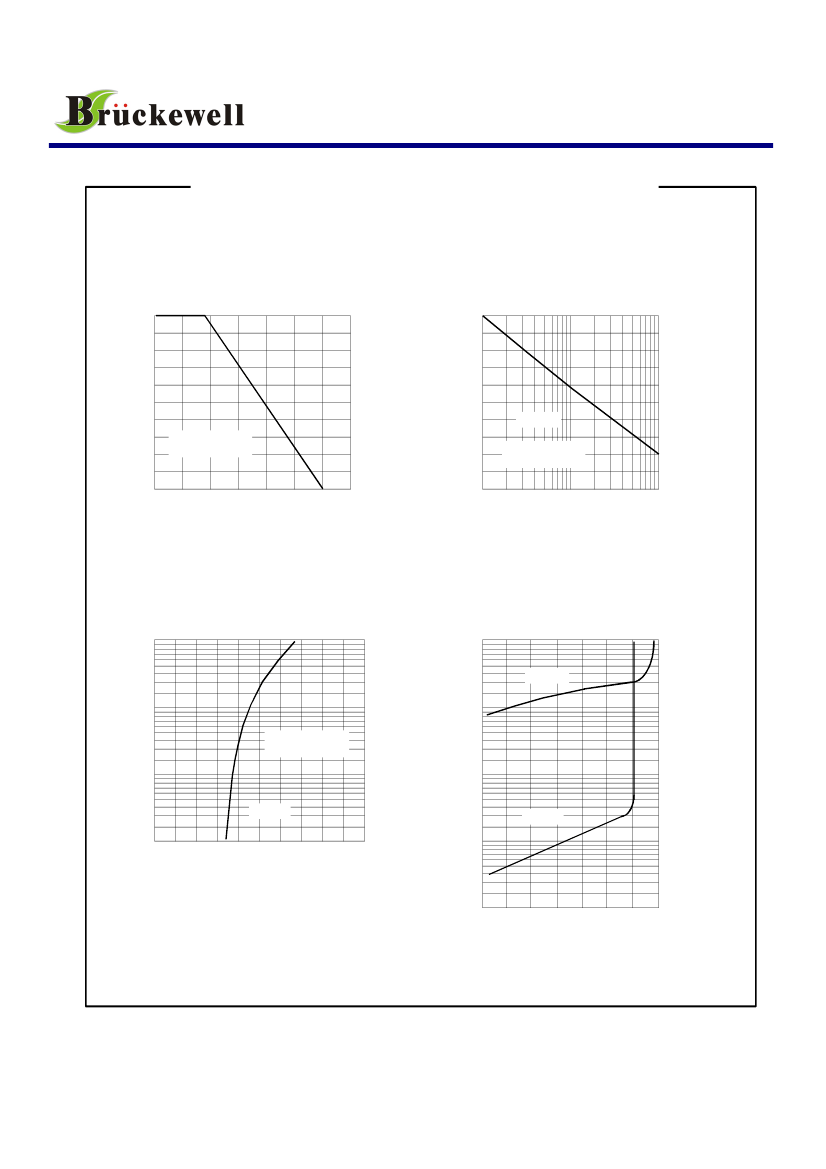

RATING AND CHARACTERISTIC CURVES ( DF005S - DF10S )
FIG.1 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PER BRIDGE ELEMENT
50
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
1.0
PEAK FORWARD SURGE
CURRENT, AMPERES
0.8
40
0.6
30
0.4
60Hz RESISTIVE OR
INDUCTIVE LOAD
20
T
J
= 150
°C
SINGLE SINE-WAVE
(JEDEC METHOD)
0.2
10
0 0
25
50
75
100
125
150
175
0
1
2
4
6
10
20
40
60
100
AMBIENT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
10
100
FORWARD CURRENT, AMPERES
REVERSE CURRENT, MICROAMPERES
T
J
= 125
°C
1
10
Pulse Width = 300
µs
2% Duty Cycle
0.1
1.0
T
J
= 25
°C
T
J
= 25
°C
0.1
0.01
0
0.2
0.4
0.6
0.8
1.0 1.2
1.4
1.6
1.8
2.0
FORWARD VOLTAGE, VOLTS
0.0
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK
REVERSE VOLTAGE, (%)
Page 2 of 2
