UNISONIC TECHNOLOGIES CO., LTD
UFP264
38A, 250V N-CHANNEL
POWER MOSFET
DESCRIPTION
Power MOSFET
The UTC
UFP264
is an N-channel power MOSFET using UTC’s
advanced technology to provide the customers with perfect R
DS(ON)
,
high switching speed, high current capacity and low gate charge.
The UTC
UFP264
is suitable for motor control, AC-DC or DC-DC
converters and audio amplifiers, etc.
FEATURES
* R
DS(ON)
<75mΩ @ V
GS
=10V,I
D
=38A
* High Switching Speed
* High Current Capacity
* Low Gate Charge(typical 130nC)

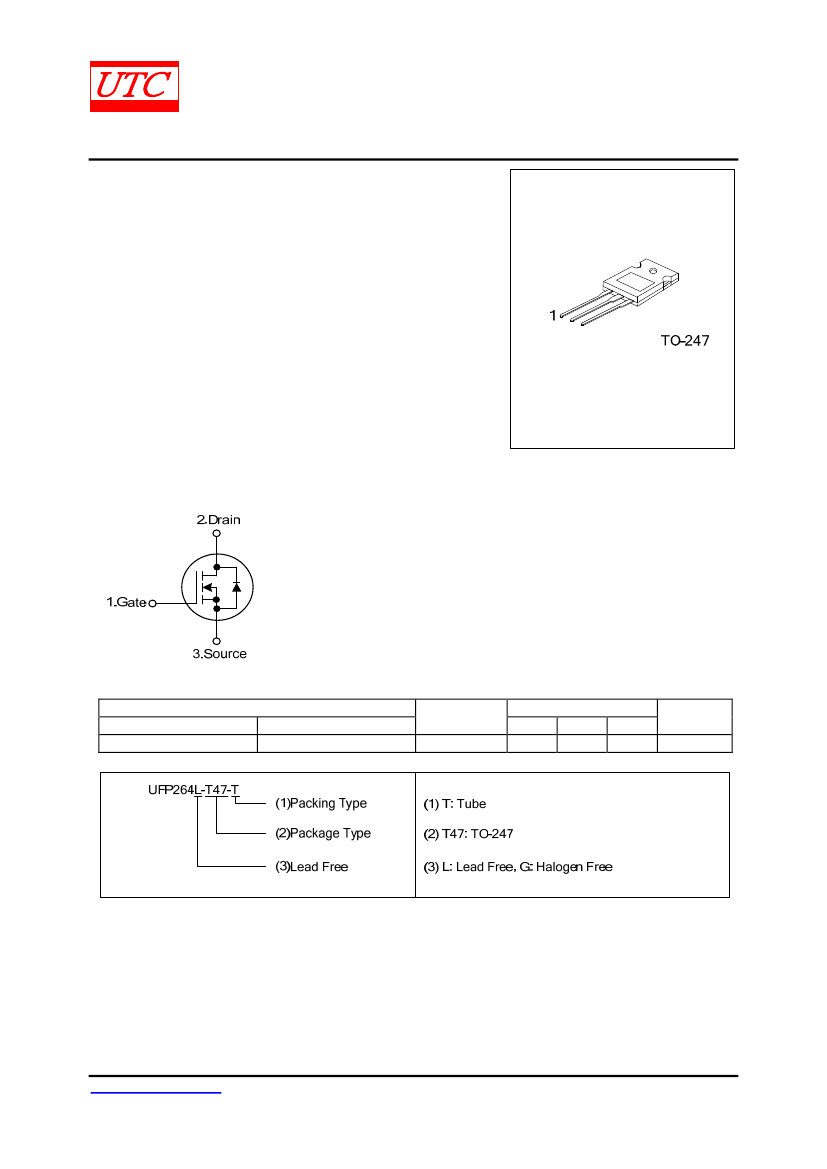

SYMBOL
ORDERING INFORMATION
Package
TO-247
Pin Assignment
1
2
3
G
D
S
Packing
Tube
Ordering Number
Lead Free
Halogen Free
UFP264L-T47-T
UFP264G-T47-T
Note: Pin Assignment: G: Gate D: Drain
S: Source
www.unisonic.com.tw
Copyright © 2013 Unisonic Technologies Co., Ltd
1 of 3
QW-R502-813.B
UFP264
PARAMETER
Drain-Source Voltage (V
GS
=0)
Gate-Source Voltage
Continuous
Drain Current
Pulsed (Note 1)
SYMBOL
V
DSS
V
GSS
I
D
I
DM
E
AS
E
AR
Power MOSFET
ABSOLUTE MAXIMUM RATINGS
(T
C
=25°C, unless otherwise specified)(Note 1)
RATINGS
UNIT
250
V
±20
V
38
A
152
A
1000
mJ
Avalanche Energy
28
mJ
Power Dissipation
280
W
P
D
Derate above 25°C
2.2
mW/°C
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Pulse width limited by safe operating area
3. V
DD
=50V, L=1.1mH, R
G
=25Ω, I
AS
=38A
THERMAL DATA
SYMBOL
θ
JA
θ
JC
RATINGS
40
0.45
UNIT
°C/W
°C/W
PARAMETER
Junction to Ambient
Junction to Case
ELECTRICAL CHARACTERISTICS
(T
C
=25°C, unless otherwise specified)
MIN TYP MAX UNIT
250
25
+100
-100
2
3
4
75
V
µA
nA
nA
V
mΩ
pF
pF
pF
170
nC
nC
nC
ns
ns
ns
ns
A
A
V
PARAMETER
SYMBOL
TEST CONDITIONS
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
BV
DSS
I
D
=250µA, V
GS
=0V
Drain-Source Leakage Current
I
DSS
V
DS
=250V, V
GS
=0V
Forward
V
GS
=+20V, V
DS
=0V
Gate-Source Leakage Current
I
GSS
Reverse
V
GS
=-20V, V
DS
=0V
ON CHARACTERISTICS
(Note 2)
Gate Threshold Voltage
V
GS(TH)
V
DS
=V
GS
, I
D
=250µA
Static Drain-Source On-State Resistance
R
DS(ON)
V
GS
=10V, I
D
=23A
DYNAMIC PARAMETERS
Input Capacitance
C
ISS
V
GS
=0V, V
DS
=25V, f=1.0MHz
Output Capacitance
C
OSS
Reverse Transfer Capacitance
C
RSS
SWITCHING PARAMETERS
Total Gate Charge
Q
G
V
GS
=10V, V
DD
=40V, I
D
=38A
Gate to Source Charge
Q
GS
Gate to Drain Charge
Q
GD
Turn-ON Delay Time
t
D(ON)
Rise Time
t
R
V
DD
=30V, I
D
=1A, R
G
=4.7Ω,
V
GS
=10V
Fall-Time
t
F
Off-Voltage Rise Time
t
R(OFF)
SOURCE- DRAIN DIODE RATINGS AND CHARACTERISTICS
Maximum Body-Diode Continuous Current
I
S
(Note 1)
Maximum Body-Diode Pulsed Current
I
SM
Drain-Source Diode Forward Voltage
V
SD
I
SD
=38A, V
GS
=0V (Note 2)
Notes: 1. Pulse width limited by safe operating area
2. Pulsed: Pulse duration=300µs, Duty cycle
≤2%
3900
950
250
130
26
55
30
180
35
135
38
152
1.8
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R502-813.B
UFP264
Power MOSFET

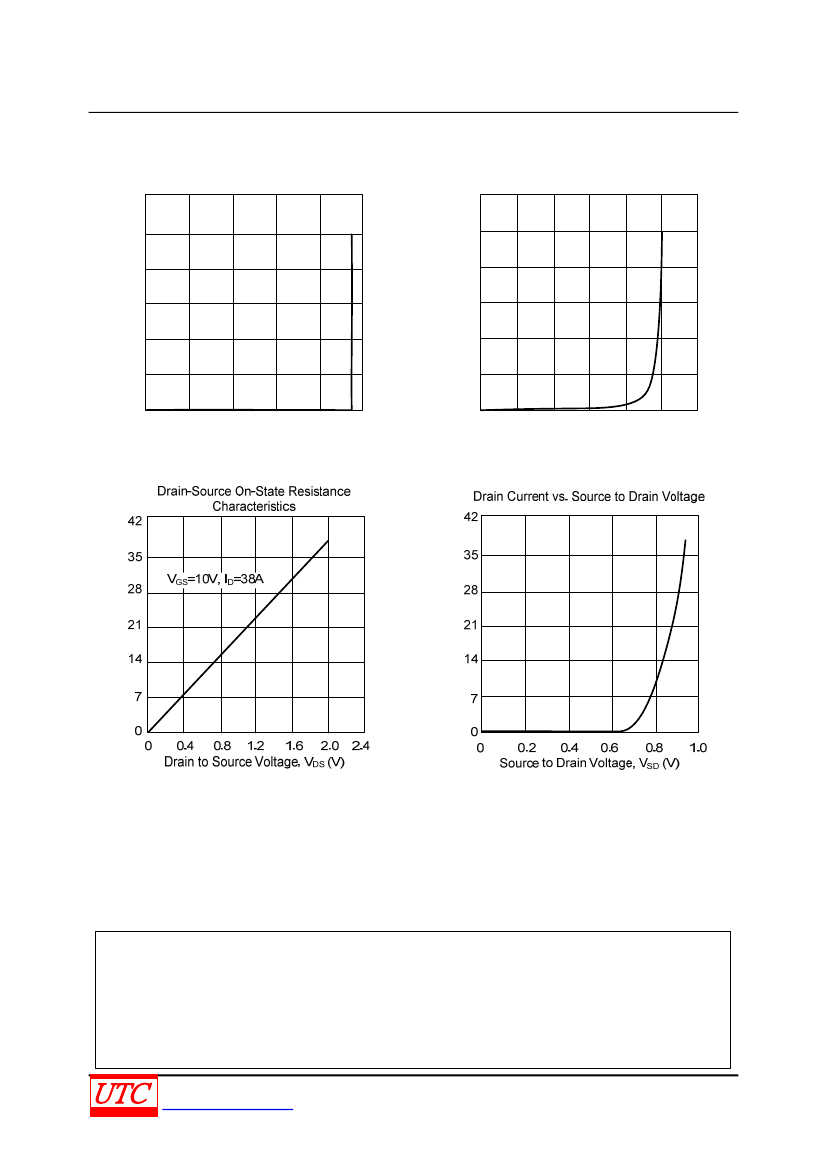

TYPICAL CHARACTERISTICS
Drain Current vs. Drain-Source
Breakdown Voltage
Drain Current vs. Gate Threshold Voltage
300
250
Drain Current, I
D
(µA)
0
60
120
180
240
300
200
150
100
50
0
0
300
Drain Current, I
D
(µA)
250
200
150
100
50
0
0.6
1.2
1.8
2.4
3.0
3.8
Drain-Source Breakdown Voltage, BV
DSS
(V)
Gate Threshold Voltage, V
TH
(V)
Drain Current, I
D
(A)
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
Drain Current, I
D
(A)
3 of 3
QW-R502-813.B
