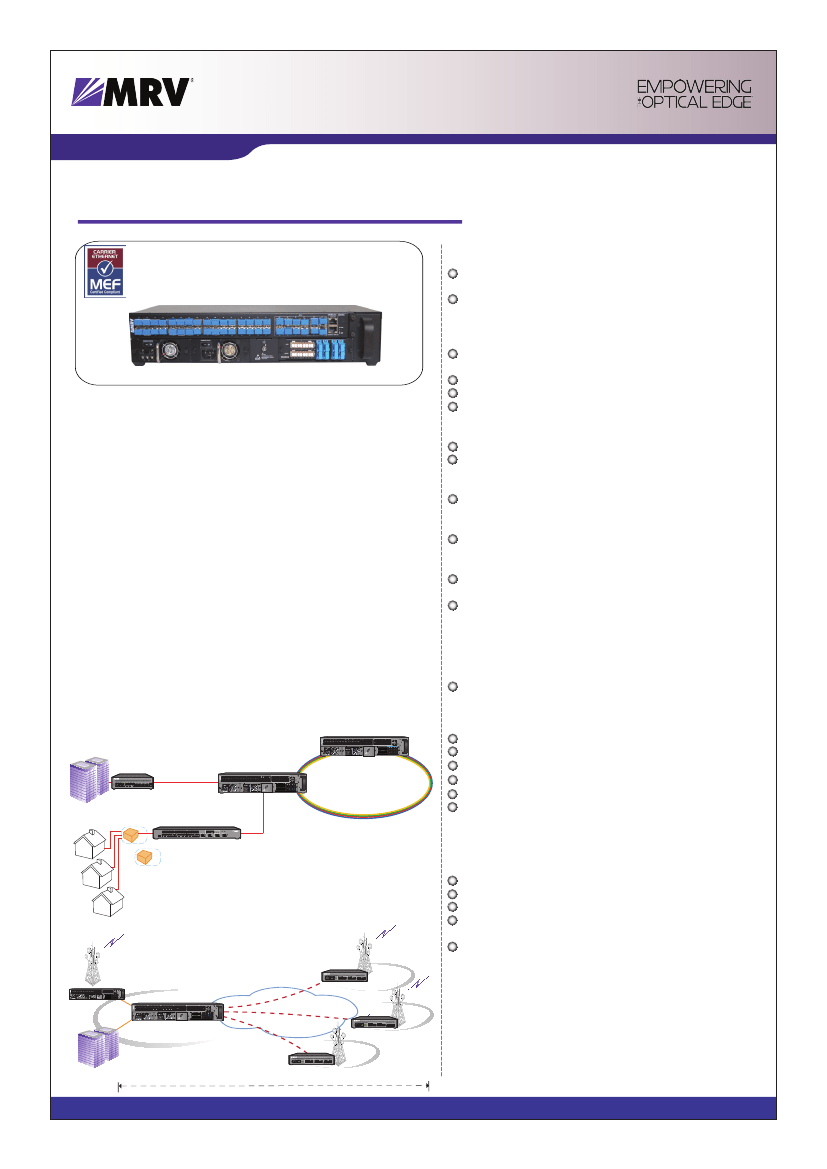

Datasheet
OptiSwitch
®
9244-1210G
Carrier-Ethernet Packet-Optical Aggregation
Product highlights
Cost-effective 1
st
- mile Carrier Ethernet aggregation platform
- Offloads Provider Edge 10GE ports
Very high port density to form factor ratio with lowest power
consumption
- Compact 2RU form factor with ETSI compatible depth for
space saving
MRV Unified Master-OS
®
control plane for Metro-E services
- Simplifies operation and management integration with OSS
MEF-compliant Carrier Ethernet 2.0 services
Non-blocking hardware architecture
Physical interfaces:
- 32 x 100 (SGMII)/1000/2000 FX ports
- 12 x 1000FX / 10000FX ports
Supports 10GE LAN/WAN(STM-64/OC192) PHY
Flexible UNI/NNI interfaces - 100FX/1000FX/2000FX and 10GE
- Same device for all aggregation scenarios
- Support for jumbo frames on all ports
Exceptional variety of Optical Layer 1 & Layer 2 VPN Services
- EPL X-connect, E-Line, E-Tree and E-LAN
- Any-to-any transparent cross-connect - eROADM services
Advanced traffic management with line rate performance
- Classification, policing, metering, marking per-flow QoS
- Low-latency and precise service rates
Unmatched flexibility of Ethernet Virtual Circuits
- Selective Q-in-Q and VLAN translation
End-to-end Ethernet service OAM to monitor SLAs
- Simplifies, monitors and troubleshoots services/applications
- Standards compliance per CFM IEEE802.1ag / PM ITU-T Y.1731
- RFC 2544 throughput measurements
- IP SLA measurements
- EFM link OAM – IEEE802.3ah
Protection mechanisms
- ERPS G.8032 and ELPS G.8031
- Link Protection 1:1 (LOS) and n+1 (LAG)
- Sub 50ms SONET-like recovery and deterministic SLA
Multicasting service for IP-TV Triple Play
Hot-swappable fully redundant power supplies
Hot-swappable pluggable fan tray
sFlow support for Application-Aware Networking
Excellent price/performance for rapid ROI
Zero-touch provisioning with rapid service turn-up
(with Pro-Vision Service Provisioning and NMS)
OS9244 - 1210G
MRV OptiSwitch
®
9244-1210G is a fully compliant MEF Carrier-Ethernet
2.0 and compact packet-optical aggregation platform for 1
st
and 2
nd
mile optical FE , GE and 10GE NGN infrastructures.
The platform is one of the industry’s highest port density 2RU
aggregation platform with a total bandwith support of 200Gbps with
32 x FE/1GE/2.5GE (SFP) ports + 12 x 1GE/10GE (SFP+) ports.
The platform’s multi-purpose service slot can be populated with all
MRV’s OptiSwitch modules including CES (E1/T1 & STM-1/OC3) for
delivery of TDM services over Ethernet networks, and WDM Optical
Transport.
The OptiSwitch 9244-1210G provides service providers with a full
suite of carrier-grade Ethernet services along with high-availability,
enhanced quality of service, security, Operations, Administration and
Maintenance (OAM) support, and Packet-WDM. The uniqueness of a
full suite of Carrier-Ethernet and MPLS tools makes this platform a
perfect solution for delivery of SLA-based business Ethernet and
Mobile Backhaul services.
OS9244-1210G
SFP+
COM1
CAUTION
This assembly contains
electronically sensitive
components
O9ADCD
47 49 51 53 47 49 51 53
OS906G
OS-906G
L I A
L I A
L I A
L I A
L I A
L
L
S1
BITS
OS9244-1210G
FE/GE/2.5G
SFP+
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
OS9244 -1210G
L MGT ETH A
PS2 FAN
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
PS1 TMP
CONSOLE EIA-232
PS2 FAN
EM9005 PS/DC
EM9005 PS/AC
WDM P-OTS
EXP1
OUT
PS1 PWR
CONSOLE EIA-232
MGT ETH
IN
COM1
CAUTION
This assembly contains
electronically sensitive
components
O9ADCD
47 49 51 53 47 49 51 53
10GE
OS940
PS2
CONSOLE EIA-232
USB HOST
L
A
1
2
3
4
5
6
7
8
9
10
11
12
13
10GE-XFP
L
A
14
10GE-XFP
PS1
L
A
15
10GE-XFP
TMP
FAN
L
A
16
10GE-XFP
OptiSwitch OS940
COM2
DROP
IN
1
2
3
4
1
2
A
5
A
6
S2
47 49 51 53 47 49 51 53
EXP2
ADD
COM2
Business Ethernet Services
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
OS9244 -1210G
L MGT ETH A
PS2 FAN
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
PS1 TMP
CONSOLE EIA-232
EM9005 PS/DC
EM9005 PS/AC
EXP1
OUT
47 49 51 53 47 49 51 53
IN
DROP
IN
EXP2
ADD
Triple Play Services
Applications
IPTV services
1
st
-mile aggregation for business Ethernet services
Cell-site aggregation for Ethernet mobile backhaull
10GE and fractional sub-10GE ERPS G.8032 and ELPS
G.8031protected services
Lambda services – fiber optimization through C/DWDM
integration
Ethernet Mobile Backhaul Services
2G/2.5G
BTS
OS-904
BSC/RNC/S-GW
SFP+
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
MGT
PWR
CONSOLE EIA-232
MGT ETH
1 2 3 4
L
A
1
2
OS9244 -1210G
L MGT ETH A
PS2 FAN
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
CONSOLE EIA-232PS1
TMP
EM9005 PS/DC
EM9005 PS/AC
EXP1
OUT
47
49
51
53
47
49
51
53
IN
COM1
CAUTION
This assembly contains
electronically sensitive
components
O9ADCD
47
49
51
53
47
49
51
53
COM2
DROP
IN
EXP2
ADD
SFP+
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
OS9244 -1210G
L MGT ETH A
PS2 FAN
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
PS1 TMP
CONSOLE EIA-232
EM9005 PS/DC
EM9005 PS/AC
EXP1
OUT
47
49
51
53
47
49
51
53
IN
COM1
CAUTION
This assembly contains
electronically sensitive
components
O9ADCD
47
49
51
53
47
49
51
53
COM2
DROP
IN
EXP2
ADD
Optical Packet
Switched Network
OS-904
OS-904
MGT
PWR
CONSOLE EIA-232
MGT ETH
1 2 3 4
L
A
1
2
3G
Node B
4G
eNode B
MGT
PWR
CONSOLE EIA-232
MGT ETH
1 2 3 4
L
A
1
2
End - to - end Service OAM
Not sure which solution best suits your needs? Visit www.mrv.com or e-mail us at sales@mrv.
OptiSwitch
®
Metro Ethernet solution meets IEEE, ITU, IETF, and MEF standards, offering complete control to simplify deployment
and management, while maintaining full interoperability and guaranteed SLAs.

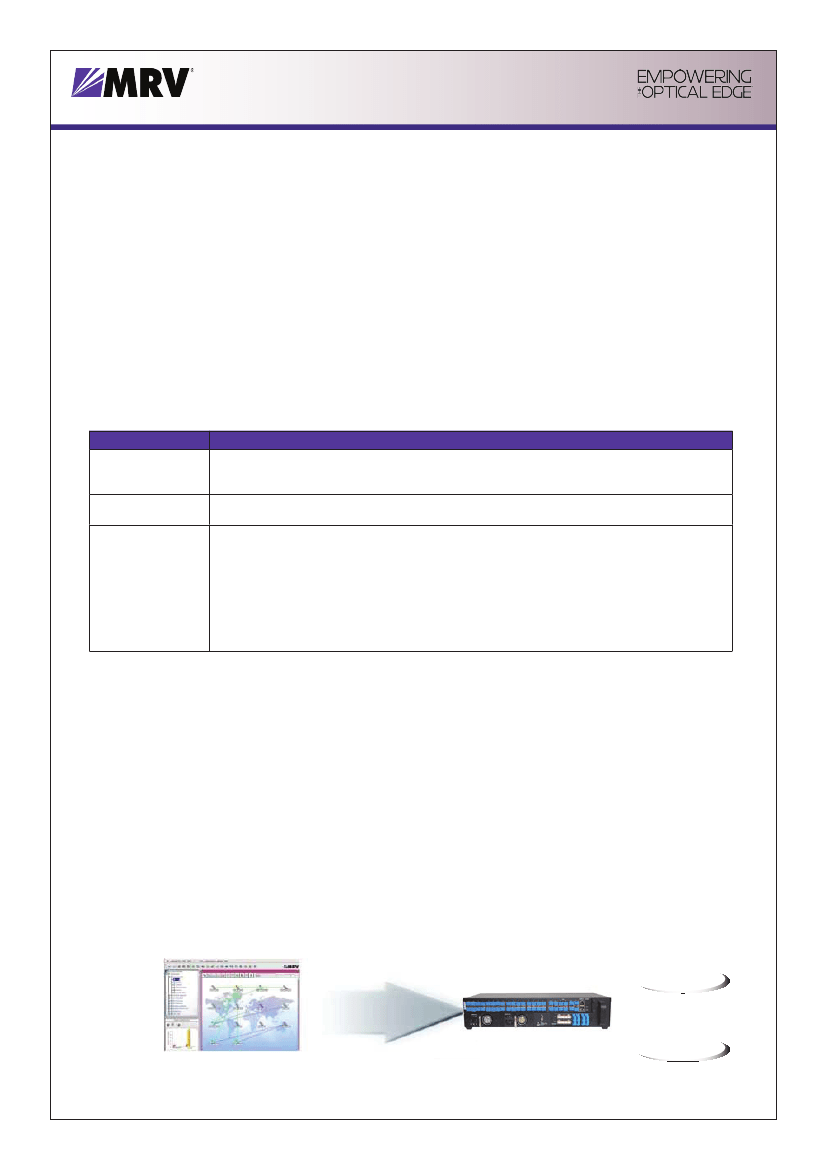

Features and Solution Benefits
OS9244-1210G platform is a high-performance Carrier Ethernet Aggregation Platform with non-blocking hardware and software
architecture engineered for deployment in new and demanding packet-optical network environments to support the provider’s
value-added service offering. By integrating packet switching and aggregation with WDM transport, the OS9244-1210G enables
increased efficiencies in bandwidth utilization, optimizing interfacing, and simplifying the network by eliminating the need for
dedicated hardware. For service providers who build next-generation optical networks, the consolidation of WDM services with
intelligent traffic forwarding on the same platform offers significant savings in capital expenditure.
Multipurpose Service Interfaces
The platform offers a unique combination of features and optical interfaces that enable suitable, easy,
and flexible field configurations while making it ideal for maintenance and inventory.
The integration of CWDM / DWDM eliminates the need for a transponder in the network, and offers better fiber optimization along
physical services separation with dedicated 1Gbps and 10Gbps rates for premium optical services with the same concept as that
of legacy “leased-line” services.
Port numbering
Ports 1-32
Service Interface Options
100BaseFX - SGMII 100FX SFPs
1000BaseFX - standard GigE SFPs
2.5Gbps - 2000BaseFX - Standard multi-rate SFPs
1000BaseFX - standard GigE SFPs
10000BaseFX - SFPs +
E1/T1 CES
STM-1/OC3 CES
WDM Services
ITU-T G.694.1 Standard (DWDM)
ITU-T G.694.2 Standard (CWDM)
OADMs, MUX/DEMUX
Ports 33-44
Multi-service
Expansion Slot
•
•
•
•
•
All Interfaces can be configured as UNI / NNI to enable access to edge and intra-network services
100FX (SGMII) and 1000FX interfaces can be muxponded over 10GE interface at dedicated wavelength
Hot swappable SFP/SFP+ pluggable optics to ensure flexible distance, cost and performance
Pluggable SFP/SFP+ ports support distances from short to long haul, single strand and CWDM and DWDM optics
Remote Optical Level monitoring and alarm thresholds of ports
End-to-end Service Provisioning and OAM
Pro-Vision
®
is MRV’s carrier-class service provisioning & management system that offers service providers a wide range of
applications & tools to fully manage and control large-scale MEF compliant Carrier Ethernet based data, voice, and video services.
The GUI-based software allows service provisioning, monitoring, and troubleshooting from an easy-to-use central network
management application. Pro-Vision complements the OptiSwitch 900 Carrier Ethernet Demarcation and OptiSwitch 9000 packet
-optical aggregation portfolio. Pro-Vision provides rapid service creation, comprehensive performance monitoring (including real-
time performance metrics), port, and EVC utilization. Pro-Vision offers Web-based customer portal that allows the monitoring of
real time service performance and SLA verification based on the customer’s view. Pro-Vision supports standard based Web services
northbound interface using SOAP/XML, CORBA, and SNMP for interconnection with SP & equipment vendor OSS systems.
Packet
WDM
End-to-end service provisioning and activation across network infrastructure
MEF compliant Carrier Ethernet 2.0 Services
•
UNI Type 1 and Type 2 (MEF21)
•
External-NNI
•
EPL, E-Line, E-Tree & E-LAN – MEF9
•
EPL, E-Line, E-Tree & E-LAN Traffic Mgt. – MEF14
•
OAM Implementation Agreement (IA) – MEF17
•
All interfaces can be configured as UNI / ENNI
Packet Switching Services
•
200Gbps (Full-duplex) non-blocking wire-speed architecture
•
Configurable for jumbo frames per port/EVC
•
Packet buffer management
•
IEEE802.1Q and IEEE802.1ad provider bridges
- 4K active VLANs / EVCs
- Selective Q-in-Q stacking per ACL criteria
- Configurable Ethertype values
- Private VLAN
•
Transparent cross-connect mode
- Per System, per port, or per EVC non-learning mode
•
Learning table limit per VLAN/port
•
Layer 2 control protocols tunneling
•
UNI protected ports/Layer 1 filtering
•
Provider Backbone Bridging (PBB) per 802.1ah
*
Protection Services
•
Sub 50 ms ring and dual–homed topologies
•
ITU-T G.8032 v2 Ethernet Ring Protection Switching
•
ITU-T G.8031 Ethernet Linear Protection Switching
•
MSTP per IEEE802.1s
•
Link Aggregation (LAG n+1) – static and LACP
- Load balancing based on L2-3-4 headers
•
Link level 1:1 Loss of Signal (LOS) protection
•
CFM (OAM) messages for fault detection and link fallback
•
Bidirectional Link Fault Reflection
•
Link flap protection and damping
•
Unidirectional Link Detection
Multicast and IP Services
•
Wire speed multicast replication
•
IGMP v1,v2 snooping , proxy and fast leave
•
Wire-speed IPv4 / IPv6
*
packet routing
- RIP, OSPF, IS-IS, BGP-4, VRRP
- Secondary interfaces
- DHCP server/client/relay
MPLS Services
•
Ethernet over MPLS pseudowire with Traffic Engineering
•
H-VPLS dual-homed spoke MTU-s
- LDP, RSVP-TE, OSPF-TE, ISIS-TE, CSPF
*
• MPLS LER & LSR functionality
•
MPLS-Transport Profile – MPLS-TP
*
Security
•
Wire-speed ACLs on L2-3-4 headers
- Up to 8K rules
- Ingress and Egress ACLs
- Multiple actions in single ACL
•
CPU Denial-of-Service protection
•
MAC filters and MAC limit per port/per VLAN
•
UNI Broadcast/Multicast/Unicast rate control
•
Flood limiting of OAM frames
•
ARP rate control
•
DHCP option 82 & option 60
•
ACL for management sessions from NOC
•
View-based Access Control Model (VACM)
Traffic Management
•
Inbound & Outbound traffic management per flow/EVC
•
In-service circuit parameter changes (hitless ACL)
•
Dual-rate 3-color rate limit per flow or aggregate
- Granular CIR/EIR rates up to 10GE
• Color-Aware BW-Profile
• WRED
•
Classification by any L2-3-4 criteria and combinations thereof
- Physical port, MAC, Ethertype, VLAN, IP/TCP/UDP
•
IEEE 802.1p (VPT), DiffServ (IPv4 & IPv6 TC)
•
Marking/remarking profiles between layers
- 802.1p, DSCP & MPLS EXP
•
8 hardware queues per port & configurable SL
•
Per flow SLA metrics
- Per UNI, CoS, EVC, control protocols
- 16,000 counters
Availability
•
1:1 hot-swappable dual redundant power – AC/DC mix
• Hot-swappable pluggable fan tray
•
Temperature sensor for environmental alerts
•
Dual image & rollback processes
Management & Diagnostics Tools
•
Industry Standard CLI
•
Out-of-band management
- EIA-232 port
- Ethernet port
•
Out-of-band Ethernet management - Dedicated ETH port
•
TELNET, SSH v2, SNMPv3, RMON (4 groups)
•
Port mirroring - ingress & egress traffic to analyzer port / VLAN
•
Remote service/flow mirroring per ACL
•
PING, Traceroute, DNS lookup, TCP dump (built-in sniffer)
•
Management ACL for trusted connections (TELNET/SSH/
SNMP)
•
Hierarchical Administration policy
•
RADIUS / TACACS+ AAA for management sessions
•
Configuration load/save using FTP, Secure Copy (SCP)
•
Network Time Protocol (NTP)
•
Internal/Remote Syslog
•
Scripting tool for macro configurations & maintenance
•
Scheduler for automated execution of pre-specified
commands (time/day/cycle)
• Remote auto-configuration - DHCP server/client/relay
•
IPv6 management
• DPOE 1.0 DEMARC auto configuration
*
Standard Operation, Administration & Maintenance
•
End-to-end Service OAM IEEE802.1ag
- Connectivity Fault Management per service MEP/MIP
- In-service EVC loopbacks, Linktrace & continuity check
•
End-to-end Performance Measurement ITU-T Y.1731 & IP SLA
- MEF SOAM PM (MEF 35)
- Per service Jitter, Latency & Loss - nano second precision
- RFC2544 throughput measurements for service baseline
•
EFM Link OAM - IEEE802.3ah
- Discovery, port-loopback, remote failure indication
•
Optical signal level monitoring (SFP SFF-8472)
•
Remote failure notification/reflection
•
ITU-T Y.1563 service availability
•
ITU-T Y.1564 Service Activation
*
•
Dying Gasp under EFM Link OAM per IEEE802.3ah
•
MEF 10.2.1 service resiliency
•
TWAMP reflector ( RFC5357)
• JDSU Loopback Protocol
*
*
Future software release
Technical Specifications
Standard compliance
Operating Temperature
Storage Temperature
Humidity
Diagnostic LEDs
Rack Mounting
Maintainability
Performance
Physical dimensions
WxDxH (mm/inch)
Weight (kg. /lbs.)
MTBF HRS @25C /77F
Power Specifications
(AC/DC)Hot swappable dual
redundant Power Supplies
FCC Part 15 (Class A); EMC Directive: Emission (Class A) and Immunity; LVD Directive: Electrical Safety;
CE ; TUV-R mark (Canada, USA); GOST; RoHS Directive, REACH SVHC, WEEE Directive;
ETSI compatible depth; Designed to comply with NEBS Level 3; C-Tick.
0 to 50
o
C (32 to 122
o
F)
-40 to +70
o
C (-40 to 158
o
F)
10% to 85% non-condensing
Power Supply, Management, Temperature, Fan, Link, and Activity
19 “ or 23” racks , compact 2 RU height
Front facing system configuration: eliminates the need to dismount the system for maintenance
or installation of new hardware following initial installation
Back-to-back installation in Telco racks: Doubling the ‘port-per-rack’ density.
Non-blocking 200G (full-duplex) architecture. Full-wire packet forwarding on all ports (297 Mpps)
447.6x300x88.1 mm 17.62x11.81x3.46 inch
5.450 kg/11.9 lbs (fully loaded with 2PS 7.050 Kg/15.4 lbs)
201,721
AC Input Voltage
DC Input Voltage Options
Power consumption(W)
Line frequencies 50-60Hz
Min.
Max
100-240 VAC
-48VDC (-36VDC to -60VDC)
100W
135W
Ordering Information
P/N
OS9244-1210G
Description
OptiSwitch® 9244-1210G 1
st
mile Carrier Ethernet aggregation platform with
32 x 100FX (SGMII)/1000FX/2000FX SFP and 12 x 1000FX/10000FX SFP+ ports.
Optional multi-service slot
AC/DC power supplies to be ordered separately.
Hot-swappable power supplies for OS9000 series
EM9015-PS/AC
AC power supply for the OptiSwitch® 9244 Series (100 - 240V AC)
EM9015-PS/DC
DC power supply for the OptiSwitch® 9244 Series (24 - 48V DC)
Accessories
MS9000-Blank
Blank panel for multi-service slot
EM9005-Blank
Blank panel for Power Supply
EM9005-BR-2-C
23” mounting bracket
EM9005-FAN-T
Spare part - Fan Tray for OS9124-410G and OS9244-1210G models
MS9000-FG-A
Fiber guard tray for OS9244-1210G model
Master-OS™ - MPLS Software Upgrade Package for OS9244-1210G model
* For ordering codes of SFP and SGMII pluggable optics, please visit MRV’s web site
* For ordering codes of CWDM/DWDM fiber optimization modules, please contact info@mrv.com
CES line cards
EM9-CES-4T1c
4-port T1 Circuit Emulation Service module with high-precision clock
EM9-CES-4E1c
4-port E1 Circuit Emulation Service module with high-precision clock
EM9-CES-OC3
1-port OC-3/STM -1 - 1:1 protected - Circuit Emulation Service Aggregation module
EM9-SYNC-MBH*
SyncE and IEEE1588v2 (Master/Slave/BC) Timing and Synchronization supporting module
All statements, technical information and recommendations related to the products herein are based upon information believed to be reliable or accurate. However, the accuracy
or completeness thereof is not guaranteed, and no responsibility is assumed for any inaccuracies. Please contact MRV Communications for more information. MRV Communications
and the MRV Communications logo are trademarks of MRV Communications, Inc. Other trademarks are the property of their respective holders.
MRV-OS-9244
Rev.01 10 -13
Copyright ©2013 MRV Communications, Inc. All Rights Reserved.
京公网安备 11010802033920号
EEWORLD
