AH1611DS

Description
Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT; 1CT:1CT, ROHS COMPLIANT
CategoryPower management    transformer
File Size2MB，6 Pages
ManufacturerALLIED [Allied Electronics]
Environmental Compliance
Download Datasheet Parametric View All

AH1611DS Overview

Datacom Transformer, 10/100 BASE-T Application(s), 1CT:1CT; 1CT:1CT, ROHS COMPLIANT

AH1611DS Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerALLIED [Allied Electronics]
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
application10/100 BASE-T
high6.75 mm
Insulation voltage1500 V
length20.5 mm
Installation featuresTHROUGH HOLE MOUNTED
Number of functions1
Maximum operating temperature70 °C
Minimum operating temperature
physical sizeL20.5XB10.0XH6.75 (mm)
Primary inductance350 µH
surface mountNO
Transformer typeDATACOM TRANSFORMER
Turns ratio (Np:Ns)1CT:1CT; 1CT:1CT
width10 mm

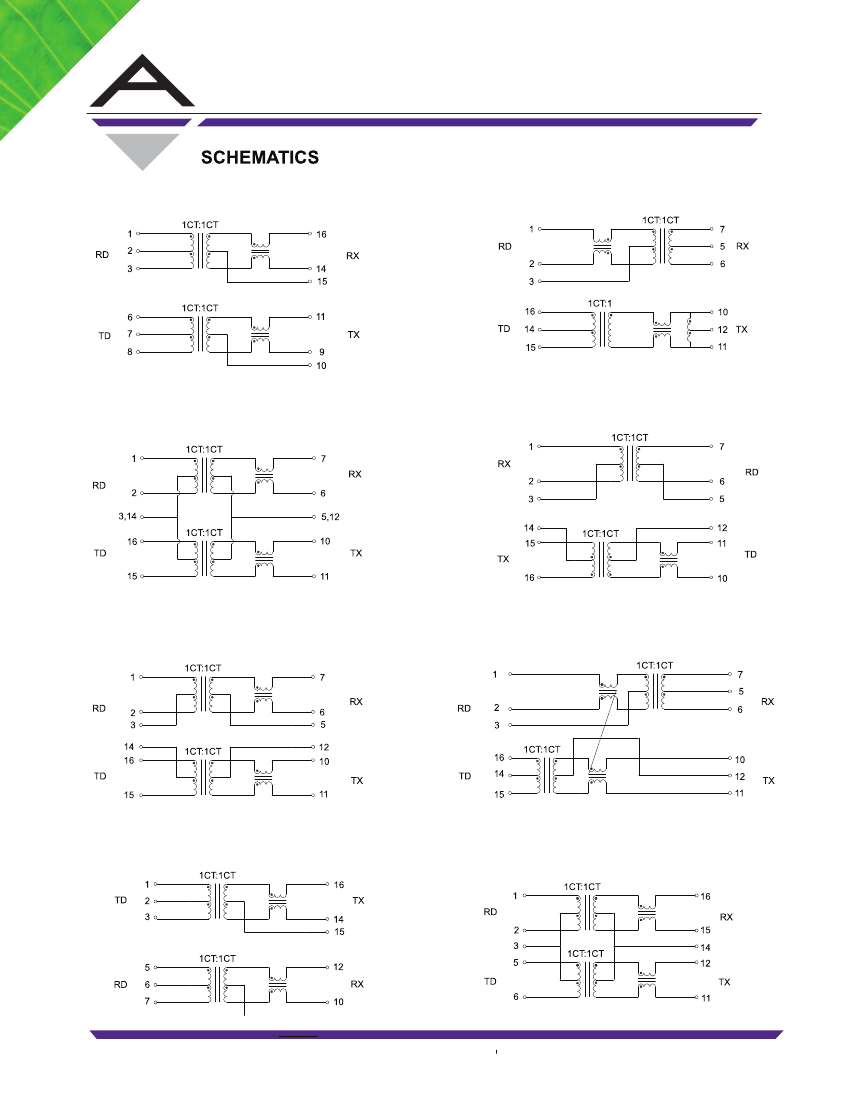

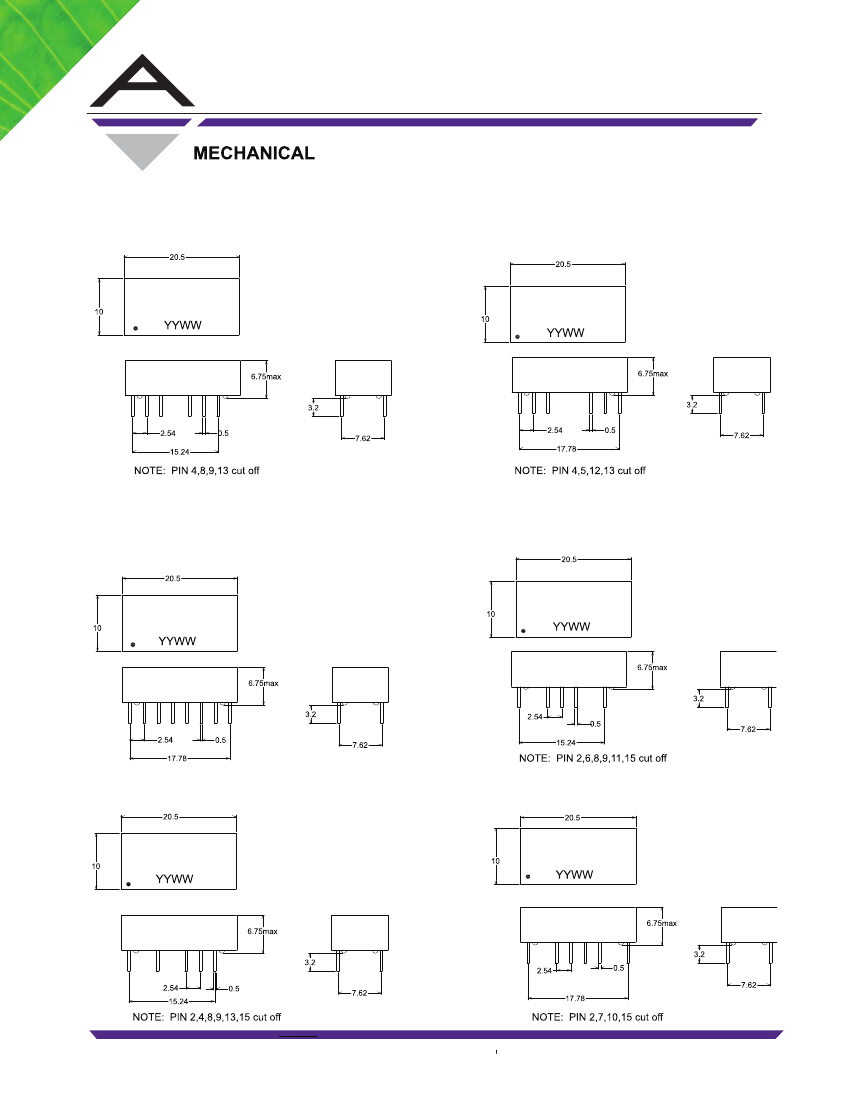

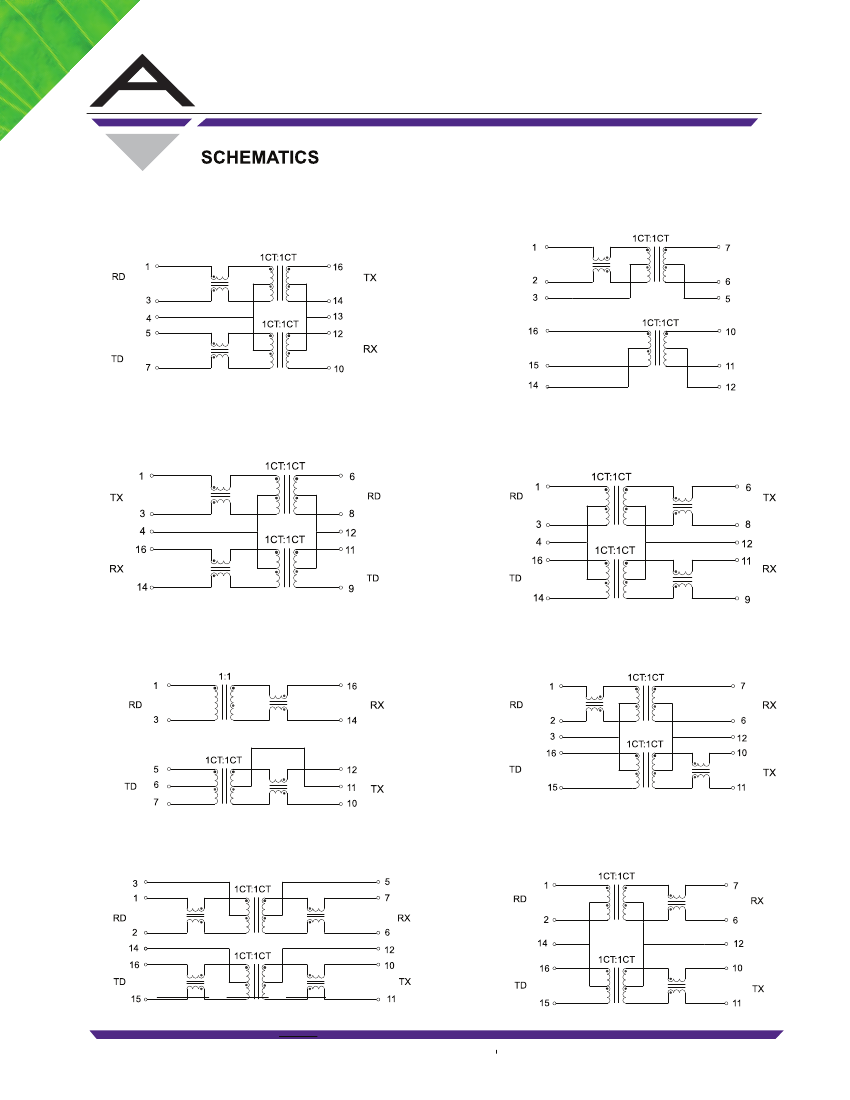

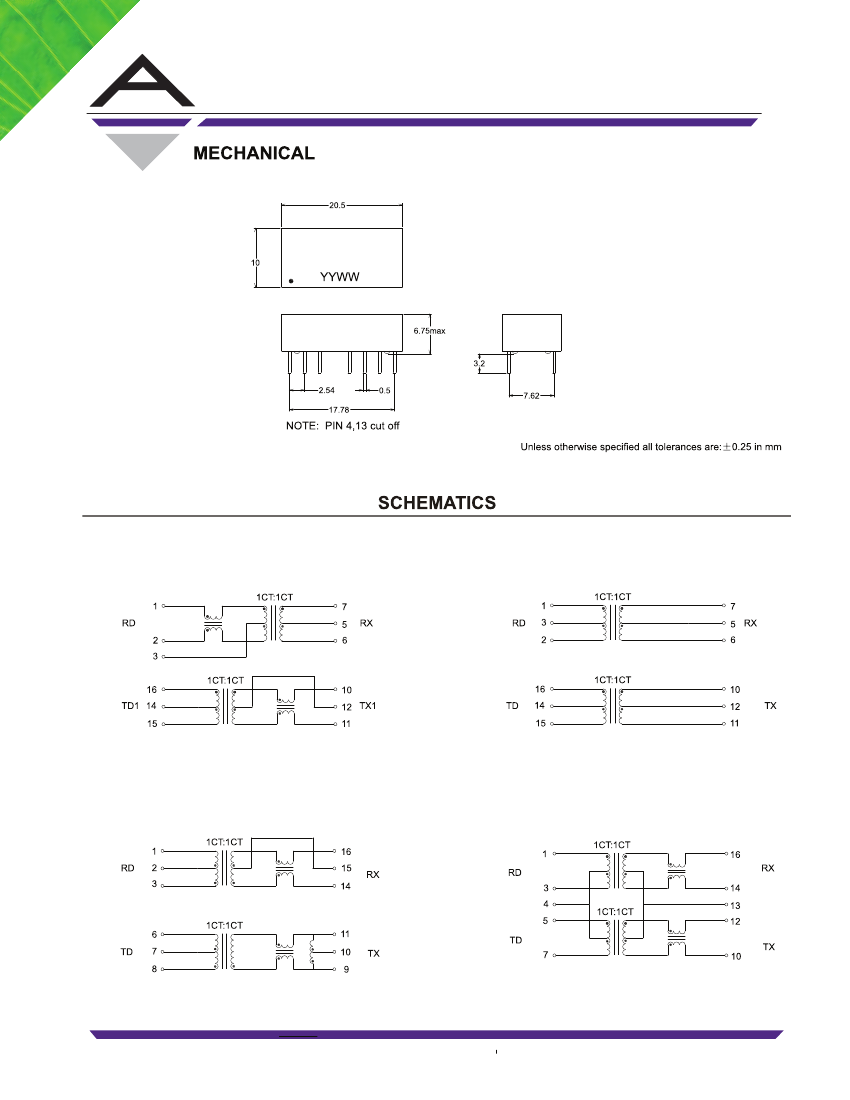

Preview

Download Datasheet
RoHS

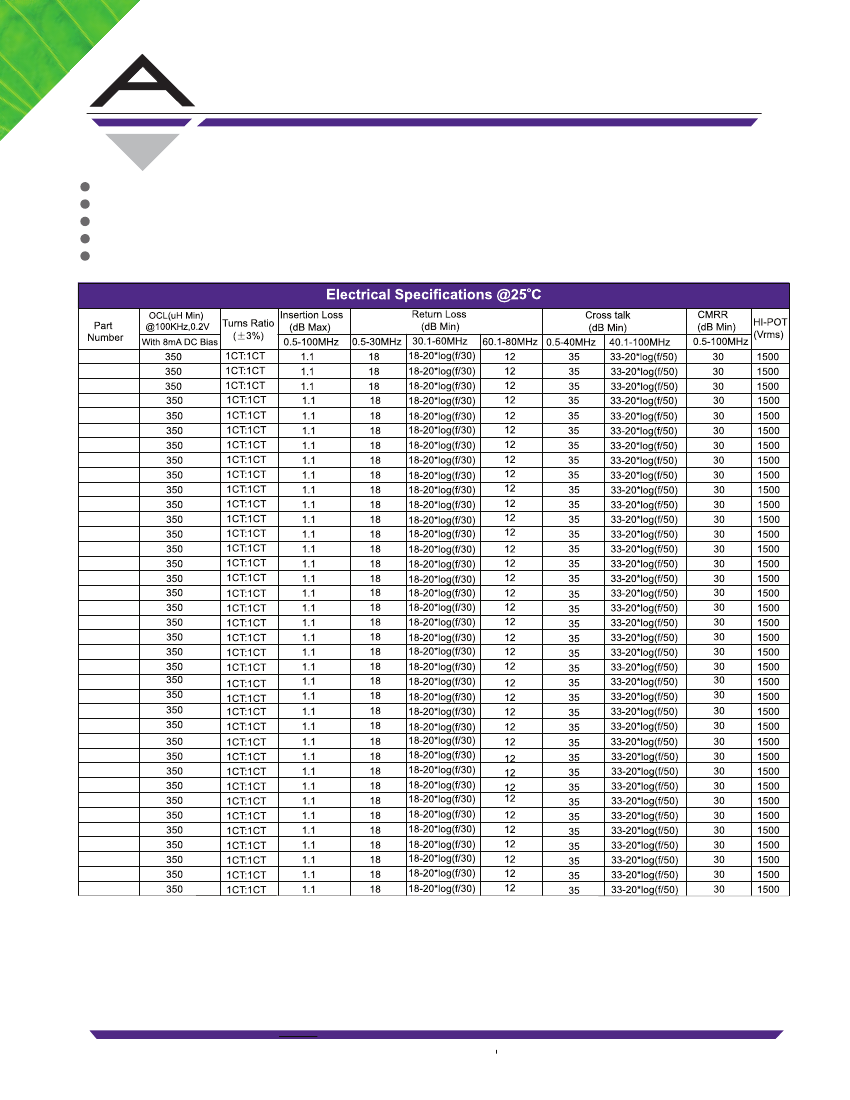

10/100 BASE-T SINGLE PORT THROUGH HOLE MAGNETICS
Meets IEEE 802.3af & ANSI X 3.263
Thru hole construction
Many parts are PoE enabled
Standard operating temp: 0ºC to +70ºC (see footnote)
Industrial operating temp: -40ºC to +85ºC (see footnote)
AH1601D__
AH1602D__
AH1603D__
AH1604D__
AH1605D__
AH1606D__
AH1607D__
AH1608D__
AH1609D__
AH1610D__
AH1611D__
AH1612D__
AH1613D__
AH1614D__
AH1615D__
AH1616D__
AH1618D__
AH1619D__
AH1620D__
AH1621D__
AH1622D__
AH1623D__
AH1625D__
AH1626D__
AH1628D__
AH1629D__
AH1633D__
AH1634D__
AH1635D__
AH1636D__
AH1637D__
AH1638D__
AH1639D__
AH1640D__
AH1641D__
AH1642D__
AH1644D__
*Complete part number by inserting “S” for Standard Temp or “I” for Industrial Temp.
All specifications subject to change without notice.
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
REVISED 3/11/09
15
www.alliedcomponents.com
