RF AMPLIFIER
MODEL
TM9342
Features
!
Wide Bandwidth: 10 to 2400 MHz
!
Operating Temp. -55 ºC
to
+85 ºC
!
Environmental Screening Available
Available as:
TM9342, 4 Pin TO-8LP
TN9342, 4 Pin Surface Mount (SM3)
BX9342, Connectorized Housing (H1)
Preliminary
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ...... +38 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +33 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +23 dBm (Typ.)
MIN/MAX
Ta = -55
ºC
to +85
ºC
10 - 2400 MHz
14 Min.
+0.9 Max.
+11 Min.
+12.5 Min.
-23 Max.
2.0:1 Max.
2.0:1 Max.
6.5 Max.
+15
65 Max.
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Gain Flatness (dB)
Power @ 1 dB
10-1500 MHz
Comp. (dBm)
1500-2400 MHz
Reverse
Isolation (dB)
VSWR
In
Out
Vdc
mA
TYPICAL
Ta= 25
ºC
5 - 2450 MHz
16
+0.25
>+12
>+13.5
-26
<1.5:1
<1.5:1
5.0
+15
58
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +10 dBm
Short Term RF Input Power ... 100 Milliwatts (1 Minute Max.)
Maximum Peak Power ................... 0.5 Watt (3
µsec
Max.)
Noise Figure (dB)
Power
Note: Care should always be taken to effectively ground the case of each unit.

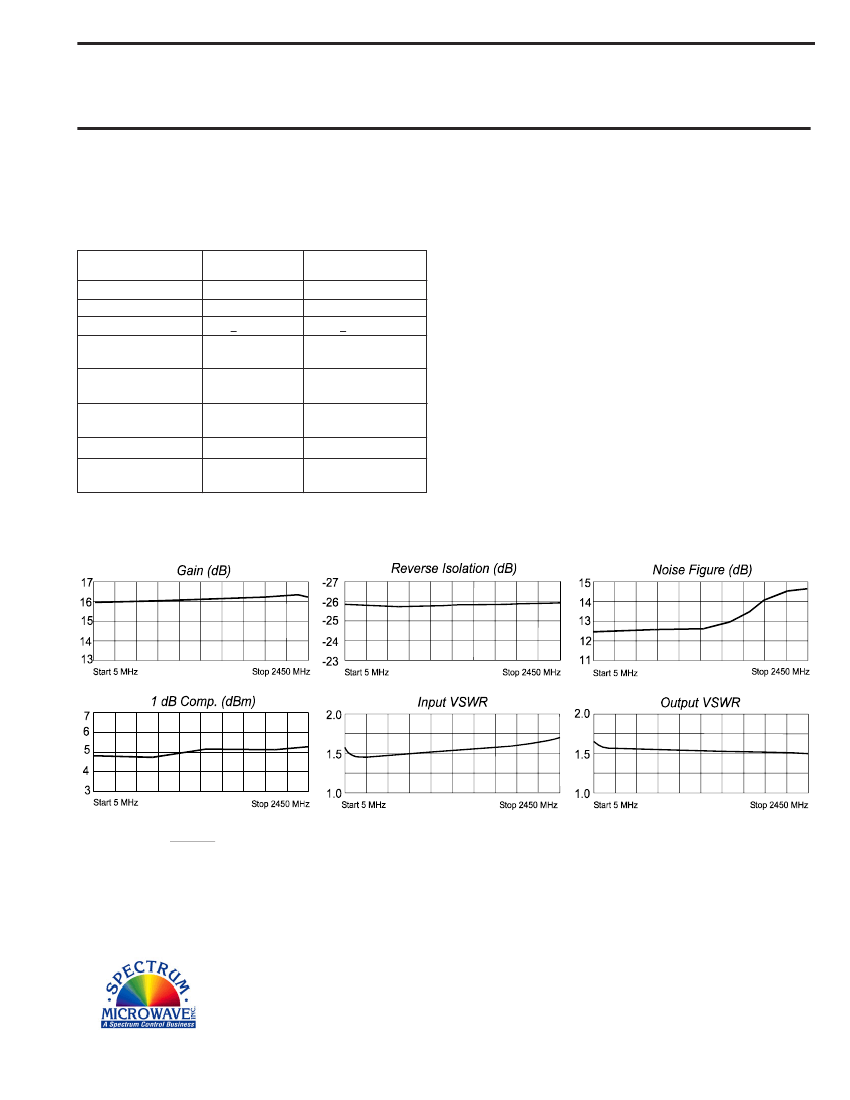

Typical Performance Data
Legend
+25 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
Rev.
6/2/09
www.SpectrumMicrowave.com
