BX9738 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX9738

BX9738: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size42KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BX9738 Overview

RF AMPLIFIER MODEL

BX9738 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	9 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9738

Features

High Output Power : +25 dBm Typical

High Third Order Intercept: +39 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9738, 4 Pin TO-8 (T4)

TN9738, 4 Pin Surface Mount (SM3)

FP9738, 4 Pin Flatpack (FP4)

BX9738, Connectorized Housing (H1)

PN9738,

Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point .............. +52 (Typ.)

Second Order Two Tone Intercept Point ............... +46 (Typ.)

Third Order Two Tone Intercept Point ................... +39 (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

200 - 2000 MHz

+25.5

-19

<1.5:1

<4.0

+15

140

MIN/MAX

Ta = -55 ºC to +85 ºC

200 - 2000 MHz

9 Min.

+24.0 Min.

-17 Max.

2.0:1 Max.

5.2 Max.

+15

160 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power ... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

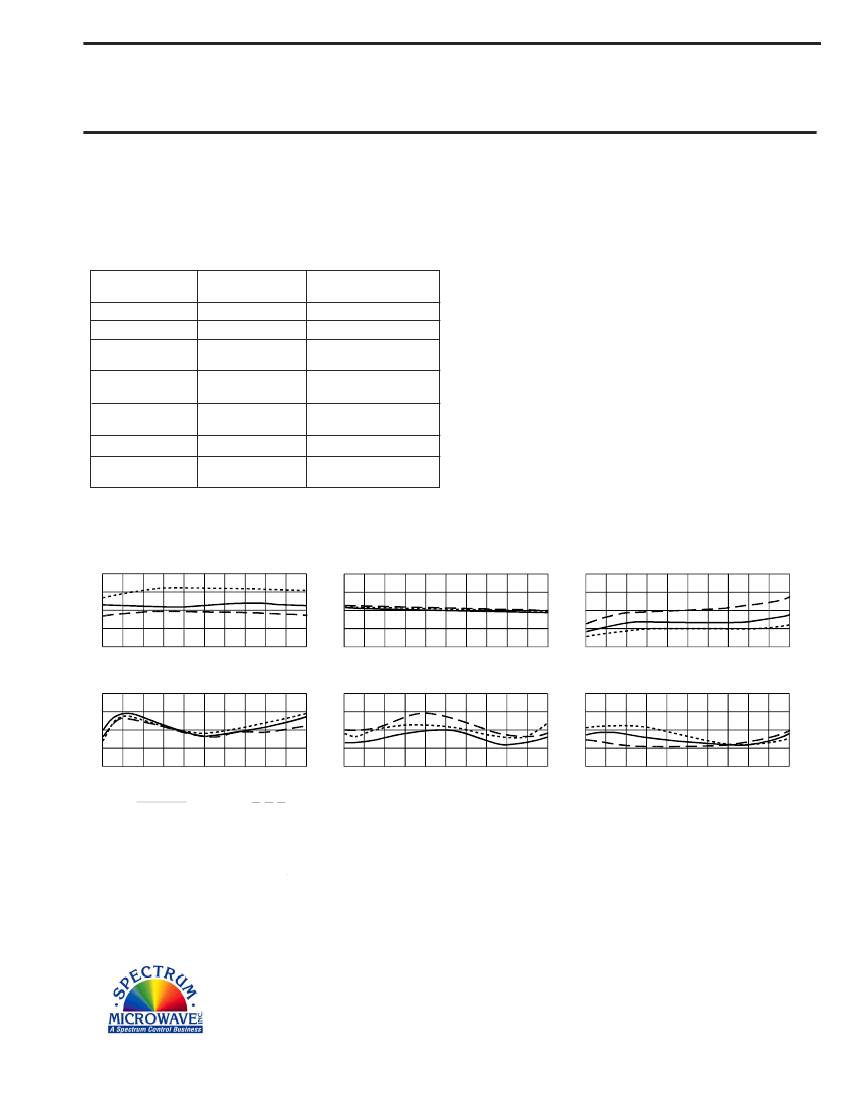

Typical Performance Data

Start 200 MHz

Stop 2000 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 200 MHz

Stop 2000 MHz

Start 200 MHz

Stop 2000 MHz

+28

+27

+26

+25

+24

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 200 MHz

Stop 2000 MHz

Start 200 MHz

Stop 2000 MHz

Start 200 MHz

Stop 2000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

12/19/00

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

BX9738 Related Products

	BX9738	FP9738	PN9738	TM9738	TN9738
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Gain	9 dB	9 dB	9 dB	9 dB	9 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2	2
