S23AF14B: DescriptionSilicon Controlled Rectifier, 380A I(T)RMS, 240000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element, TO-200AB; CategoryAnalog mixed-signal IC Trigger device; File Size253KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

S23AF14B Overview

Silicon Controlled Rectifier, 380A I(T)RMS, 240000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element, TO-200AB

S23AF14B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown
Nominal circuit commutation break time	40 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	500 mA
JEDEC-95 code	TO-200AB
JESD-30 code	O-CEDB-N2
Maximum leakage current	30 mA
Humidity sensitivity level	1
On-state non-repetitive peak current	4700 A
Number of components	1
Number of terminals	2
Maximum on-state current	240000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum rms on-state current	380 A
Off-state repetitive peak voltage	1400 V
Repeated peak reverse voltage	1400 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

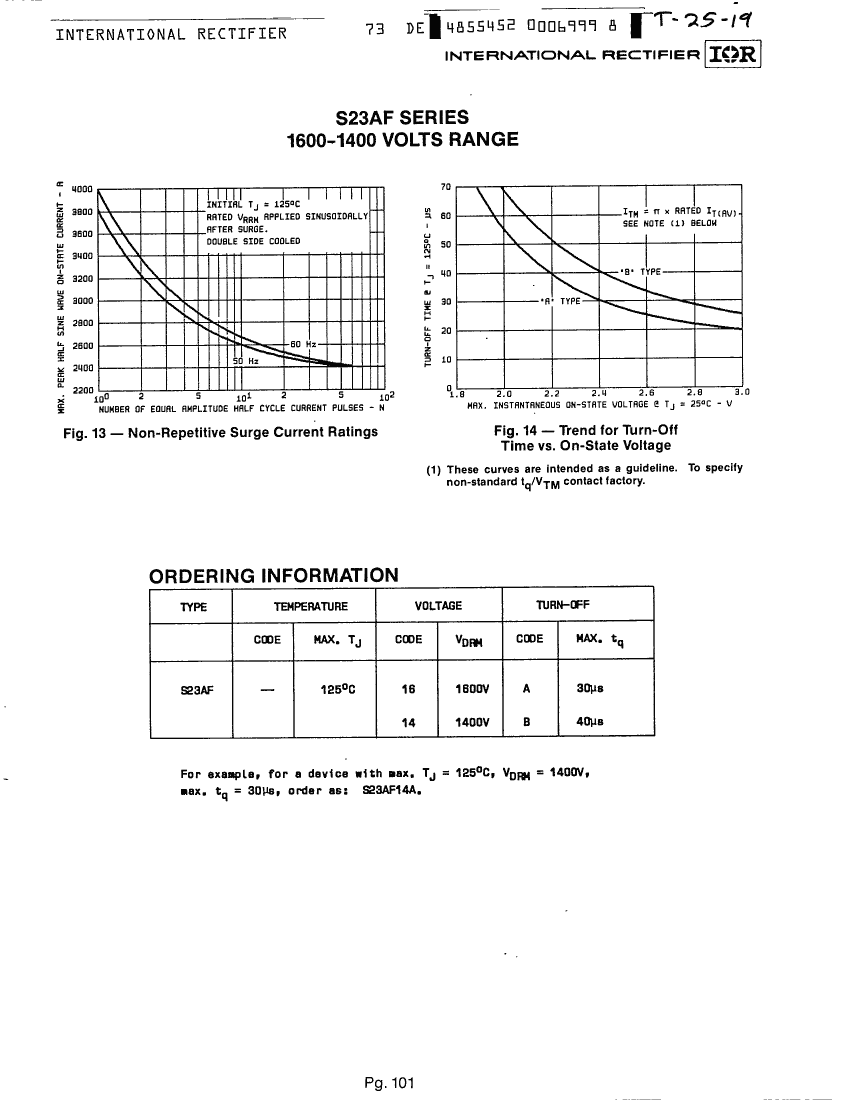

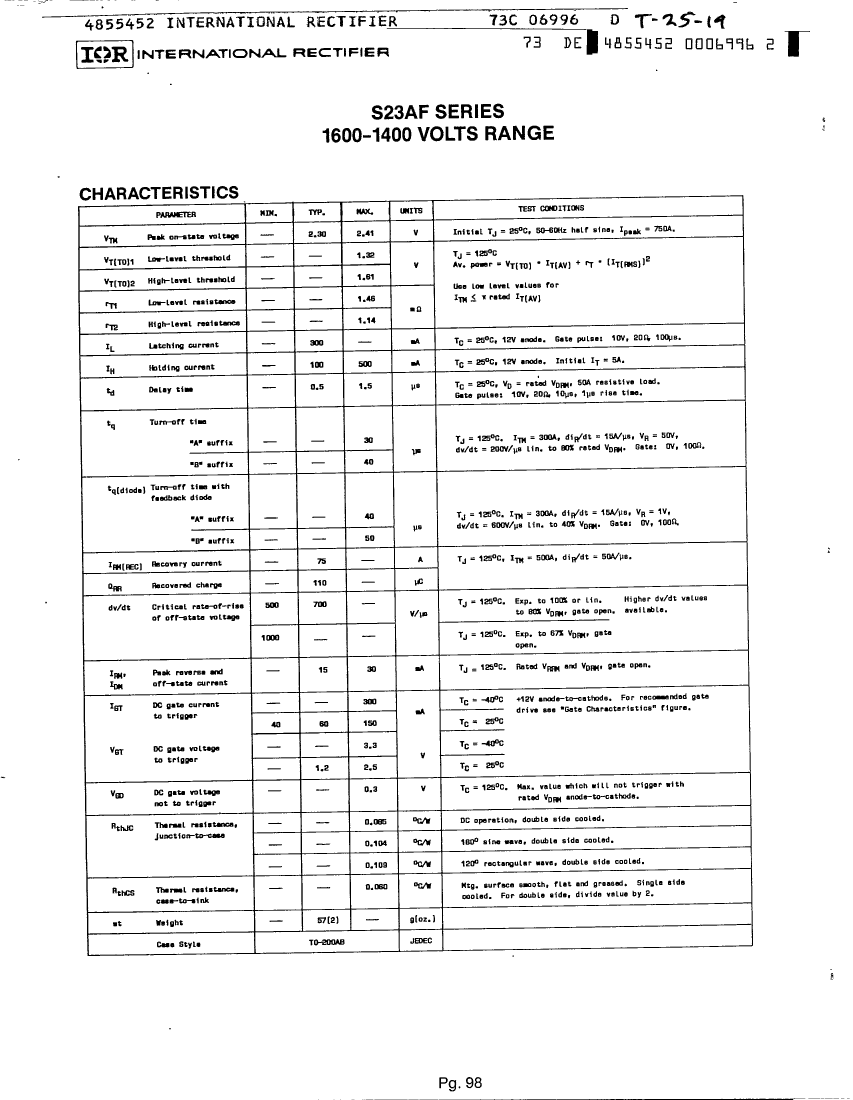

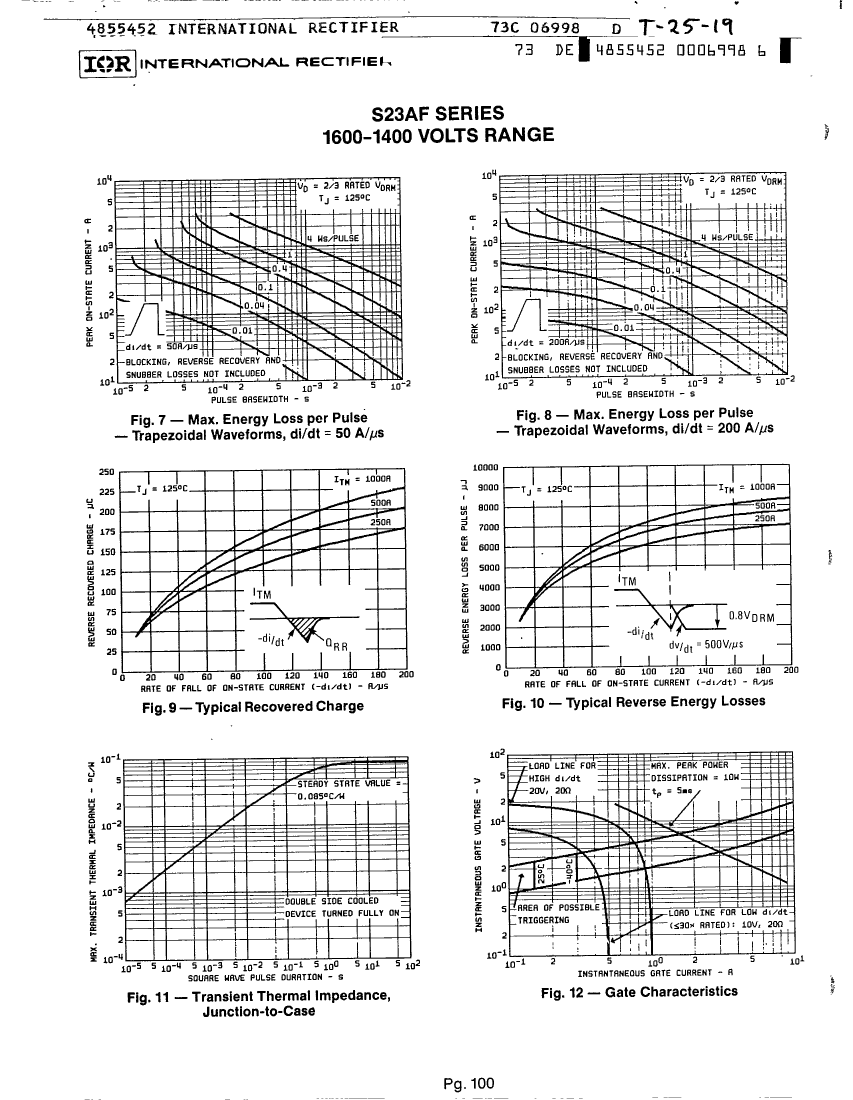

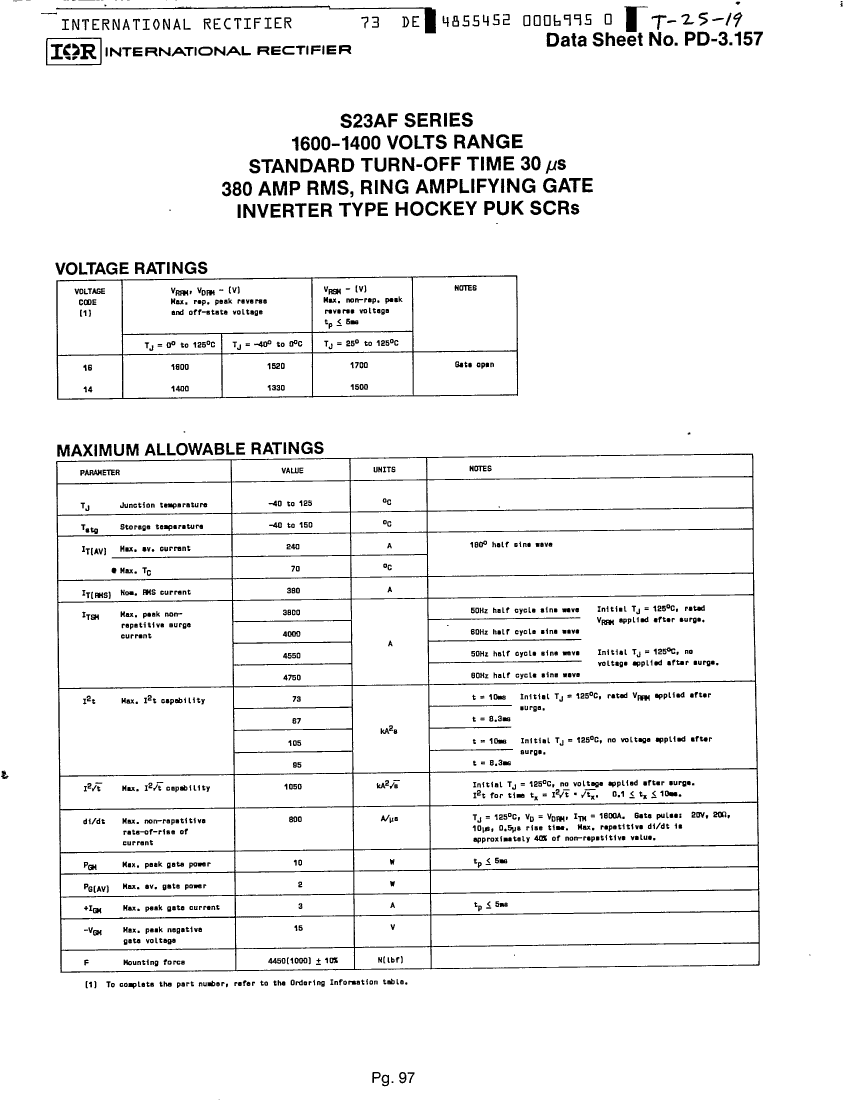

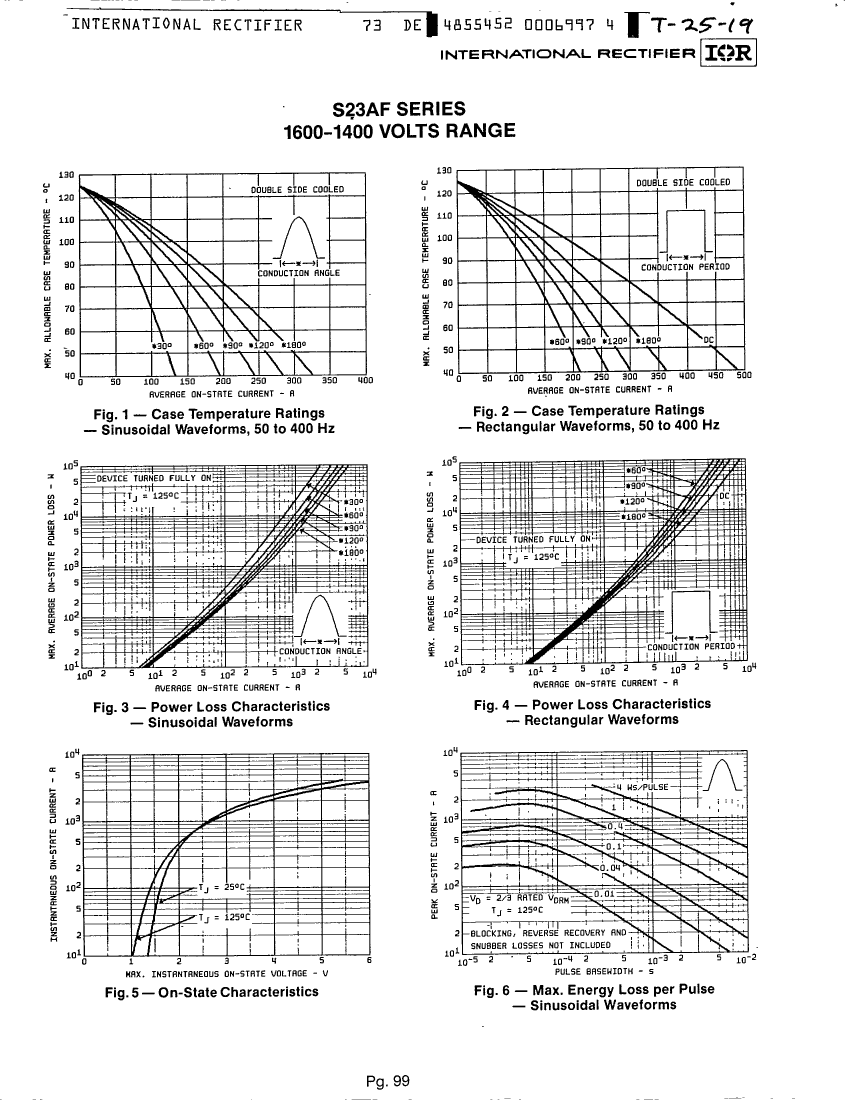

Preview

Download Datasheet

View All

S23AF14B Related Products

	S23AF14B	S23AF16A	S23AF16B	S23AF14A
Description	Silicon Controlled Rectifier, 380A I(T)RMS, 240000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element, TO-200AB	Silicon Controlled Rectifier, 380A I(T)RMS, 240000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-200AB	Silicon Controlled Rectifier, 380A I(T)RMS, 240000mA I(T), 1600V V(DRM), 1600V V(RRM), 1 Element, TO-200AB	Silicon Controlled Rectifier, 380A I(T)RMS, 240000mA I(T), 1400V V(DRM), 1400V V(RRM), 1 Element, TO-200AB
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	40 µs	30 µs	40 µs	30 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V	2.5 V
Maximum holding current	500 mA	500 mA	500 mA	500 mA
JEDEC-95 code	TO-200AB	TO-200AB	TO-200AB	TO-200AB
JESD-30 code	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2	O-CEDB-N2
Maximum leakage current	30 mA	30 mA	30 mA	30 mA
Humidity sensitivity level	1	1	1	1
On-state non-repetitive peak current	4700 A	4700 A	4700 A	4700 A
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum on-state current	240000 A	240000 A	240000 A	240000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Peak Reflow Temperature (Celsius)	225	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	380 A	380 A	380 A	380 A
Off-state repetitive peak voltage	1400 V	1600 V	1600 V	1400 V
Repeated peak reverse voltage	1400 V	1600 V	1600 V	1400 V
surface mount	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	END	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR
