TN9705 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TN9705

TN9705: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size61KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

TN9705 Overview

RF AMPLIFIER MODEL

TN9705 Parametric

Parameter Name	Attribute value
package instruction	MODULE,4LEAD,.45SQ
Reach Compliance Code	compli
Is Samacsys	N
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	15 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	400 MHz
Minimum operating frequency	225 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.45SQ
power supply	15 V
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum slew rate	100 mA
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

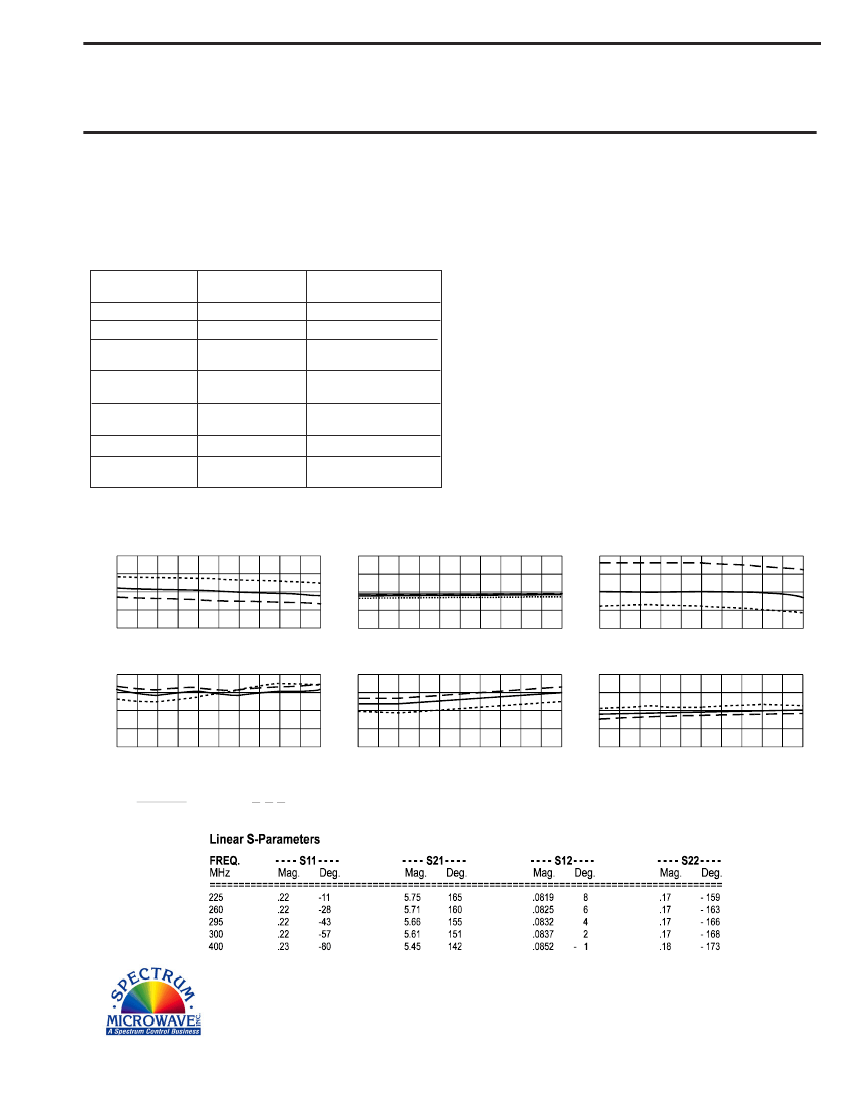

RF AMPLIFIER

MODEL

TM9705

Features

GaAs FET; Low Noise Figure: 1.5 dB Typical

High Output Power: 23 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM9705, 4 Pin TO-8 (T4)

TN9705, 4 Pin Surface Mount (SM3)

WP9705, 4 Pin Gullwing (SG -15)

BX9705, Connectorized Housing (H1)

PN9705,

Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +49 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +44 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +34 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

225 - 400 MHz

15.0

+23.0

-21.0

1.7:1

1.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

225 - 400 MHz

14 Min./ 16 Max.

+22.0 Min.

-15

Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature .................................................. + 95 ºC

DC Voltage ......................................................... + 17 Volts

Continuous RF Input Power ................................. + 15 dBm

Short Term RF Input Power ... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.2 Watt (3

µsec

Max.)

2.0:1 Max.

2.0

Max.

+15

100

Max.

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 225 MHz

Stop 400 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

2.0

1.5

1.0

Noise Figure (dB)

Start 225 MHz

Stop 400 MHz

Start 225 MHz

Stop 400 MHz

+24

+23

+22

+21

+20

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 225 MHz

Stop 400 MHz

Start 225 MHz

Stop 400 MHz

Start 225 MHz

Stop 400 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

02/02/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

TN9705 Related Products

	TN9705	BX9705	TM9705	WP9705	PN9705
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
package instruction	MODULE,4LEAD,.45SQ	-	T4, TO-8, 4 PIN	SG-15, 4 PIN	-
Reach Compliance Code	compli	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT	-
Gain	14 dB	14 dB	14 dB	14 dB	-
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm	-
Number of functions	1	-	1	1	-
Number of terminals	4	-	4	4	-
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz	-
Minimum operating frequency	225 MHz	225 MHz	225 MHz	225 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-
Package body material	METAL	-	METAL	METAL	-
Encapsulate equivalent code	MODULE,4LEAD,.45SQ	-	CAN4,.3	GWDIP4(UNSPEC)	-
power supply	15 V	-	15 V	15 V	-
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	-
Maximum slew rate	100 mA	-	100 mA	100 mA	-
Maximum voltage standing wave ratio	2	2	2	2	-
