RF AMPLIFIER
MODEL
TM9308
Features
High
Output Power: +26 dBm Typical
Ultra
Broad Bandwidth 20-3000 MHz
Cross
to the Cougar AP3008, our Model TM9308
Cross to the Cougar ACP3008, our Model BXP9308
Screening to the Tables of MIL-STD-883 Available
Available as:
TM9308, 4 Pin 0.500” TO-8 (T4)
TN9308, 4 Pin 0.450” Sq. Surface Mount (SM3)
BX9308, SMA Connectorized Housing (H1)
BXP9308, SMA Connectorized Housing (HPak)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point........+64 dBm (Typ.)
Second Order Two Tone Intercept Point.........+58 dBm (Typ.)
Third Order Two Tone Intercept Point.............+40 dBm (Typ.)
(Typical at 25ºC under a +15 volt supply)
Specifications
CHARACTERISTIC
Frequency
Gain
Gain Flatness
Noise Figure
(200 - 3000 MHz)
VSWR
In
Out
Power @ 1 dB Comp.
(20-2500 MHz)
(2500-3000 MHz)
Reverse Isolation
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
10 - 3200 MHz
12.5 dB
+/- 0.5 dB
3.0 dB
1.7:1
1.7:1
+26.0 dBm
+25.0 dBm
-21 dB
+15
185
MIN/MAX
Ta = -55 ºC to +85 ºC
20 - 3000 MHz
10.5 dB Min.
+/- 0.9 dB Max.
4.3 dB
2.0:1 Max.
2.0:1 Max.
+24.5 dBm Min.
+23.0 dBm Min.
-
+15
190 Max.
Maximum (No Damage) Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +20 dBm
Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
μsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Revision 5/14/2012
Typical Performance Data
14
13
12
11
10
Start 10 MHz
Stop 3200 MHz
Gain (dB)
0
-10
-20
-30
-40
Reverse Isolation (dB)
Noise Figure (dB)
10
8
6
4
2
Start 10 MHz
Stop 3200 MHz
Start 10 MHz
Stop 3200 MHz
+28
+27
+26
+25
+24
Start 10 MHz
1 dB Comp. (dBm)
2.0
1.5
Input VSWR
2.0
Output VSWR
1.5
Stop 3200 MHz
1.0
Start 10 MHz
Stop 3200 MHz
1.0
Start 10 MHz
Stop 3200 MHz
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
Spectrum Microwave · 1900 West College Ave. · State College, PA. 16801· PH (888) 553-7531 · Fax (888) 553-7532
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
4
3
DWG NO.
088-00304
SH
REV
1
OF
1
P1
REVISIONS
REV.
P1
DESCRIPTION
1
CHNG/DATE
2012/05/14
APPVD/DATE
ECN
11.56
.46
8.38
.33
6.36
.25
VDC
B
14.61
.58
RF IN
SMI
RF OUT
XXXXXX
XXXX
9.53
.38
TYP.
0.76
2X
.03
2X SMA
CONNECTOR
XXX
PRELIMINARY RELEASE
4.57
.18
7.30
.29
B
19.56
.77
THIS ASSEMBLY CONTAINS PARTS SENSITIVE
TO DAMAGE BY ELECTROSTATIC DISCHARGE (ESD).
USE ESD PRECAUTIONARY PROCEDURES WHEN
TOUCHING, REMOVING OR INSERTING
CAUTION
8.38
.33
MAX.
38.61
1.52
3.62
.14
1.78
.07
A
11.05
.44
SEE SEPARATE PARTS LIST IN ELECTRONIC STORAGE
A
GROUND TAB
12.32
.49
.10[2.54]
4 X 2-56 UNC
MOUNTING HOLES
UNLESS OTHERWISE SPECIFIED
3rd ANGLE PROJECTION
SPECTRUM MICROWAVE, INC
2707 Black Lake Place
Philadelphia, PA 19154-1008 (USA)
TITLE
ANSI
* INTERPRET DRAWING IAW ASME Y14.100-2004
* DIMENSIONING AND TOLERANCING IAW ASME Y14.5-1994
* PARENTHETICAL INFORMATION FOR REFERENCE ONLY
* DIMENSIONAL LIMITS APPLY BEFORE PROCESSES
* DIMENSIONS ARE IN INCHES
* TOLERANCES ARE: ANGLES ±1.0°
* SURFACE FINISH
WAR
CHECKED
DRAWN
DATE
2012/05/14
2012/05/14
63
2 PLACE DECIMAL ±.02
3 PLACE DECIMAL ±.005
* REMOVE ALL BURRS AND SHARP EDGES .010 RAD MAX.
* CONCENTRICITY MACHINED DIA: .002 FIM
* MACHINED TOOL MISMATCH: .002 MAX.
H PHAM
MFG
QA
ENGRG

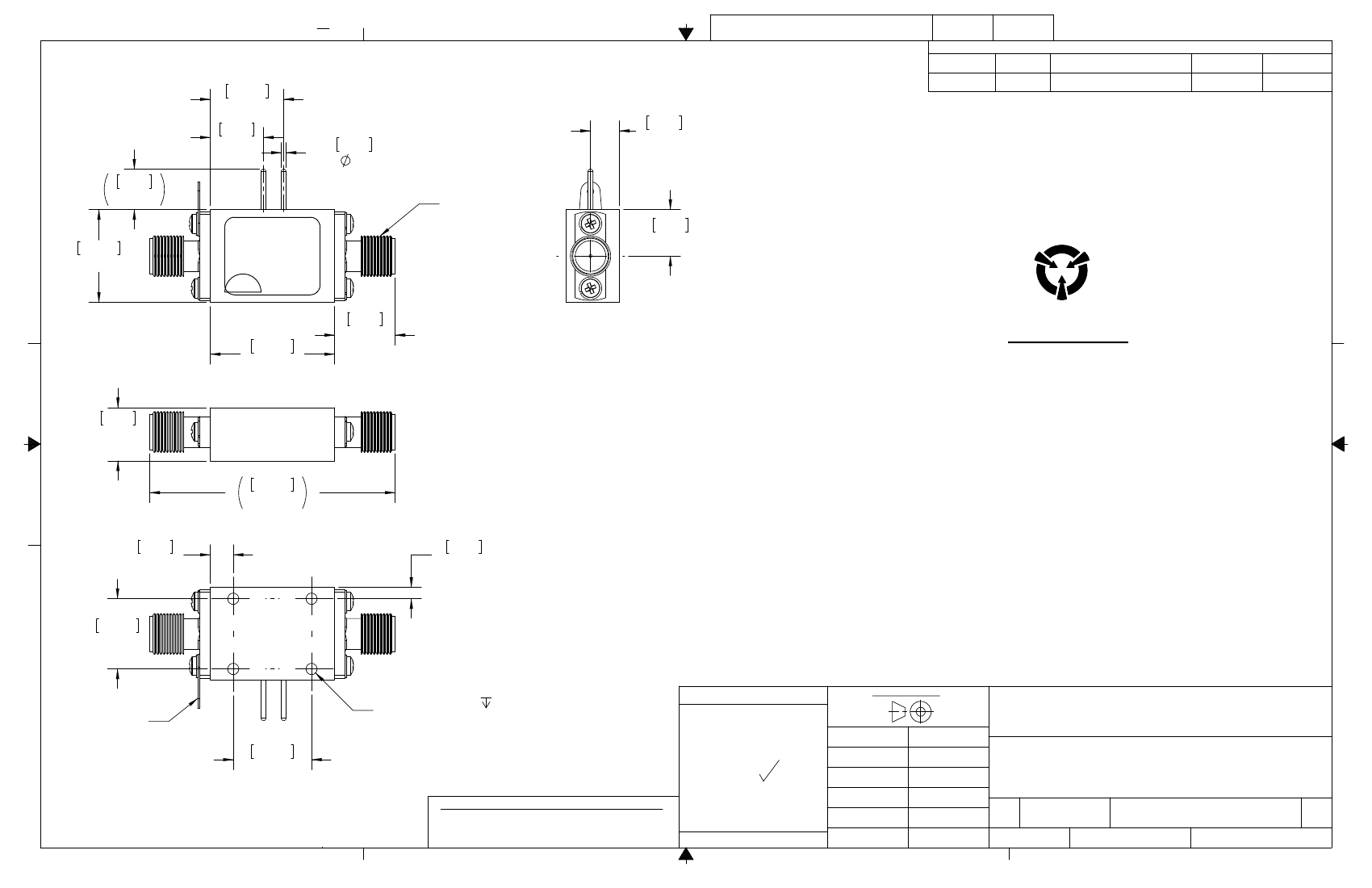

OUTLINE, HPAK
SIZE
SPECTRUM MICROWAVE PROPRIETARY INFORMATION
COMPUTER ASSISTED DRAWING
GENERATED USING SOLIDWORKS 2007
FORM NO. 1054 SIZE B1
THIS DOCUMENT IS THE SOLE PROPERTY OF SPECTRUM MICROWAVE, INC.
THE RELEASE OF DATA CONTAINED IN THIS DOCUMENT AND THE
REPRODUCTION OF THIS DOCUMENT, IN WHOLE OR IN PART, WITHOUT THE
WRITTEN PERMISSION OF SPECTRUM MICROWAVE, INC ARE PROHIBITED.
B 60979
1.5:1
CAGE CODE
DWG NO.
088-00304
SHEET
REV
P1
1
OF
DO NOT SCALE DRAWING
SCALE:
1
4
3
2
1
