VE-24HMSE-K-HV-VD datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> VE-24HMSE-K-HV-VD

VE-24HMSE-K-HV-VD: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.04A (COIL), 9VDC (COIL), 360mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size125KB，6 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

VE-24HMSE-K-HV-VD Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.04A (COIL), 9VDC (COIL), 360mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

VE-24HMSE-K-HV-VD Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknow
ECCN code	EAR99
body width	10.5 mm
body height	20.5 mm
Body length or diameter	20.5 mm
Maximum coil current (DC)	0.01 A
Coil operating voltage (DC)	17.3 V
Coil power	250 mW
Coil release voltage (DC)	1.2 V
Coil resistance	2310 Ω
Maximum coil voltage (DC)	24 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1250VA@250VAC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@150VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	2000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	50000 Cycle(s)
End contact material	Silver Nickel
Input switching control type	Random
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	4
operating hours	10 ms
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
PCB hole count	4
physical size	20.5mm x 10.5mm x 20.5mm
Guideline	CSA; UL; VDE
Relay action	MOMENTARY
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	PLASTIC SEALED
surface mount	NO
Terminal length	0.0034 inch
Termination type	SOLDER
weight	8 g

Preview

Download Datasheet

View All

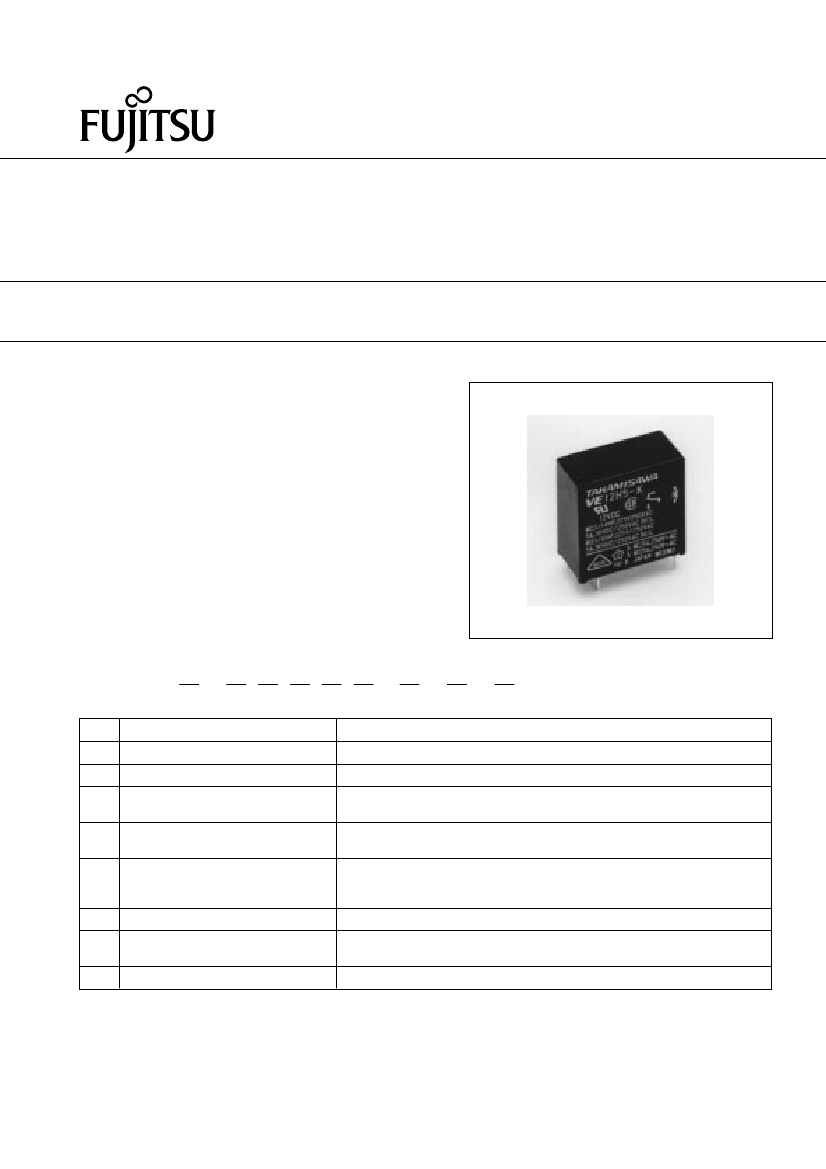

FUJITSU TAKAMISAWA

COMPONENT CATALOG

POWER RELAY

1 POLE—5 A (MEDIUM LOAD CONTROL)

VE SERIES

FEATURES

UL, CSA, VDE recognized

1 form A (SPST-NO) or 1 form C (SPDT) contact

Low cost, miniature relay with big performance in small

package

—Surge strength: 4,000 V or 6,000 V

Slim type—meets high density mounting requirement

Wide operating range

Easy circuit design with completely separated terminal

arrangement (coil and contact terminals)

Plastic sealed type backfilled with nitrogen

ORDERING INFORMATION

[Example]

(a)

(b)

(c)

(d)

(e)

(f)

VE – 12

(a) (*) (b)

(c)

(d)

(e)

E – K – HV – VD

(f )

(g)

(h)

(i)

VE: VE Series

Refer to the COIL DATA CHART

H : Heavy duty type

Nil : 1 form C (SPDT)

M : 1 form A (SPST-NO)

Nil : Standard type

S : High sensitivity type

Nil : Gold overlay silver-nickel (N.C.: 3 A, N.O.: 5 A)

E : Silver-nickel (N.C.: 3 A, N.O.: 5 A)

5 : Silver alloy (N.C.: 5 A, N.O.: 5 A)

K : Plastic sealed type

Nil : Standard type (4,000 V)

HV: High dielectric strength type (6,000 V)

VD: UL, CSA, VDE approved type

Series Name

Nominal Voltage

Contact Rating

Contact Arrangement

Coil Type

Contact Material (Rating)

(g)

(h)

(i)

Enclosure

Surge Strength

Standard

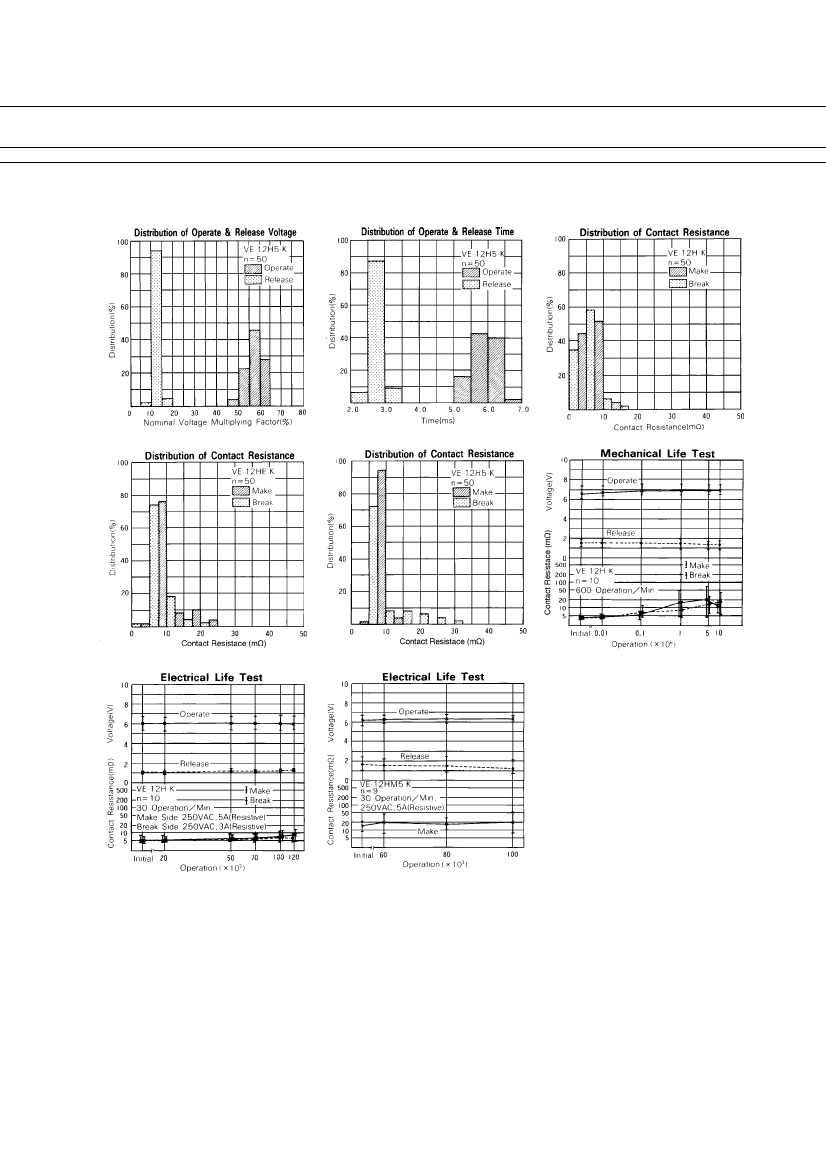

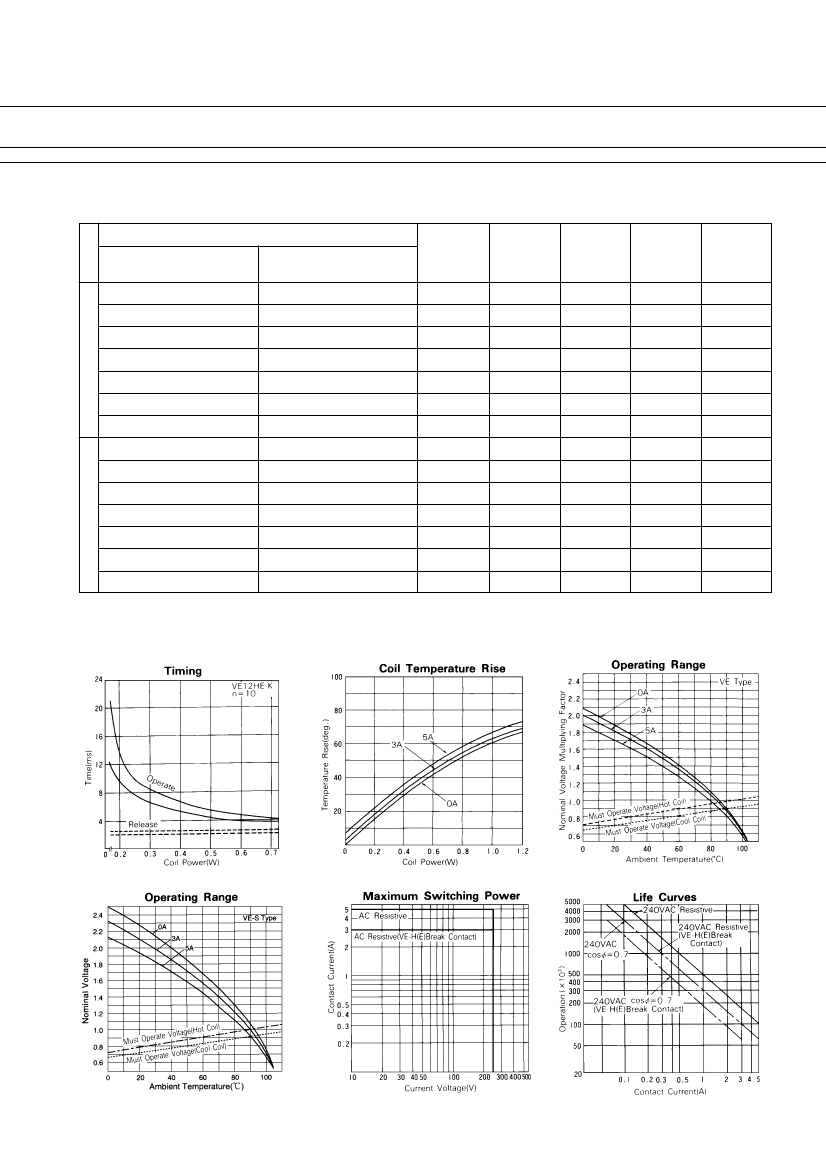

Note: Actual marking omits the hyphen (-) of (*)
