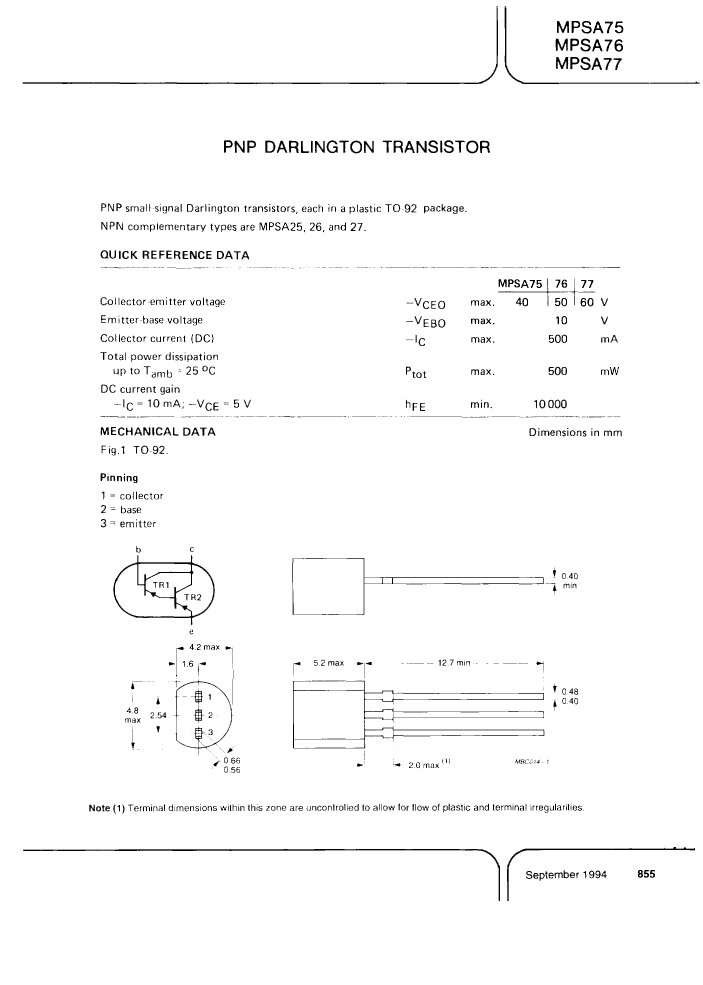

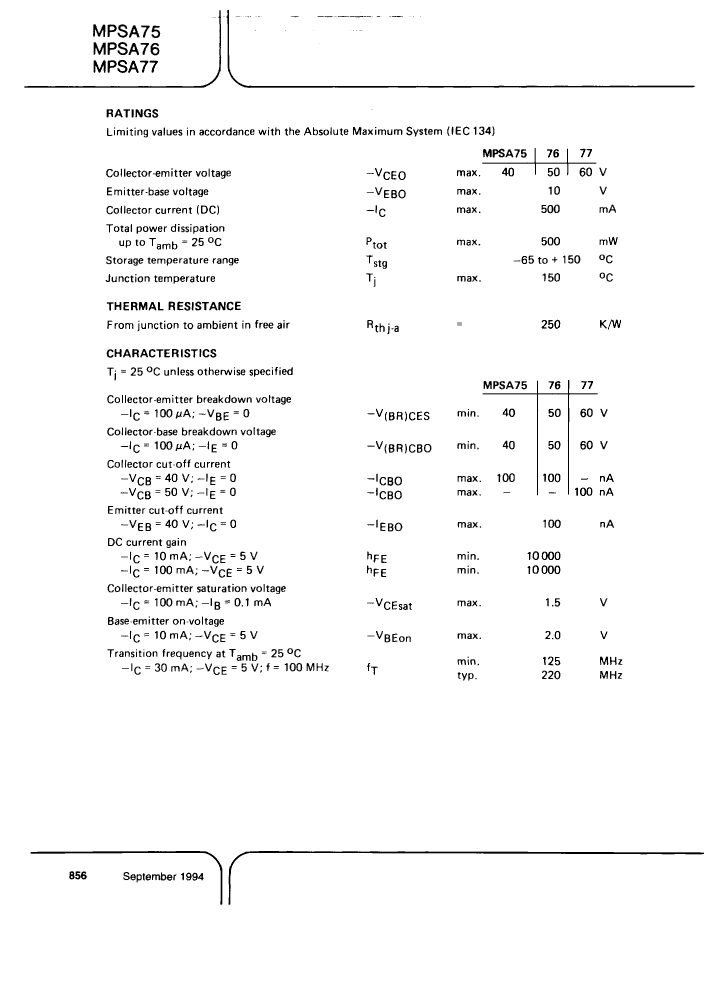

MPSA76-T/R: DescriptionTRANSISTOR 500 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size37KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MPSA76-T/R Overview

TRANSISTOR 500 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal

MPSA76-T/R Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	50 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	10000
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	220 MHz
VCEsat-Max	1.5 V

Preview

Download Datasheet

View All

MPSA76-T/R Related Products

	MPSA76-T/R	MPSA76-AMMO	MPSA75-T/R	MPSA75	MPSA77-T/R	MPSA75-AMMO	MPSA77-AMMO
Description	TRANSISTOR 500 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR,BJT,DARLINGTON,PNP,40V V(BR)CEO,500MA I(C),TO-92	TRANSISTOR 500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 40 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	,	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	10000	10000	10000	10000	10000	10000	10000
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
surface mount	NO	NO	NO	NO	NO	NO	NO
Nominal transition frequency (fT)	220 MHz	220 MHz	220 MHz	125 MHz	220 MHz	220 MHz	220 MHz
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Collector-emitter maximum voltage	50 V	50 V	40 V	-	60 V	40 V	60 V
JEDEC-95 code	TO-92	TO-92	TO-92	-	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	-	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	-	1	1	1
Number of terminals	3	3	3	-	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	-	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	SWITCHING	SWITCHING	-	AMPLIFIER	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON
VCEsat-Max	1.5 V	1.5 V	1.5 V	-	1.5 V	1.5 V	1.5 V
