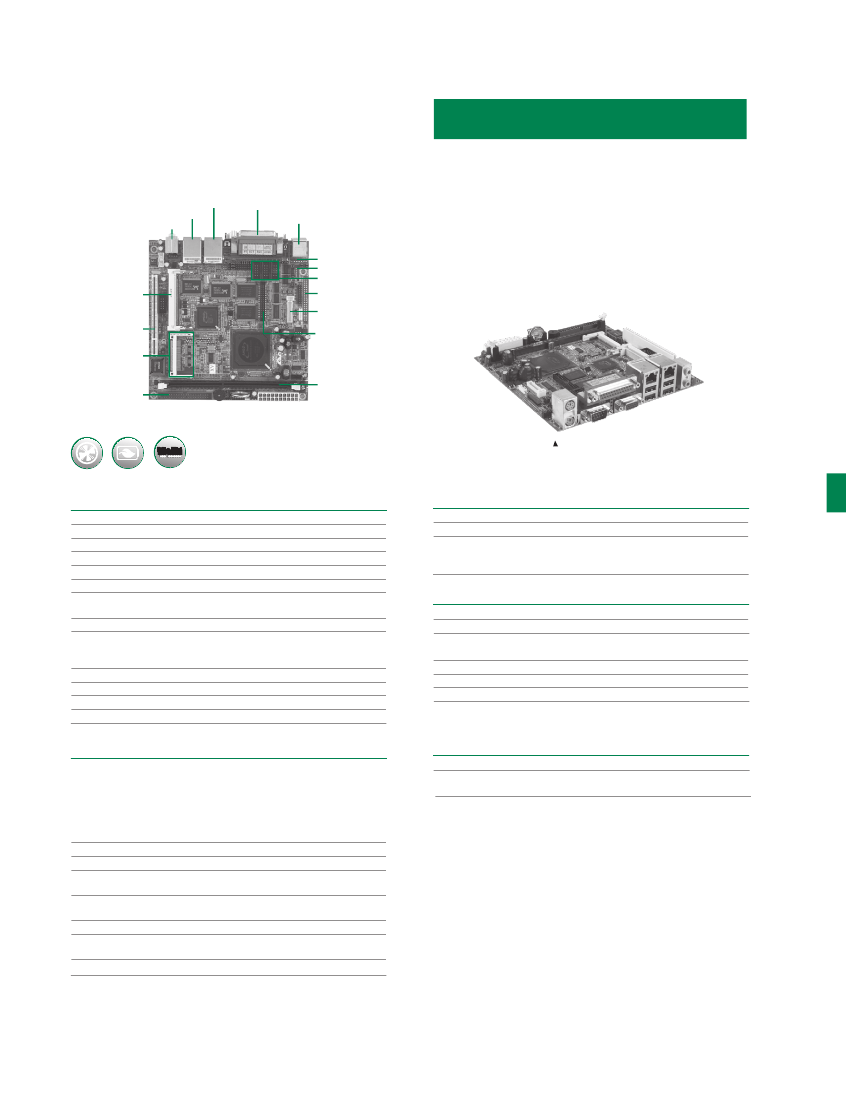

SBC86620

AMD LX Mini ITX SBC with Dual LANs,

4 COM and USB 2.0

Features

●

Low Power Fanless AMD LX800

●

AMD LX + CS5536AD chipset

●

Dual 10/100 Mbps Ethernet supported

●

4 COM and 4 USB 2.0 ports

●

1 PCI slot and MiniPCI socket for expansion

Ethernet+USB 3/4 LPT+COM 1+VGA

Ethernet+USB1/2

PS/2 K/B+M/S

Audio

SBC

Services

and Solutions

Systems

Modules

Embedded

SBCs

>EPIC

Embedded

SBCs

>3.5" Capa

Embedded

SBCs

>Nano-ITX

Embedded

SBCs

>Pico-ITX

PS/2 K/B

PS/2 M/S

COM 2/3/4

MiniPCI

PCI

DDR DIMM

TTL LCD

LVDS LCD

FDD

PATA IDE

PCIe Mini

Side view

Embedded

SBCs

>PC/104

Industrial

Mother-

boards

Fanless

Low Power

PCIe Mini

System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

Battery

Power Requirements

AMD LX800 processor onboard

1 x 184-pin DIMM supports DDR-333/400 max. up to 1 GB

AMD LX800 + CS5536AD

Phoenix-Award

1 x CompactFlash™ type-II

255 levels, 1~255 sec.

1 x PCI for 32-bit PCI supports 2 bus masters

1 x MiniPCI

Lithium 3V/220 mAH

AMD LX800, 1GB DDR

Max. RMS: +5V_SBY @ 0.07A, +3.3V @ NA, +5V @ 1.255A,

+12V @ 0.046A, -12V @ NA

170 x 170 mm

1.6 mm

0° ~ +60°C (32°F ~ 140°F), operation

10% ~ 95% relative humidity, non-condensing

Display

Chipset

Memory Size

Display Interface

AMD LX intergrated

Max. up to 254 MB

1 x VGA

1 x LCD interface for TTL (Max up to 24-bit) or

LVDS (18/24-bit single channel)

Slot

CPU

Cards

Accessories

Packing List

Standard

Quick installation guide, user's manual/utility CD, cable

Cable

Part Number

59380402010E

593836A0010E

Appendix

Size

Board Thickness

Temperature

Relative Humidity

Description

COM port cable w/ bracket

40-40-40 IDE cable L=310+155mm

Qty

I/O

MIO

1 x IDE; PATA-100

1 x FDD

1 x PS/2 keyboard

1 x PS/2 mouse

3 x RS-232 (COM 2/3/4); with +5V/+12V powered

1 x RS-232/422/485 (COM 1); with +5V/+12V powered

1 x LPT; with SPP/EPP/ECP supported

N/A

Detect CPU/system temperature and voltage

2 ports as 10/100Mbps support Wake-on-LAN, RPL/PXE

Boot ROM with Realtek RTL8100C

AC'97 Codec audio as MIC-in/Line-out/Speaker-out

with Realtek ALC203

4 x USB 2.0

System Management Bus for advanced

monitoring/control interface

8 channels IN/OUT programmable

Ordering Information

Standard

SBC86620VEEA -500

(P/N: E386620101)

Mini ITX SBC with AMD LX800 500 MHz CPU, VGA/LCD,

2 10/100Mbps Ethernet, AC 97 audio and 4 COM ports

SATA

Hardware Monitoring

Ethernet

Audio

USB

SMBus

Digital I/O

* All specifications and photos are subject to change without notice.
