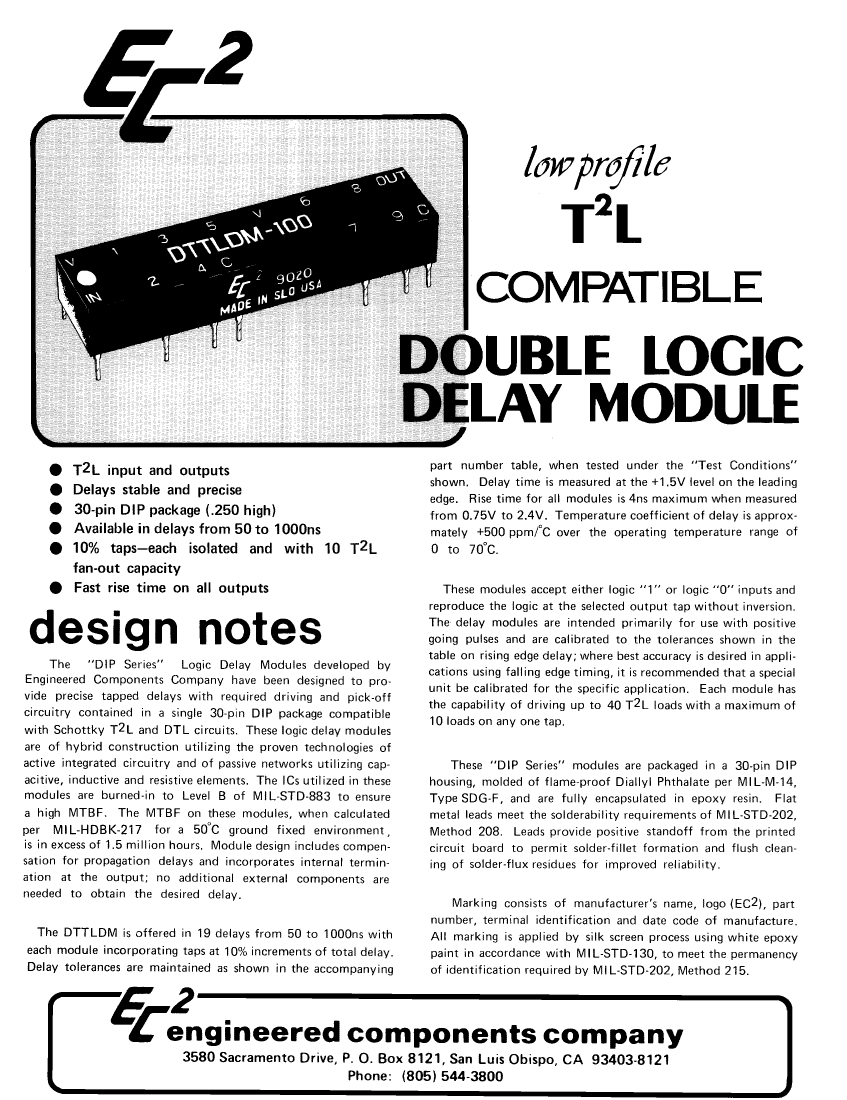

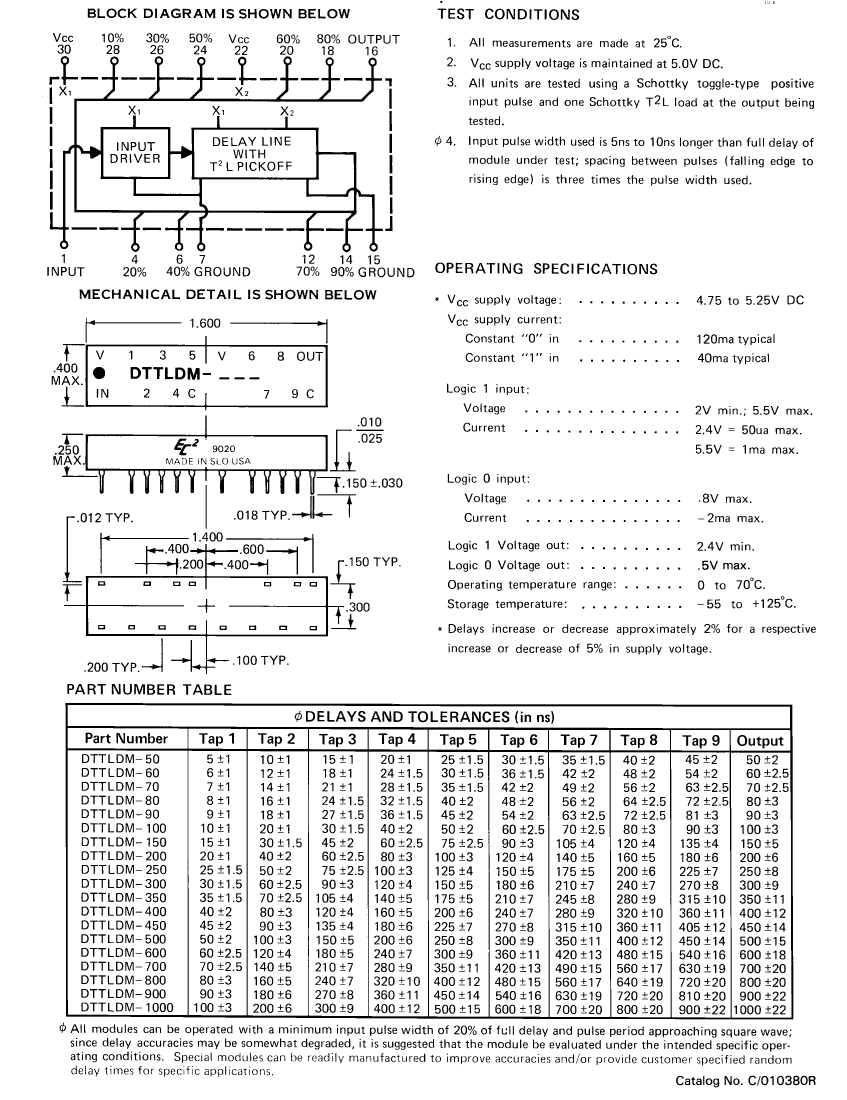

DTTLDM-400 datasheet, PDF - EEWORLD Datasheet

DTTLDM-400: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP15, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-30/15; Categorylogic logic; File Size262KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

DTTLDM-400 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, TTL, PDIP15, 0.250 INCH HEIGHT, PLASTIC, MODULE, DIP-30/15

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	DIP, DIP30,.3
Contacts	30/15
Reach Compliance Code	unknown
Other features	DOUBLE LOGIC DELAY MODULE; INTERNAL TERMINATION; MAX RISE TIME CAPTURED
series	TTL
JESD-30 code	R-PDIP-T15
JESD-609 code	e0
length	40.64 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	15
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP30,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	400 ns
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	400 ns
width	7.62 mm
