DIP-2025R datasheet, PDF - EEWORLD Datasheet

DIP-2025R: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, PDIP13, 0.250 INCH HEIGHT, PLASTIC, DIP-14/13; Categorylogic logic; File Size225KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

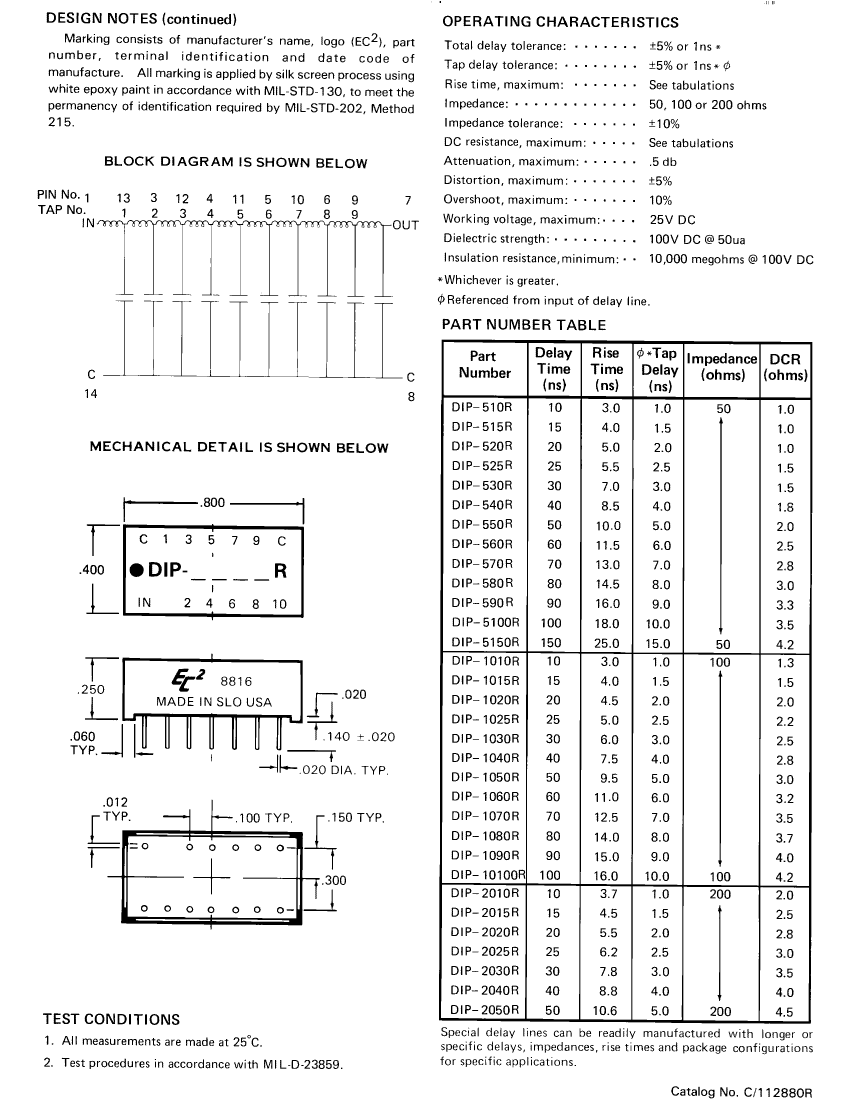

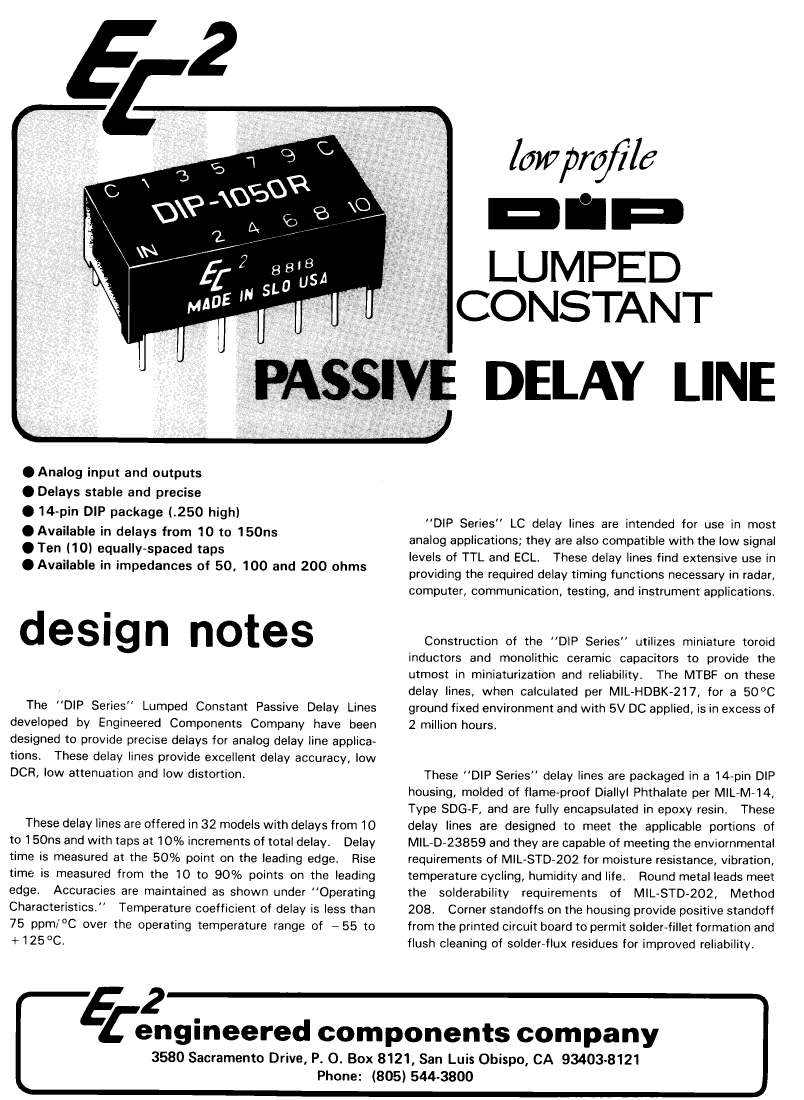

DIP-2025R Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP13, 0.250 INCH HEIGHT, PLASTIC, DIP-14/13

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	DIP
package instruction	DIP,
Contacts	14/13
Reach Compliance Code	unknown
Other features	MEETS MIL-D-23859; IMPEDANCE TOL. 10%; MAX DISTORTION 5%; MAX RISE TIME AND TEMP. COEFF. CAPTURED
JESD-30 code	R-PDIP-P13
length	20.32 mm
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	13
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	200 Ω
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
surface mount	NO
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	25 ns
width	7.62 mm
